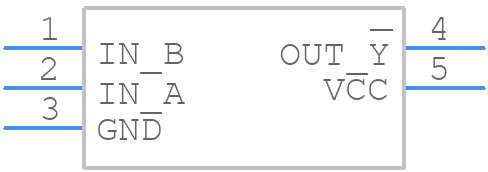

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74VHC1G08DFT2G by onsemi
Results Overview of MC74VHC1G08DFT2G by onsemi
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Audio and Video Systems
MC74VHC1G08DFT2G Information
MC74VHC1G08DFT2G by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74VHC1G08DFT2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08AK6361
|
Newark | Single 2-Input And Gate/ Reel |Onsemi MC74VHC1G08DFT2G RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6207 |
|
$0.0330 | Buy Now |
|
DISTI #
81Y6707
|
Newark | Logic, And, Single, Sot-353-5, Logic Function:And Gate, No. Of Elements:Single, No. Of Inputs:2Inputs, No. Of Pins:5Pins, Ic Case/Package:Sot-353, Product Range:74Vhc1G08, Logic Ic Family:74Vhc, Supply Voltage Min:2V Rohs Compliant: Yes |Onsemi MC74VHC1G08DFT2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 656 |
|
$0.0280 | Buy Now |
|
DISTI #
67H6752
|
Newark | Single And Gate, 2I/P, Sot-353-5, Full Reel, No. Of Inputs:2Inputs, No. Of Pins:5Pins, Ic Case/Package:Sot-353, Product Range:-, Logic Ic Family:74Vhc, Supply Voltage Min:2V, Supply Voltage Max:5.5V, Output Current:8Ma, Msl:- Rohs Compliant: Yes |Onsemi MC74VHC1G08DFT2G RoHS: Compliant Min Qty: 9000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0260 / $0.0360 | Buy Now |
|
DISTI #
MC74VHC1G08DFT2GOSCT-ND
|
DigiKey | IC GATE AND 1CH 2-INP SC88A Min Qty: 1 Lead time: 5 Weeks Container: Cut Tape (CT), Digi-ReelĀ®, Tape & Reel (TR) |
8775 In Stock |
|
$0.0292 / $0.1000 | Buy Now |
|
DISTI #
08AK6361
|
Avnet Americas | AND Gate, Single, 2 Input, 5 Pins, SC-88A, MC74VHC1G08 - Product that comes on tape, but is not reeled (Alt: 08AK6361) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 35 Weeks, 5 Days Container: Ammo Pack | 6207 Partner Stock |
|
$0.0640 / $0.1390 | Buy Now |
|
DISTI #
81Y6707
|
Avnet Americas | AND Gate, Single, 2 Input, 5 Pins, SC-88A, MC74VHC1G08 - Product that comes on tape, but is not reeled (Alt: 81Y6707) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 5 Days Container: Ammo Pack | 656 Partner Stock |
|
$0.0830 / $0.3240 | Buy Now |
|
DISTI #
863-MC74VHC1G08DFT2G
|
Mouser Electronics | Logic Gates 2-5.5V Single AND 2-Input RoHS: Compliant | 11262 |
|
$0.0280 / $0.2500 | Buy Now |
|
DISTI #
V36:1790_07296440
|
Arrow Electronics | AND Gate 1-Element 2-IN CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks Date Code: 2415 | Americas - 21000 |
|
$0.0202 | Buy Now |
|
DISTI #
E02:0323_00075888
|
Arrow Electronics | AND Gate 1-Element 2-IN CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks Date Code: 2513 | Europe - 12000 |
|
$0.0218 / $0.0246 | Buy Now |
|
DISTI #
V72:2272_07296440
|
Arrow Electronics | AND Gate 1-Element 2-IN CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2225 Container: Cut Strips | Americas - 5450 |
|
$0.0311 / $0.0570 | Buy Now |
Part Details for MC74VHC1G08DFT2G
MC74VHC1G08DFT2G CAD Models
MC74VHC1G08DFT2G Part Data Attributes
|
|
MC74VHC1G08DFT2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74VHC1G08DFT2G
onsemi
Single 2-Input AND Gate, SC-88A (SC-70-5 / SOT-353), 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88A (SC-70-5 / SOT-353) | |
| Pin Count | 5 | |
| Manufacturer Package Code | 419A-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 35 Weeks, 5 Days | |
| Samacsys Manufacturer | onsemi | |
| Family | AHC/VHC | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | AND GATE | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 50 mA | |
| Prop. Delay@Nom-Sup | 11 ns | |
| Propagation Delay (tpd) | 16.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.25 mm |
Alternate Parts for MC74VHC1G08DFT2G
This table gives cross-reference parts and alternative options found for MC74VHC1G08DFT2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74VHC1G08DFT2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74AHC1G08DCKRG4 | Texas Instruments | $0.0520 | 1-ch, 2-input 2-V to 5.5-V high-speed (9 ns) AND gate 5-SC70 -55 to 125 | MC74VHC1G08DFT2G vs SN74AHC1G08DCKRG4 |
| XC74UL08AAN | Torex Semiconductor LTD | Check for Price | AND Gate, CMOS, PDSO6, | MC74VHC1G08DFT2G vs XC74UL08AAN |
| TC7SH08FU(TE85L,F) | Toshiba America Electronic Components | Check for Price | IC LV/LV-A/LVX/H SERIES, 2-INPUT AND GATE, PDSO5, 0.65 MM PITCH, PLASTIC, SSOP-5, Gate | MC74VHC1G08DFT2G vs TC7SH08FU(TE85L,F) |
| MC74VHC1G08DFT4 | LRC Leshan Radio Co Ltd | Check for Price | AND Gate, CMOS, PDSO6 | MC74VHC1G08DFT2G vs MC74VHC1G08DFT4 |
| SN74AHC1G08DCKRE4 | Texas Instruments | Check for Price | 1-ch, 2-input 2-V to 5.5-V high-speed (9 ns) AND gate 5-SC70 -55 to 125 | MC74VHC1G08DFT2G vs SN74AHC1G08DCKRE4 |
| 74AHC1G08GW,165 | Nexperia | Check for Price | 74AHC1G08; 74AHCT1G08 - 2-input AND gate@en-us TSSOP 5-Pin | MC74VHC1G08DFT2G vs 74AHC1G08GW,165 |
MC74VHC1G08DFT2G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74VHC1G08DFT2G is 2.0V to 5.5V.
-
To prevent damage, ensure that the input signals are applied after the power supply has reached a stable state, and that the output is not loaded during power-up or power-down.
-
The maximum frequency of operation for the MC74VHC1G08DFT2G is 100 MHz.
-
Use ESD protection devices, such as TVS diodes, to protect the MC74VHC1G08DFT2G from electrostatic discharge. Follow proper handling and storage procedures to prevent ESD damage.
-
The thermal resistance (RĪøJA) of the MC74VHC1G08DFT2G is 250Ā°C/W.
