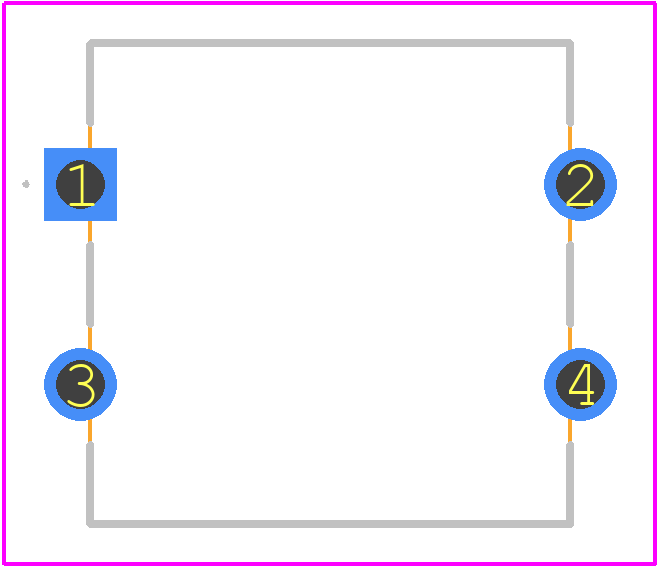

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC32872 by SPC Multicomp
Results Overview of MC32872 by SPC Multicomp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC32872 Information
MC32872 by SPC Multicomp is a Special Switch.
Special Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MC32872
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67P3651
|
Newark | Switch, Tactile, Spst-No, 50Ma, Though Hole, Product Range:Mcdts-2 Series, Actuator Orientation:Top Actuated, Switch Mounting:Through Hole, Actuator Style:Round Button, Actuating Force:160Gf, Contact Rating:50Ma At 12Vdc, Ip Rating:-Rohs Compliant: Yes |Multicomp Pro MC32872 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 516 |
|
$0.1570 | Buy Now |
|
DISTI #
32397576
|
Verical | Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Min Qty: 319 Package Multiple: 1 | Americas - 506 |
|
$0.2372 / $0.2461 | Buy Now |
Part Details for MC32872
MC32872 CAD Models
MC32872 Part Data Attributes
|
|
MC32872
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MC32872
SPC Multicomp
Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Actuator Color | BROWN | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 12 mm | |
| Body Color | BLACK | |
| Body Height | 3.5 mm | |
| Body Length or Diameter | 12 mm | |
| Center Contact Material | STAINLESS STEEL | |
| Center Contact Plating | SILVER | |
| Circuit Configuration | 1X1 | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | 0.05A@12VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 1000000 Cycle(s) | |
| End Contact Material | STAINLESS STEEL | |
| End Contact Plating | SILVER | |
| Housing Material | STAINLESS STEEL | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYAMIDE | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Switches | 1 | |
| Operating Force-Max | 1.56 N | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| PCB Hole Count | 4 | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Terminal Length | 0.138 inch | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
