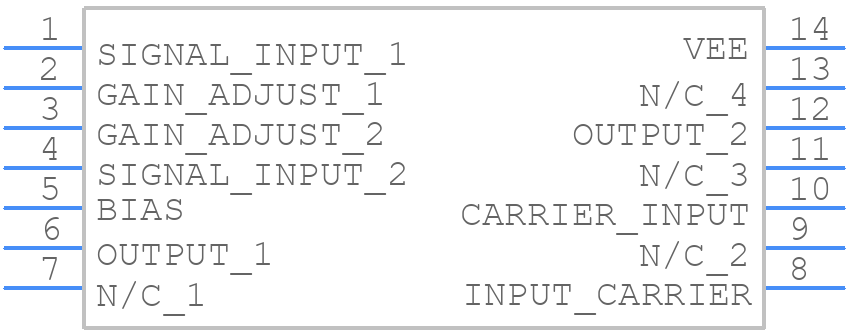

Part Symbol
-

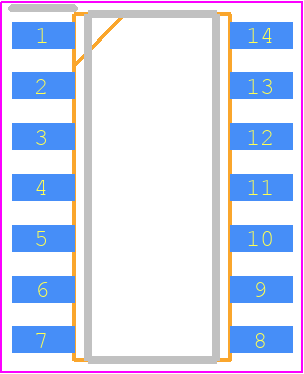

Footprint
-

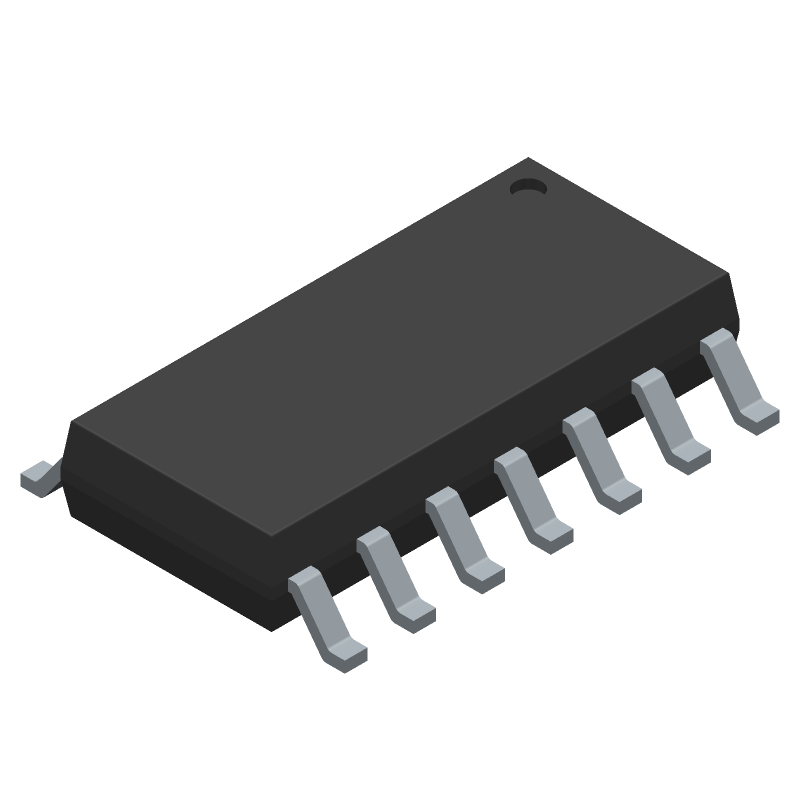

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC1496BDG by onsemi
Results Overview of MC1496BDG by onsemi
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Audio and Video Systems
Telecommunications
Entertainment and Gaming
Price & Stock for MC1496BDG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | General Purpose ICs | 1648 |
|
RFQ |
Part Details for MC1496BDG
MC1496BDG CAD Models
MC1496BDG Part Data Attributes
|
|
MC1496BDG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC1496BDG
onsemi
Balanced Modulator and Demodulator, SOIC-14 NB, 55-TUBE
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-14 NB | |
| Package Description | SOIC-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | 751A-03 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Consumer IC Type | CONSUMER CIRCUIT | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 9 mA | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 12 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3.9 mm |
Alternate Parts for MC1496BDG
This table gives cross-reference parts and alternative options found for MC1496BDG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC1496BDG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC1496DR2G | onsemi | $0.4141 | Balanced Modulator and Demodulator, SOIC-14 NB, 2500-REEL | MC1496BDG vs MC1496DR2G |
| MC1496DR2 | onsemi | Check for Price | Balanced Modulator and Demodulator, SOIC-14 NB, 2500-REEL | MC1496BDG vs MC1496DR2 |
| MC1496D | onsemi | Check for Price | Balanced Modulator and Demodulator, SOIC-14 NB, 55-TUBE | MC1496BDG vs MC1496D |
MC1496BDG Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC1496BDG is 5V to 15V, with a typical voltage of 12V.
-
To ensure stability, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and add a resistor in series with the input capacitor to prevent oscillations.
-
The maximum power dissipation of the MC1496BDG is 1.5W, and it's essential to ensure proper heat sinking to prevent overheating.
-
Yes, the MC1496BDG can be used as a unity gain amplifier, but it's essential to ensure that the input impedance is matched to the source impedance to prevent signal attenuation.
-
To reduce noise, use a low-noise power supply, add a noise filter capacitor between the power supply pins, and ensure proper grounding and shielding of the circuit.
