Part Details for MC100EP196FAG by onsemi

Results Overview of MC100EP196FAG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation Financial Technology (Fintech) Telecommunications

MC100EP196FAG Information

MC100EP196FAG by onsemi is a Delay Line.
Delay Lines are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for MC100EP196FAG

Part # Distributor Description Stock Price Buy
DISTI # 88H4711
Newark Programmable Delay Chip 1024Tap 12.4Ns Lqfp32, No. Of Taps:1024, Delay Time Per Tap:2.4Ns, Total Delay Time:12.4Ns, Supply Voltage Min:3V, Supply Voltage Max:3.6V, Digital Ic Case:Lqfp, No. Of Pins:32Pins, Product Range:- Rohs Compliant: Yes |Onsemi MC100EP196FAG RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $9.0000
$9.0000 Buy Now
DISTI # MC100EP196FAGOS-ND
DigiKey IC DELAY LN 1024TAP PROG 32LQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray Temporarily Out of Stock
  • 1 $15.2200
  • 10 $12.0410
  • 25 $11.2464
  • 100 $10.3730
  • 250 $9.9566
  • 500 $9.7058
  • 1,000 $9.4993
$9.4993 / $15.2200 Buy Now
DISTI # MC100EP196FAG
Avnet Americas Delay Line IC, Programmable, 1024 Taps, 10 ps Delay/One Tap, 12.4 ns Total Delay, 3 V to 3.6 V, 32 Pins, LQFP - Trays (Alt: MC100EP196FAG) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 18 Weeks, 0 Days Container: Tray 7250 Factory Stock
  • 250 $9.4595
  • 500 $9.2105
  • 1,000 $9.0909
  • 1,500 $8.9744
  • 2,000 $8.6420
$8.6420 / $9.4595 Buy Now
DISTI # 863-MC100EP196FAG
Mouser Electronics Delay Lines / Timing Elements 3.3V/5V ECL Programmable Delay RoHS: Compliant 397
  • 1 $16.8900
  • 10 $13.6500
  • 25 $13.0900
  • 50 $13.0800
  • 100 $11.5300
  • 250 $9.8200
  • 500 $9.5500
$9.5500 / $16.8900 Buy Now
Onlinecomponents.com 3.3 V ECL Programmable Delay Chip RoHS: Compliant 0
  • 63 $18.0600
  • 125 $11.2000
  • 188 $8.8400
  • 250 $8.6700
$8.6700 / $18.0600 Buy Now
DISTI # 87651191
Verical Active Programmable Delay Line 1-IN 0.01ns ABS 12.4ns MAX 32-Pin LQFP Tray RoHS: Compliant Min Qty: 250 Package Multiple: 250 Americas - 7250
  • 250 $8.8050
$8.8050 Buy Now
Rochester Electronics Active Delay Line, Programmable, 1-Func, 1023-Tap, Complementary Output, ECL, PQFP32 RoHS: Compliant Status: Active Min Qty: 1 25
  • 25 $9.1900
  • 100 $8.7300
  • 500 $8.2700
  • 1,000 $7.8100
  • 10,000 $7.3500
$7.3500 / $9.1900 Buy Now
DISTI # MC100EP196FAG
Avnet Silica Delay Line IC Programmable 1024 Taps 10 ps DelayOne Tap 124 ns Total Delay 3 V to 36 V 32 Pins LQFP (Alt: MC100EP196FAG) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 19 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MC100EP196FAG
EBV Elektronik Delay Line IC Programmable 1024 Taps 10 ps DelayOne Tap 124 ns Total Delay 3 V to 36 V 32 Pins LQFP (Alt: MC100EP196FAG) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 20 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock 8500
RFQ

Part Details for MC100EP196FAG

MC100EP196FAG CAD Models

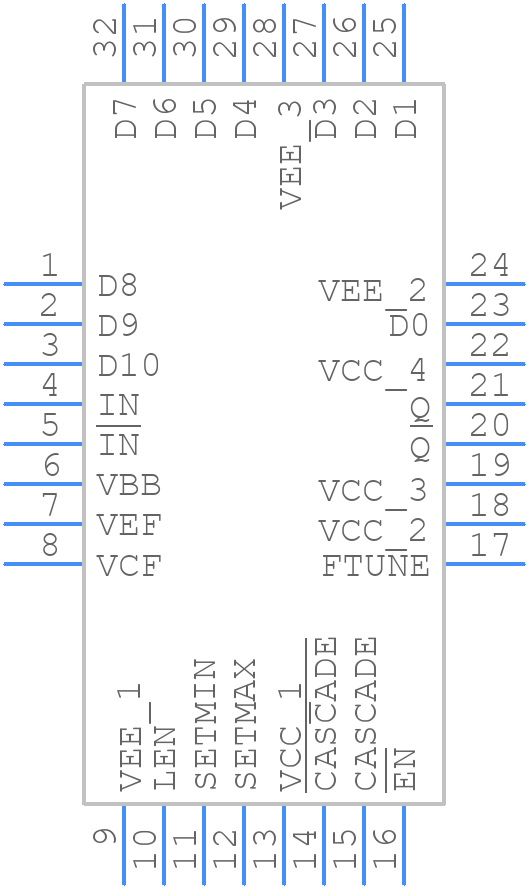

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

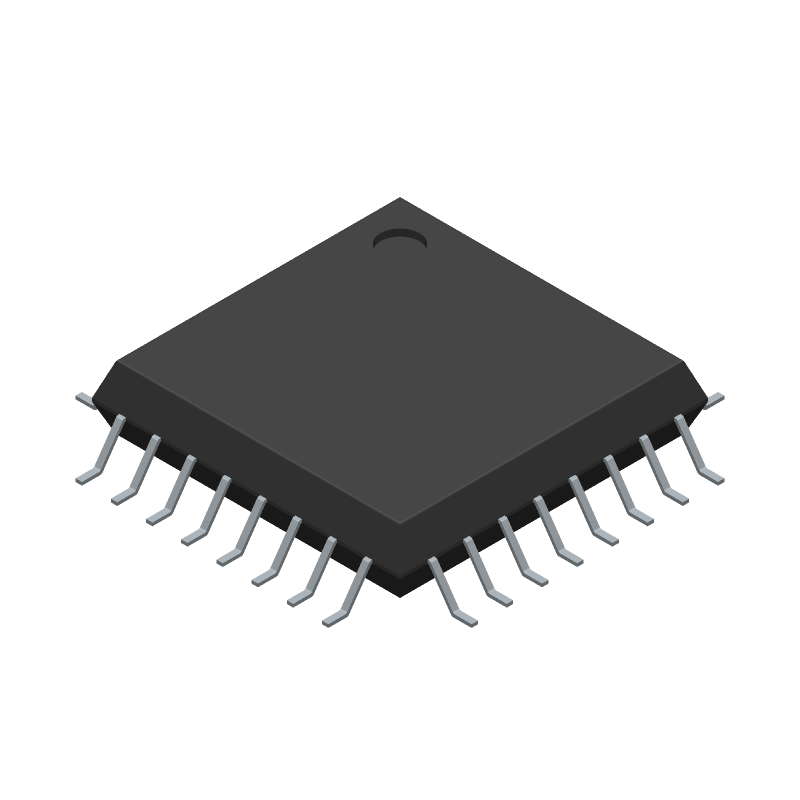

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC100EP196FAG Part Data Attributes

Parametric Data
MC100EP196FAG onsemi
Buy Now Datasheet
Compare Parts:
MC100EP196FAG onsemi 3.3 V ECL Programmable Delay Chip, 32 LEAD LQFP 7x7, 0.8P, 250-JTRAY
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code 32 LEAD LQFP 7x7, 0.8P
Package Description LQFP-32
Pin Count 32
Manufacturer Package Code 561AB
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 18 Weeks
Samacsys Manufacturer onsemi
Additional Feature NECL MODE: VCC=0 WITH VEE=-3.0 V TO -3.6 V
Family 100E
JESD-30 Code S-PQFP-G32
JESD-609 Code e3
Length 7 mm
Logic IC Type ACTIVE DELAY LINE
Moisture Sensitivity Level 2
Number of Functions 1
Number of Taps/Steps 1023
Number of Terminals 32
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK
Peak Reflow Temperature (Cel) 260
Programmable Delay Line YES
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology ECL
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Total Delay-Nom (td) 12.2 ns
Width 7 mm
