Capacitors / Fixed Capacitors / MC0805N8R0D500CT
Datasheets
MC0805N8R0D500CT by: SPC Multicomp

Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0805, CHIP

Part Details for MC0805N8R0D500CT by SPC Multicomp

Results Overview of MC0805N8R0D500CT by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC0805N8R0D500CT Information

MC0805N8R0D500CT by SPC Multicomp is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for MC0805N8R0D500CT

Part # Distributor Description Stock Price Buy
DISTI # 33R0539
Newark Smd Multilayer Ceramic Capacitor, Mc Series, 8 Pf, 0.5Pf, C0G/Np0, 50 V, 0805 [2012 Metric] Rohs Compliant: Yes |Multicomp Pro MC0805N8R0D500CT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 6985
  • 1 $0.0020
  • 250 $0.0020
  • 500 $0.0020
  • 1,000 $0.0020
  • 5,000 $0.0020
$0.0020 Buy Now
DISTI # 03AC3283
Newark Cap, 8Pf, 50V, C0G/Np0, 0805, Reel, Capacitance:8Pf, Voltage Rating:50V, Ceramic Capacitor Case:0805 [2012 Metric], Capacitance Tolerance:± 0.5Pf, Dielectric Characteristic:C0G/Np0, Product Range:Mc Series, Operating Temperature Rohs Compliant: Yes |Multicomp Pro MC0805N8R0D500CT RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel 4000
  • 1,000 $0.0130
  • 5,000 $0.0120
$0.0120 / $0.0130 Buy Now

Part Details for MC0805N8R0D500CT

MC0805N8R0D500CT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

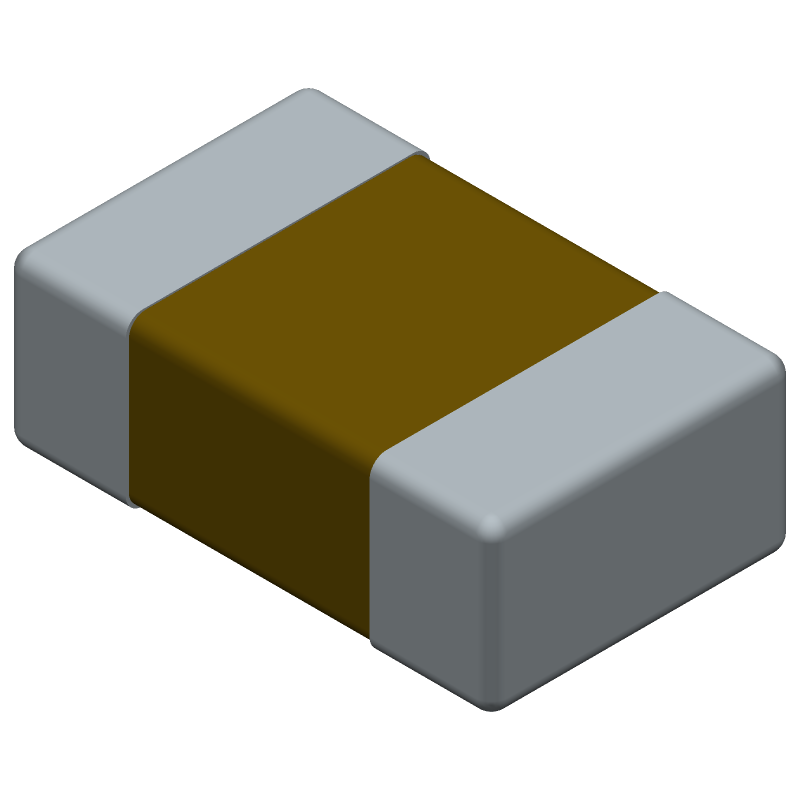

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC0805N8R0D500CT Part Data Attributes

Parametric Data
MC0805N8R0D500CT SPC Multicomp
Buy Now Datasheet
Compare Parts:
MC0805N8R0D500CT SPC Multicomp Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0805, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Package Description CHIP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer Multicomp Pro
Capacitance 0.000008 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.6 mm
JESD-609 Code e3
Length 2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 6.25%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 6.25%
Rated (DC) Voltage (URdc) 50 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for MC0805N8R0D500CT

This table gives cross-reference parts and alternative options found for MC0805N8R0D500CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC0805N8R0D500CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CS2012COG080D500NBA Samwha Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, -/+30ppm/Cel TC, 0.000008uF, 0805, MC0805N8R0D500CT vs CS2012COG080D500NBA
MA0805CG8R0D500 MERITEK Electronics Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0805, CHIP MC0805N8R0D500CT vs MA0805CG8R0D500
GRM2165C1H8R0DD01J Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT MC0805N8R0D500CT vs GRM2165C1H8R0DD01J
ECUV1H080DCG Panasonic Electronic Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, NP0, -/+30ppm/Cel;-82/+22% TC, 0.000008uF, 0805 MC0805N8R0D500CT vs ECUV1H080DCG
GRM2165C1H8R0DZ01D Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0805, CHIP MC0805N8R0D500CT vs GRM2165C1H8R0DZ01D
GRM2165C1H8R0DD01D Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT MC0805N8R0D500CT vs GRM2165C1H8R0DD01D
GCM2165C1H8R0DZ13C Murata Manufacturing Co Ltd Check for Price CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.000008uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MC0805N8R0D500CT vs GCM2165C1H8R0DZ13C
GCM2165C1H8R0DZ13B Murata Manufacturing Co Ltd Check for Price CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.000008uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MC0805N8R0D500CT vs GCM2165C1H8R0DZ13B
0805N8R0D500CT Walsin Technology Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0805, CHIP MC0805N8R0D500CT vs 0805N8R0D500CT

MC0805N8R0D500CT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the MC0805N8R0D500CT capacitor is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the MC0805N8R0D500CT capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The maximum operating voltage derating for the MC0805N8R0D500CT capacitor is 80% of the rated voltage, which is 400V in this case.

  • The MC0805N8R0D500CT capacitor has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow the manufacturer's storage and handling guidelines to prevent moisture absorption.

  • The MC0805N8R0D500CT capacitor is lead-free and compliant with the RoHS (Restriction of Hazardous Substances) directive, making it suitable for use in environmentally friendly designs.
