Capacitors / Fixed Capacitors / MC0603N100J500CT
Datasheets
MC0603N100J500CT by: SPC Multicomp

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0603, CHIP

Part Details for MC0603N100J500CT by SPC Multicomp

Results Overview of MC0603N100J500CT by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC0603N100J500CT Information

MC0603N100J500CT by SPC Multicomp is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for MC0603N100J500CT

Part # Distributor Description Stock Price Buy
DISTI # 06X6190
Newark Smd Multilayer Ceramic Capacitor, Mc Series, 10 Pf, 5%, C0G/Np0, 50 V, 0603 [1608 Metric] Rohs Compliant: Yes |Multicomp Pro MC0603N100J500CT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 50000
  • 1 $0.0020
  • 10 $0.0020
  • 25 $0.0020
  • 100 $0.0020
  • 250 $0.0020
  • 500 $0.0020
  • 1,000 $0.0020
$0.0020 Buy Now
DISTI # 94W8758
Newark Smd Multilayer Ceramic Capacitor, Mc Series, 10 Pf, 5%, C0G/Np0, 50 V, 0603 [1608 Metric] Rohs Compliant: Yes |Multicomp Pro MC0603N100J500CT RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel 28000
  • 4,000 $0.0020
  • 8,000 $0.0020
  • 20,000 $0.0020
  • 40,000 $0.0020
$0.0020 Buy Now
DISTI # 90W2848
Newark Capacitor, Mlcc, 10Pf, 50V, Np0, 0603, Full Reel, Capacitance:10Pf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:-, Product Length:1.6Mm Rohs Compliant: Yes |Multicomp Pro MC0603N100J500CT RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel 8000
  • 4,000 $0.0020
  • 8,000 $0.0020
  • 20,000 $0.0020
  • 40,000 $0.0020
$0.0020 Buy Now
DISTI # 90W2847
Newark Capacitor, Mlcc, 10Pf, 50V, Np0, 0603, Capacitance:10Pf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:-, Product Length:1.6Mm Rohs Compliant: Yes |Multicomp Pro MC0603N100J500CT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1480
  • 1 $0.0020
  • 10 $0.0020
  • 50 $0.0020
  • 100 $0.0020
  • 250 $0.0020
  • 500 $0.0020
  • 1,000 $0.0020
$0.0020 Buy Now
DISTI # 57959937
Verical Cap Ceramic 10pF 50V C0G 5% Pad SMD 0603 125C T/R Min Qty: 25000 Package Multiple: 1 Americas - 50000
  • 25,000 $0.0026
$0.0026 Buy Now
DISTI # 56527933
Verical Cap Ceramic 10pF 50V C0G 5% Pad SMD 0603 125C T/R Min Qty: 28000 Package Multiple: 4000 Americas - 28000
  • 28,000 $0.0034
$0.0034 Buy Now

Part Details for MC0603N100J500CT

MC0603N100J500CT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

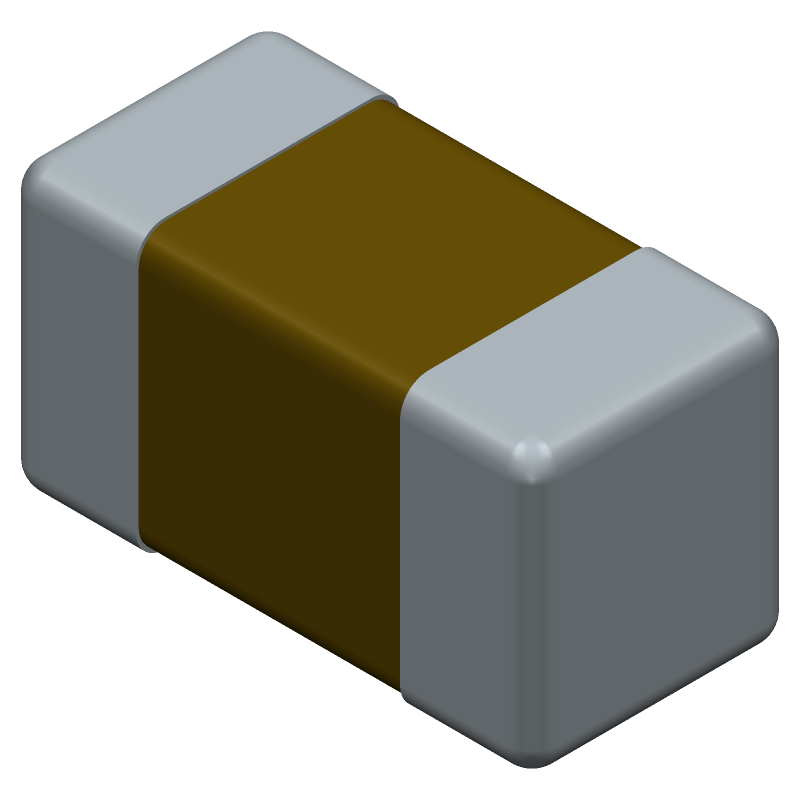

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC0603N100J500CT Part Data Attributes

Parametric Data
MC0603N100J500CT SPC Multicomp
Buy Now Datasheet
Compare Parts:
MC0603N100J500CT SPC Multicomp Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0603, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Package Description CHIP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer Multicomp Pro
Capacitance 0.00001 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for MC0603N100J500CT

This table gives cross-reference parts and alternative options found for MC0603N100J500CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC0603N100J500CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C0603C100D5GACTU KEMET Corporation $0.0606 Capacitor, Ceramic, Chip, General Purpose, 10pF, 50V, ±0.5pF, C0G/NP0, 0603 (1608 mm), -55º ~ +125ºC, 7" Reel/Unmarked MC0603N100J500CT vs C0603C100D5GACTU
C0603C100J5GALTU KEMET Corporation $0.1305 Ceramic Capacitor, Multilayer, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.00001uF, 0603 MC0603N100J500CT vs C0603C100J5GALTU
C0603T100D5GAC3325 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0603, MC0603N100J500CT vs C0603T100D5GAC3325
C0603C100D5GAL7013 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0603, MC0603N100J500CT vs C0603C100D5GAL7013
CL10C100DB8GNS Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0603, MC0603N100J500CT vs CL10C100DB8GNS
C0603COG500-100JSN6R VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0603, MC0603N100J500CT vs C0603COG500-100JSN6R
CL10C100DB8ANL Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0603, MC0603N100J500CT vs CL10C100DB8ANL
0603H0500100JFR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0603, CHIP MC0603N100J500CT vs 0603H0500100JFR
GRM1885C1H100JD01J Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT MC0603N100J500CT vs GRM1885C1H100JD01J
MG18N100J500CT Walsin Technology Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0603, CHIP MC0603N100J500CT vs MG18N100J500CT

MC0603N100J500CT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the MC0603N100J500CT is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the MC0603N100J500CT is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The MC0603N100J500CT is rated for operation up to 125°C, but it's not recommended for use in extreme high-temperature environments. Derating may be necessary for temperatures above 85°C.

  • Yes, the MC0603N100J500CT is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.

  • The recommended land pattern for the MC0603N100J500CT is a rectangular pad with a minimum size of 1.5 mm x 0.8 mm, with a non-solder mask defined (NSMD) pad shape.
