Capacitors / Ceramic Capacitors / MC0603B822K500CT
Datasheets
MC0603B822K500CT by: SPC Multicomp

CAP,CERAMIC,8.2NF,50VDC,10% -TOL,10% +TOL,X7R TC CODE,-15,15% TC,0603 CASE

Part Details for MC0603B822K500CT by SPC Multicomp

Results Overview of MC0603B822K500CT by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

MC0603B822K500CT Information

MC0603B822K500CT by SPC Multicomp is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for MC0603B822K500CT

Part # Distributor Description Stock Price Buy
DISTI # 03AC3180
Newark Cap, Mlcc, X7R, 8200Pf, 50V, 0603, Reel, Capacitance:8200Pf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:1.6Mm Rohs Compliant: Yes |Multicomp Pro MC0603B822K500CT RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 12000
  • 4,000 $0.0020
  • 8,000 $0.0020
  • 20,000 $0.0020
  • 40,000 $0.0020
$0.0020 Buy Now
DISTI # 33R0461
Newark Cap, Mlcc, X7R, 8200Pf, 50V, 0603, Reel, Capacitance:8200Pf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:1.6Mm Rohs Compliant: Yes |Multicomp Pro MC0603B822K500CT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 11275
  • 1 $0.0010
  • 10 $0.0010
  • 25 $0.0010
  • 100 $0.0010
  • 250 $0.0010
  • 500 $0.0010
  • 1,000 $0.0010
$0.0010 Buy Now

Part Details for MC0603B822K500CT

MC0603B822K500CT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

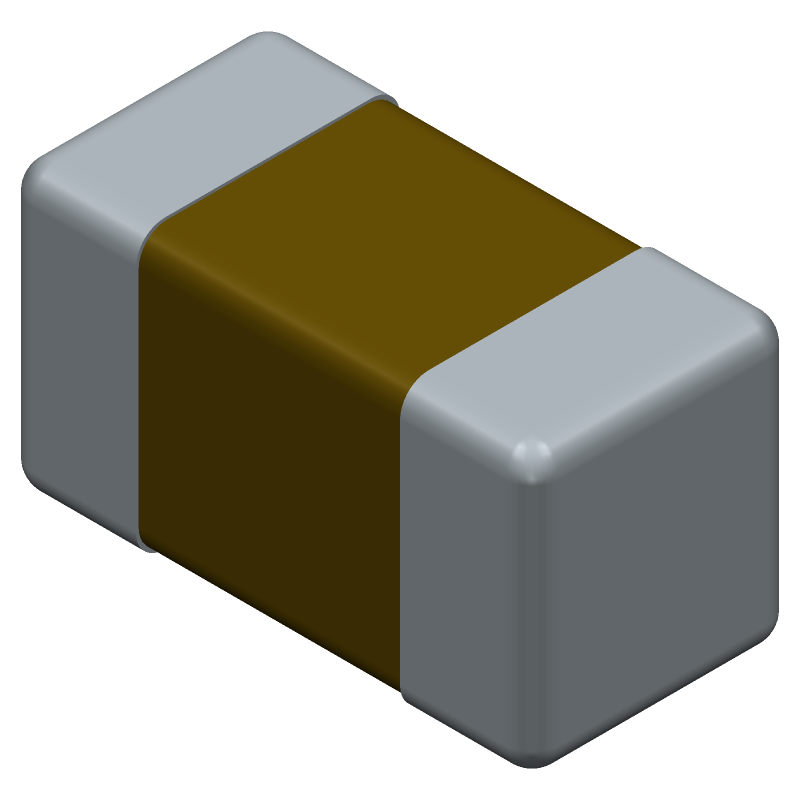

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC0603B822K500CT Part Data Attributes

Parametric Data
MC0603B822K500CT SPC Multicomp
Buy Now Datasheet
Compare Parts:
MC0603B822K500CT SPC Multicomp CAP,CERAMIC,8.2NF,50VDC,10% -TOL,10% +TOL,X7R TC CODE,-15,15% TC,0603 CASE
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Reach Compliance Code unknown
ECCN Code EAR99
Samacsys Manufacturer Multicomp Pro
Capacitance 0.0082 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
JESD-609 Code e3
Length 1.6 mm
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Width 0.8 mm

Alternate Parts for MC0603B822K500CT

This table gives cross-reference parts and alternative options found for MC0603B822K500CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC0603B822K500CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CL10B822KBBP Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0082uF, 0603, MC0603B822K500CT vs CL10B822KBBP
CL10B822KBCL Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0082uF, 0603, MC0603B822K500CT vs CL10B822KBCL
0603Y822KAHVD04MLS SRT Micro Ceramique Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0082uF, Surface Mount, 0603, CHIP MC0603B822K500CT vs 0603Y822KAHVD04MLS
CL10B822KBCE Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0082uF, 0603, MC0603B822K500CT vs CL10B822KBCE
0603A0500822KDT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0082uF, Surface Mount, 0603, CHIP MC0603B822K500CT vs 0603A0500822KDT
CL10B822KBED Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0082uF, 0603, MC0603B822K500CT vs CL10B822KBED
0603H0500822KDR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0082uF, Surface Mount, 0603, CHIP MC0603B822K500CT vs 0603H0500822KDR
0603Y0500822KDT Syfer Technology Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0082uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT MC0603B822K500CT vs 0603Y0500822KDT
0603J0500822KDR Syfer Technology Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0082uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT MC0603B822K500CT vs 0603J0500822KDR
CL10B822KBAO Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0082uF, 0603, MC0603B822K500CT vs CL10B822KBAO

MC0603B822K500CT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the MC0603B822K500CT is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the MC0603B822K500CT is a high-frequency capacitor with a self-resonant frequency of around 10 MHz, making it suitable for high-frequency applications.

  • The maximum operating temperature range for the MC0603B822K500CT is -55°C to +125°C.

  • Yes, the MC0603B822K500CT is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.

  • The recommended storage conditions for the MC0603B822K500CT are in a dry, cool place with a temperature range of -20°C to +40°C and relative humidity of 60% or less.
