MBRS1540T3G Information
MBRS1540T3G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBRS1540T3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10N9420
|
Newark | Schottky Rectifier, 1.5A, 40V, 403A, Repetitive Peak Reverse Voltage:40V, Average Forward Current:1.5A, Diode Configuration:Single, Diode Case Style:Do-214Aa (Smb), No. Of Pins:2Pins, Forward Voltage Max:460Mv, Product Range:- Rohs Compliant: Yes |Onsemi MBRS1540T3G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1300 |
|
$0.1830 / $0.2160 | Buy Now |
|
DISTI #
98H0596
|
Newark | Schottky Rectifier, 1.5A, 40V, 403A, Full Reel, Repetitive Peak Reverse Voltage:40V, Average Forward Current:1.5A, Diode Configuration:Single, Diode Case Style:Do-214Aa (Smb), No. Of Pins:2Pins, Forward Voltage Max:460Mv Rohs Compliant: Yes |Onsemi MBRS1540T3G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1480 / $0.1500 | Buy Now |
|
DISTI #
MBRS1540T3GOSCT-ND
|
DigiKey | DIODE SCHOTTKY 40V 1.5A SMB Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
617 In Stock |
|
$0.1485 / $0.5600 | Buy Now |
|
DISTI #
MBRS1540T3G
|
Avnet Americas | Schottky Rectifier, 40 V, 1.5 A, Single, DO-214AA (SMB), 2 Pins, 460 mV - Tape and Reel (Alt: MBRS1540T3G) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.1533 / $0.1673 | Buy Now |
|
DISTI #
10N9420
|
Avnet Americas | Schottky Rectifier, 40 V, 1.5 A, Single, DO-214AA (SMB), 2 Pins, 460 mV - Product that comes on tape, but is not reeled (Alt: 10N9420) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 51 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.1980 / $0.3650 | Buy Now |
|
DISTI #
863-MBRS1540T3G
|
Mouser Electronics | Schottky Diodes & Rectifiers 1.5A 40V RoHS: Compliant | 9703 |
|
$0.1480 / $0.5500 | Buy Now |
|
DISTI #
V36:1790_07283596
|
Arrow Electronics | Diode Schottky 40V 1.5A 2-Pin SMB T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2352 | Americas - 50000 |
|
$0.1391 / $0.1441 | Buy Now |
|
DISTI #
E02:0323_00076887
|
Arrow Electronics | Diode Schottky 40V 1.5A 2-Pin SMB T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2429 | Europe - 2500 |
|
$0.1570 / $0.1627 | Buy Now |
|
DISTI #
70300409
|
RS | ON Semi MBRS1540T3G, SMT Schottky Diode, 40V 1.5A, 2-Pin DO-214AA Min Qty: 25 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4060 / $0.4770 | RFQ |
|
|
Future Electronics | MBRS Series 1.5 A 40 V Surface Mount Schottky Power Rectifier - DO-214AA RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Container: Reel | 67500Reel |
|
$0.1370 / $0.1430 | Buy Now |
Part Details for MBRS1540T3G

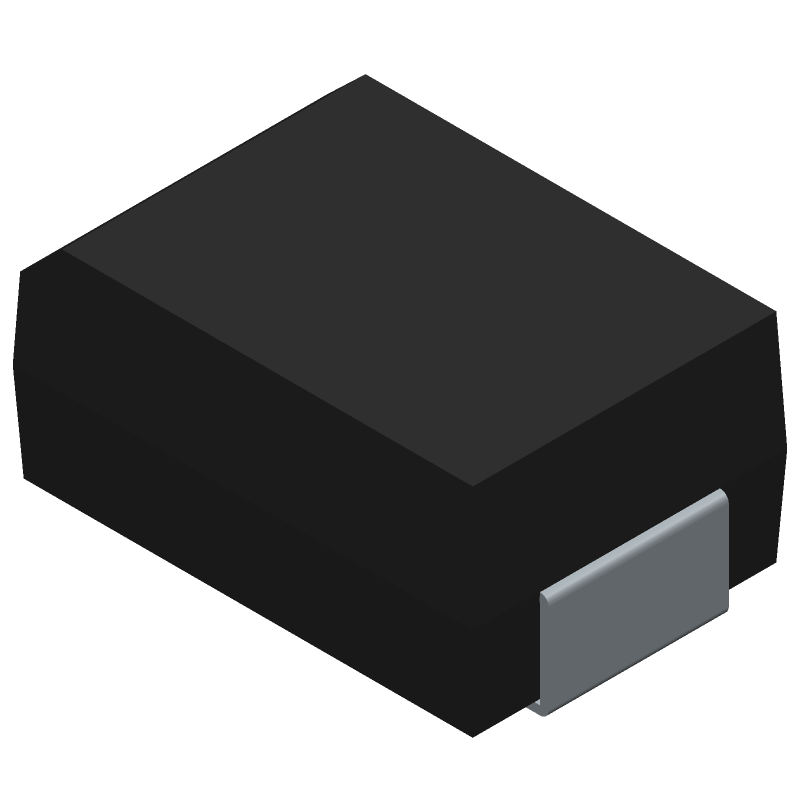

MBRS1540T3G CAD Models
MBRS1540T3G Part Data Attributes
|
|
MBRS1540T3G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MBRS1540T3G
onsemi
40 V, 1.5 A Schottky Rectifier, SMB, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SMB | |
| Package Description | SMB, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 403A-03 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 51 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | POWER | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.54 V | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 40 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MBRS1540T3G
This table gives cross-reference parts and alternative options found for MBRS1540T3G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBRS1540T3G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBRS1540T3 | onsemi | Check for Price | 40 V, 1.5 A Schottky Rectifier, SMB, 2500-REEL | MBRS1540T3G vs MBRS1540T3 |
