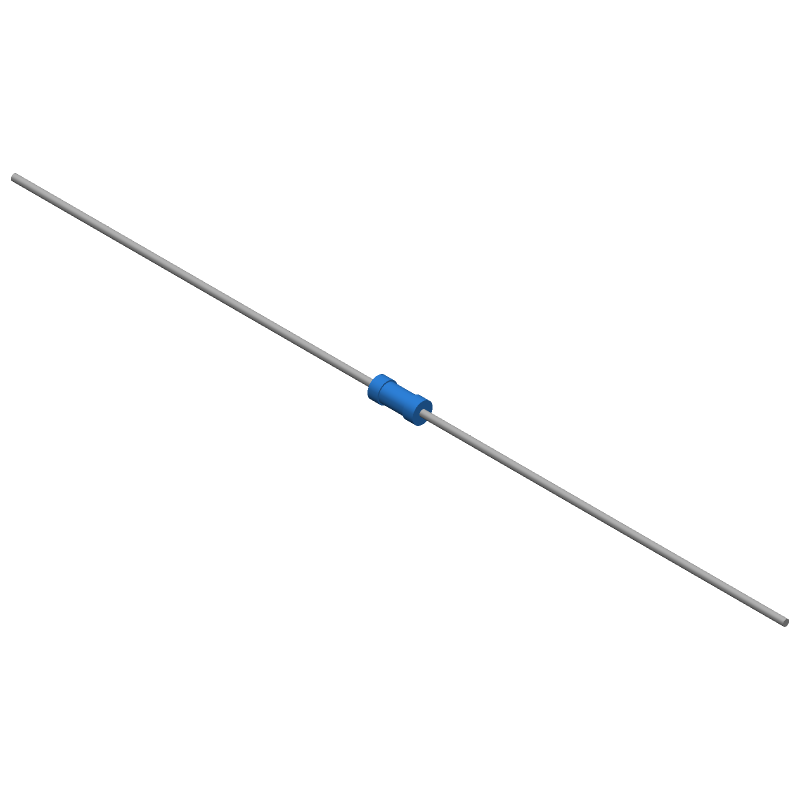

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBA02040C2801FRP00 by Vishay Intertechnologies
Results Overview of MBA02040C2801FRP00 by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
MBA02040C2801FRP00 Information
MBA02040C2801FRP00 by Vishay Intertechnologies is a Metal Alloy Resistor.
Metal Alloy Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MBA02040C2801FRP00
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94C3398
|
Newark | Metal Film Resistor, 2.8Kohm, 400Mw, 1%, Resistance:2.8Kohm, Product Range:Mba Series, Power Rating:400Mw, Resistance Tolerance:± 1%, Resistor Case/Package:Axial Leaded, Voltage Rating:200V, Resistor Technology:Metal Film Rohs Compliant: Yes |Vishay MBA02040C2801FRP00 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1290 |
|
$0.0190 | Buy Now |
|
DISTI #
94C3398
|
Avnet Americas | MBA/SMA 0204-50 1% RP 2K8 - Product that comes on tape, but is not reeled (Alt: 94C3398) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 4 Days Container: Ammo Pack | 1290 Partner Stock |
|
$0.0710 | Buy Now |
|
DISTI #
94C3398
|
Avnet Americas | MBA/SMA 0204-50 1% RP 2K8 - Product that comes on tape, but is not reeled (Alt: 94C3398) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 4 Days Container: Ammo Pack | 1290 Partner Stock |
|
$0.0710 | Buy Now |
|
DISTI #
MBA02040C2801FRP00
|
Avnet Americas | MBA/SMA 0204-50 1% RP 2K8 - Tape and Reel (Alt: MBA02040C2801FRP00) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 5 Weeks, 0 Days Container: Reel | 0 |
|
$0.0388 / $0.0420 | Buy Now |
|
DISTI #
MBA02040C2801FRP00
|
Avnet Americas | MBA/SMA 0204-50 1% RP 2K8 - Tape and Reel (Alt: MBA02040C2801FRP00) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 5 Weeks, 0 Days Container: Reel | 0 |
|
$0.0388 / $0.0420 | Buy Now |
|
DISTI #
594-5063JD2K800FT
|
Mouser Electronics | Metal Film Resistors - Through Hole .4watt 2.8Kohms 1% 1/8watt body size RoHS: Compliant | 9390 |
|
$0.0470 / $0.1000 | Buy Now |
Part Details for MBA02040C2801FRP00
MBA02040C2801FRP00 CAD Models
MBA02040C2801FRP00 Part Data Attributes
|
|
MBA02040C2801FRP00
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MBA02040C2801FRP00
Vishay Intertechnologies
Fixed Resistor, Metal Alloy, 0.4W, 2800ohm, 200V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, LEAD FREE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.90 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE (V):200 | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.5 mm | |
| Lead Length | 29 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 1.6 mm | |
| Package Length | 3.6 mm | |
| Package Style | Axial | |
| Packing Method | TR, 10 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 2800 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | METAL FILM | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | WIRE | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
MBA02040C2801FRP00 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
-
Yes, the MBA02040C2801FRP00 is designed for high-frequency applications up to 1 GHz, with a low inductance of 0.5 nH and a high self-resonant frequency.
-
The MSL of the MBA02040C2801FRP00 is 1, which means it can withstand a maximum of 30°C/60% RH for 168 hours without being sensitive to moisture.
-
Yes, the MBA02040C2801FRP00 is AEC-Q200 qualified, which means it meets the requirements for automotive applications, including high-reliability and high-temperature operation.
-
The typical power rating of the MBA02040C2801FRP00 at 70°C is 0.25 W, but it can be derated to 0.1 W at 125°C.
