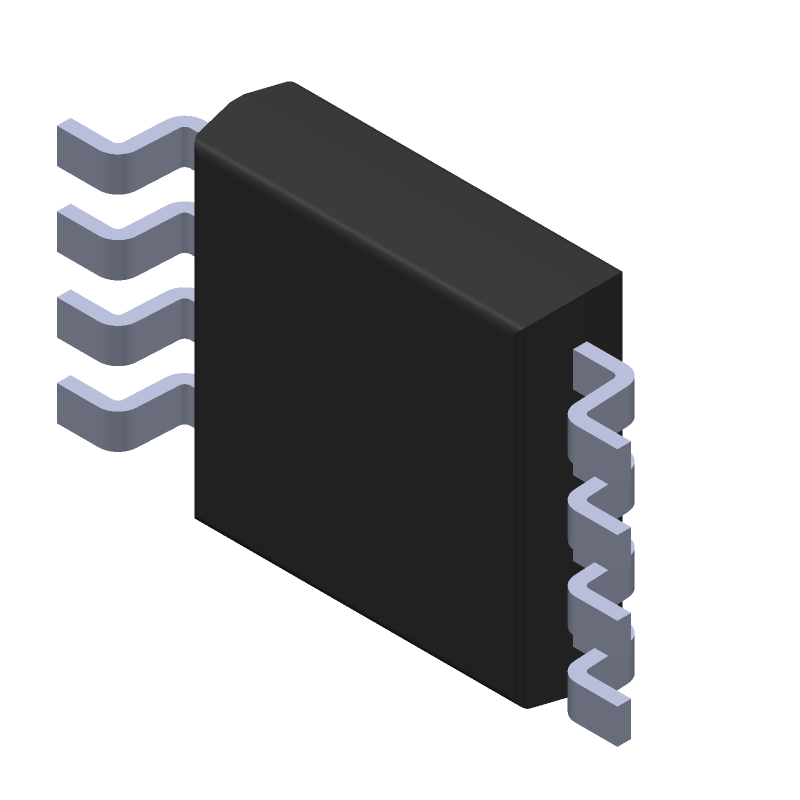

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX7408EUA+ by Analog Devices Inc
Results Overview of MAX7408EUA+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Financial Technology (Fintech)
Healthcare
Automotive
MAX7408EUA+ Information
MAX7408EUA+ by Analog Devices Inc is an Active Filter.
Active Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for MAX7408EUA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX7408EUA
|
Mouser Electronics | Active Filters 5th Order, Lowpass, Elliptic, Switched-C RoHS: Compliant | 117 |
|
$4.4300 / $6.9800 | Buy Now |
|
|
Analog Devices Inc | 5th Order, Lowpass, Elliptic, Package Multiple: 1 | 1555 |
|
$3.5500 / $6.9800 | Buy Now |
|
DISTI #
MAX7408EUA+
|
TME | Filter: digital, switched capacitor, active,lowpass, uMAX8, 15kHz Min Qty: 1 | 0 |
|
$4.4800 / $6.0500 | RFQ |
Part Details for MAX7408EUA+
MAX7408EUA+ CAD Models
MAX7408EUA+ Part Data Attributes
|
|
MAX7408EUA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX7408EUA+
Analog Devices Inc
5th Order, Lowpass, Elliptic, Switched-Capacitor Filters, 8-MINI_SO-N/A, 8 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-MINI_SO-N/A | |
| Package Description | UMAX-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-MINI_SO-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1998-10-15 | |
| Samacsys Manufacturer | Analog Devices | |
| Active Filter Type | SWITCHED CAPACITOR FILTER | |
| Center or Cutoff Freq Rng-Max | 15 kHz | |
| Center or Cutoff Freq Rng-Min | 0.001 kHz | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Order | 5TH | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Poles and Zeros | 5 AND 0 | |
| Qualification Status | Not Qualified | |
| Response | LOWPASS | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 1.5 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transfer Characteristics | ELLIPTIC | |
| Width | 3 mm |
Alternate Parts for MAX7408EUA+
This table gives cross-reference parts and alternative options found for MAX7408EUA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX7408EUA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX7408CUA | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 1 Func, Elliptic, Lowpass, CMOS, PDSO8, UMAX-8 | MAX7408EUA+ vs MAX7408CUA |
MAX7408EUA+ Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX7408EUA+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
The output filter components (R1, C1, R2, and C2) should be chosen based on the desired cutoff frequency and the output impedance of the device. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
-
The maximum input voltage that the MAX7408EUA+ can handle is 5.5V. Exceeding this voltage can cause damage to the device.
-
The MAX7408EUA+ should be powered up and powered down slowly to prevent damage to the device. A power-up ramp time of 1ms to 10ms and a power-down ramp time of 1ms to 10ms is recommended.
-
The typical settling time of the MAX7408EUA+ is around 100us to 200us, depending on the output voltage and the load capacitance.
