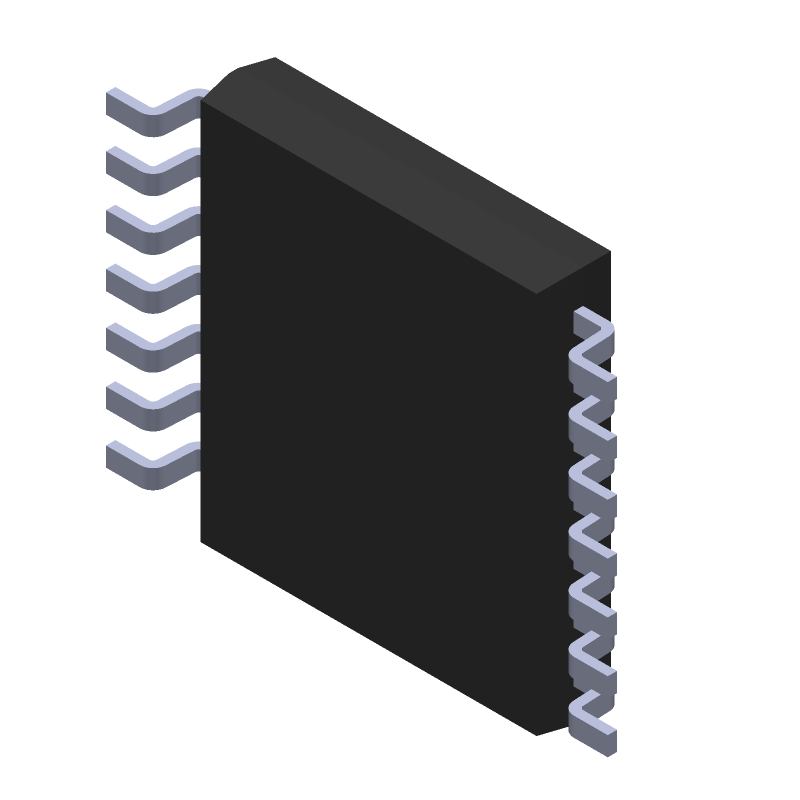

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX4395EUD+ by Analog Devices Inc
Results Overview of MAX4395EUD+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
MAX4395EUD+ Information
MAX4395EUD+ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MAX4395EUD+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX4395EUD
|
Mouser Electronics | High Speed Operational Amplifiers Ultra-Small, Low-Cost, 85MHz Op Amps wit RoHS: Compliant | 92 |
|
$2.2800 / $4.3000 | Buy Now |
|
|
Analog Devices Inc | Ultra-Small, Low-Cost, 85MHz O Package Multiple: 1 | 4197 |
|
$1.7300 / $4.3000 | Buy Now |
Part Details for MAX4395EUD+
MAX4395EUD+ CAD Models
MAX4395EUD+ Part Data Attributes
|
|
MAX4395EUD+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX4395EUD+
Analog Devices Inc
Ultra-Small, Low-Cost, 85MHz Op Amps with Rail-to-Rail Outputs and Disable, 14-TSSOP_4.4-4.4_MM, 14 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 14-TSSOP_4.4-4.4_MM | |
| Package Description | 4.40 MM, MO-153-AB-1, TSSOP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | 14-TSSOP_4.4-4.4_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2002-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for MAX4395EUD+
This table gives cross-reference parts and alternative options found for MAX4395EUD+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX4395EUD+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX4395EUD/V+ | Analog Devices Inc | Check for Price | Ultra-Small, Low-Cost, 85MHz Op Amps with Rail-to-Rail Outputs and Disable, 14-TSSOP_4.4-4.4_MM, 14 Pins, -40 to 85C | MAX4395EUD+ vs MAX4395EUD/V+ |
| MAX4395EUD/V+ | Maxim Integrated Products | Check for Price | Video Amplifier, | MAX4395EUD+ vs MAX4395EUD/V+ |
| MAX4395EUD/V+T | Maxim Integrated Products | Check for Price | Video Amplifier, 4 Channel(s), 1 Func, BICMOS, PDSO14, 4.40 MM, ROHS COMPLIANT, MO-153-AB-1, TSSOP-14 | MAX4395EUD+ vs MAX4395EUD/V+T |
| MAX4395EUD+T | Analog Devices Inc | Check for Price | Ultra-Small, Low-Cost, 85MHz Op Amps with Rail-to-Rail Outputs and Disable, 14-TSSOP_4.4-4.4_MM, 14 Pins, -40 to 85C | MAX4395EUD+ vs MAX4395EUD+T |
| MAX4395EUD/V+T | Analog Devices Inc | Check for Price | Ultra-Small, Low-Cost, 85MHz Op Amps with Rail-to-Rail Outputs and Disable, 14-TSSOP_4.4-4.4_MM, 14 Pins, -40 to 85C | MAX4395EUD+ vs MAX4395EUD/V+T |
| MAX4395EUD-T | Maxim Integrated Products | Check for Price | Video Amplifier, 4 Channel(s), 1 Func, BICMOS, PDSO14, 4.40 MM, MO-153-AB-1, TSSOP-14 | MAX4395EUD+ vs MAX4395EUD-T |
MAX4395EUD+ Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX4395EUD+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input and output capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
-
To ensure stability, make sure to follow the recommended component values and PCB layout. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be decoupled from the power supply using a 10uF capacitor. If oscillations occur, try adding a small series resistor (e.g., 10Ω) between the output and the load.
-
The MAX4395EUD+ can handle input voltages up to 36V, but it's recommended to keep the input voltage below 30V to ensure reliable operation and to prevent damage to the device.
-
The MAX4395EUD+ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Refer to the datasheet for more information on temperature derating.
-
To troubleshoot issues with the MAX4395EUD+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the input and output capacitors are of the correct value and type. Check for any signs of overheating or physical damage to the device. If the issue persists, consult the datasheet and application notes for more troubleshooting guidance.
