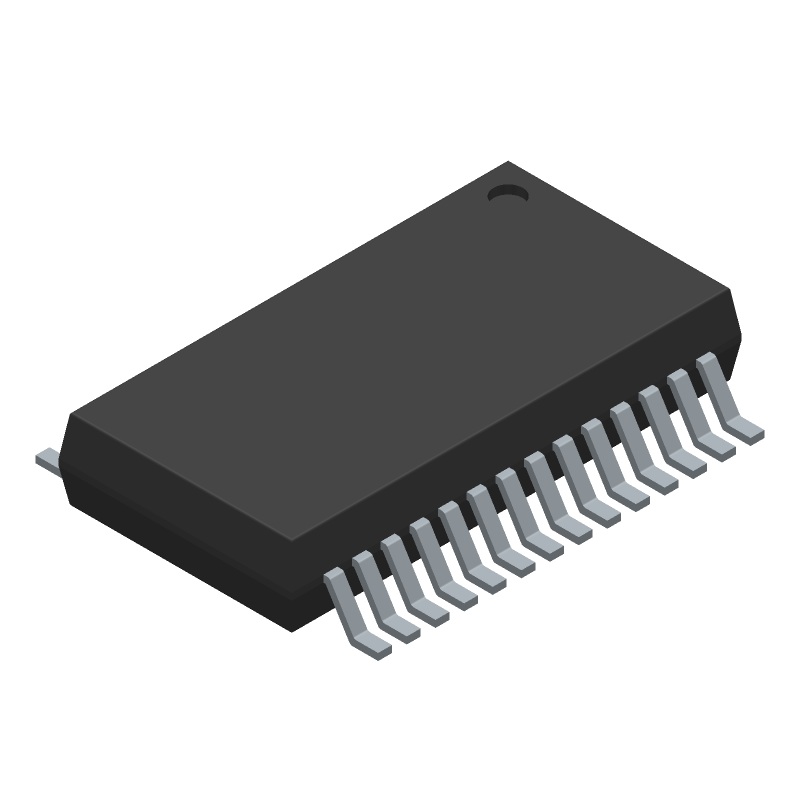

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX3243EEAI+ by Analog Devices Inc
Results Overview of MAX3243EEAI+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX3243EEAI+ Information
MAX3243EEAI+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX3243EEAI+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX3243EEAI
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, 1 A, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown RoHS: Compliant | 513 |
|
$13.3600 / $19.0500 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, 1µA, 3.0V Package Multiple: 1 | 3895 |
|
$10.6800 / $19.0500 | Buy Now |
|
DISTI #
MAX3243EEAI+
|
TME | IC: interface, transceiver, full duplex,RS232, 250kbps, SSOP28 Min Qty: 1 | 0 |
|
$9.2400 / $11.6000 | RFQ |
Part Details for MAX3243EEAI+
MAX3243EEAI+ CAD Models
MAX3243EEAI+ Part Data Attributes
|
|
MAX3243EEAI+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX3243EEAI+
Analog Devices Inc
±15kV ESD-Protected, 1µA, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown, 28-SSOP-5.3_MM, 28 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 28-SSOP-5.3_MM | |
| Package Description | ROHS COMPLIANT, SSOP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 28-SSOP-5.3_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1998-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 3 | |
| High Level Input Current-Max | 0.000001 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; TIA-232; V.24; V.28 | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 5 V | |
| Output Characteristics | 3-STATE | |
| Output Low Current-Max | 0.0016 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP28,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 5 | |
| Seated Height-Max | 1.99 mm | |
| Supply Current-Max | 1 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 mm |
Alternate Parts for MAX3243EEAI+
This table gives cross-reference parts and alternative options found for MAX3243EEAI+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3243EEAI+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ICL3243EIA | Intersil Corporation | Check for Price | TRIPLE LINE TRANSCEIVER, PDSO28, PLASTIC, MO-150AH, SSOP-28 | MAX3243EEAI+ vs ICL3243EIA |
| ICL3243EIV | Intersil Corporation | Check for Price | TRIPLE LINE TRANSCEIVER, PDSO28, PLASTIC, MO-153AE, TSSOP-28 | MAX3243EEAI+ vs ICL3243EIV |
| ICL3243CA | Intersil Corporation | Check for Price | TRIPLE LINE TRANSCEIVER, PDSO28, PLASTIC, MO-150AH, SSOP-28 | MAX3243EEAI+ vs ICL3243CA |
| MAX3243EEAI+T | Analog Devices Inc | Check for Price | ±15kV ESD-Protected, 1µA, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown, 28-SSOP-5.3_MM, 28 Pins, -40 to 85C | MAX3243EEAI+ vs MAX3243EEAI+T |
| ICL3243ECAHZ-T | Intersil Corporation | Check for Price | ICL3243ECAHZ-T | MAX3243EEAI+ vs ICL3243ECAHZ-T |
| MAX3243EEUI-T | Maxim Integrated Products | Check for Price | Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, BICMOS, PDSO28, TSSOP-28 | MAX3243EEAI+ vs MAX3243EEUI-T |
| ICL3243EIVZ-T | Renesas Electronics Corporation | Check for Price | ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Reel | MAX3243EEAI+ vs ICL3243EIVZ-T |
| MAX3243EUI | Maxim Integrated Products | Check for Price | Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, CMOS, PDSO28, 4.40 MM, MO-153AE, TSSOP-28 | MAX3243EEAI+ vs MAX3243EUI |
| ICL3243CVZ-T | Renesas Electronics Corporation | Check for Price | 1mA Supply-Current, +3V to +5.5V, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Reel | MAX3243EEAI+ vs ICL3243CVZ-T |
MAX3243EEAI+ Frequently Asked Questions (FAQ)
-
The recommended layout and routing for the MAX3243EEAI+ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and loops. It's also important to follow the datasheet's guidelines for pin placement and component orientation.
-
The MAX3243EEAI+ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding yourself before handling the device, and avoiding static-inducing activities.
-
The maximum cable length supported by the MAX3243EEAI+ depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 100 meters or more, but this may require the use of repeaters or other signal conditioning devices.
-
Yes, the MAX3243EEAI+ can be used in a multi-point RS-485 network, but it's important to follow proper network design and configuration guidelines. This includes using a common ground reference, terminating the bus correctly, and ensuring that the total bus length does not exceed the recommended maximum.
-
Common issues with the MAX3243EEAI+ include signal integrity problems, incorrect configuration, and ESD damage. To troubleshoot these issues, use a logic analyzer or oscilloscope to monitor the signal, check the device configuration and pinout, and verify that the device is properly powered and grounded.
