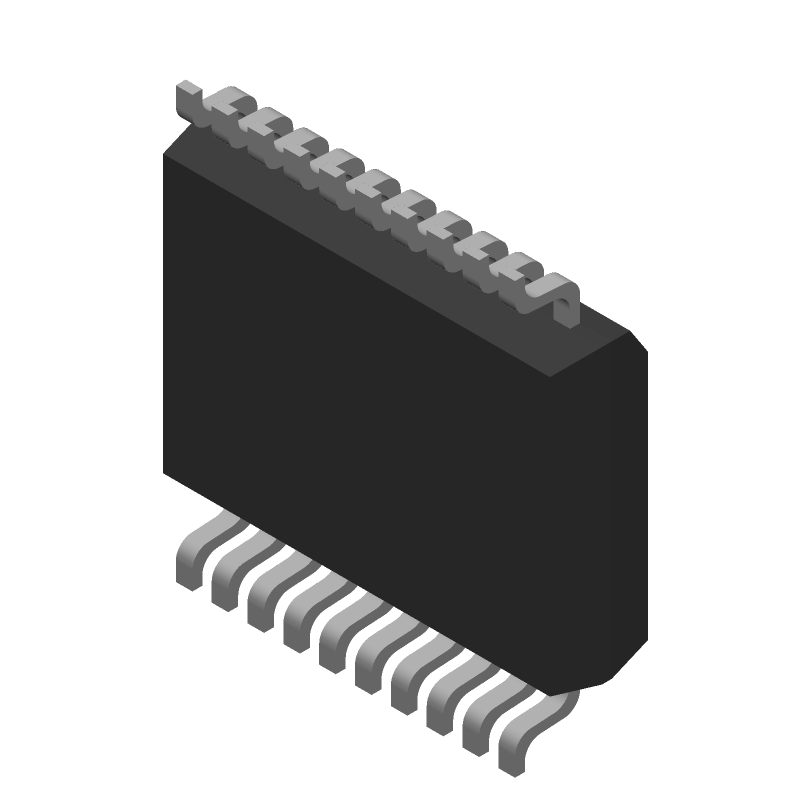

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX3223ECAP+T by Analog Devices Inc
Results Overview of MAX3223ECAP+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX3223ECAP+T Information
MAX3223ECAP+T by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX3223ECAP+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX3223ECAPT
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, 1 A, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown RoHS: Compliant | 58 |
|
$5.3200 / $9.2600 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, 1µA, 3.0V Min Qty: 1 Package Multiple: 1 | 1177 |
|
$5.4511 / $9.2600 | Buy Now |
|
DISTI #
SMC-MAX3223ECAP+T
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 4 |
|
RFQ |
Part Details for MAX3223ECAP+T
MAX3223ECAP+T CAD Models
MAX3223ECAP+T Part Data Attributes
|
|
MAX3223ECAP+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX3223ECAP+T
Analog Devices Inc
±15kV ESD-Protected, 1µA, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown, 20-SSOP-5.3_MM, 20 Pins, 0 to 70C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-SSOP-5.3_MM | |
| Package Description | ROHS COMPLIANT, SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-SSOP-5.3_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1998-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; TIA-232; V.24; V.28 | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.99 mm | |
| Supply Current-Max | 1 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 mm |
Alternate Parts for MAX3223ECAP+T
This table gives cross-reference parts and alternative options found for MAX3223ECAP+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3223ECAP+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX3223ECAP+ | Maxim Integrated Products | $6.3053 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, ROHS COMPLIANT, SSOP-20 | MAX3223ECAP+T vs MAX3223ECAP+ |
| MAX3223EEAP-T | Rochester Electronics LLC | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, SSOP-20 | MAX3223ECAP+T vs MAX3223EEAP-T |
| MAX3223EEAP+T | Analog Devices Inc | Check for Price | ±15kV ESD-Protected, 1µA, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown, 20-SSOP-5.3_MM, 20 Pins, -40 to 85C | MAX3223ECAP+T vs MAX3223EEAP+T |
| MAX3225ECAP | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, 5.30 MM, MO-150, SSOP-20 | MAX3223ECAP+T vs MAX3225ECAP |
| ICL3225EIA-T | Intersil Corporation | Check for Price | DUAL LINE TRANSCEIVER, PDSO20, PLASTIC, MO-150AE, SSOP-20 | MAX3223ECAP+T vs ICL3225EIA-T |
| ICL3225EIAZ | Renesas Electronics Corporation | Check for Price | ±15kV ESD Protected, +3V to +5.5V, 1µA, 1Mbps, RS-232 Transceivers with Enhanced Automatic Powerdown, SSOP, /Tube | MAX3223ECAP+T vs ICL3225EIAZ |
| MAX3225CAP | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, SSOP-20 | MAX3223ECAP+T vs MAX3225CAP |
| MAX3223ECAP+T | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, ROHS COMPLIANT, SSOP-20 | MAX3223ECAP+T vs MAX3223ECAP+T |
| ICL3225IAZ | Renesas Electronics Corporation | Check for Price | 1µA, +3V to +5.5V, 1Mbps, RS-232 Transceivers with Enhanced Automatic Powerdown, SSOP, /Tube | MAX3223ECAP+T vs ICL3225IAZ |
| ICL3225ECA-T | Intersil Corporation | Check for Price | DUAL LINE TRANSCEIVER, PDSO20, PLASTIC, MO-150AE, SSOP-20 | MAX3223ECAP+T vs ICL3225ECA-T |
MAX3223ECAP+T Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX3223ECAP+T involves keeping the device close to the UART interface, using short traces, and avoiding vias under the device. Additionally, it's recommended to use a solid ground plane under the device and to keep the power supply decoupling capacitors close to the device.
-
To ensure reliable operation of the MAX3223ECAP+T in noisy environments, it's recommended to use a shielded cable, twisted pair wiring, and to add common-mode chokes or ferrite beads to the RS-232 lines. Additionally, using a low-pass filter or a shielded enclosure can help to reduce electromagnetic interference (EMI).
-
The maximum cable length supported by the MAX3223ECAP+T depends on the baud rate and the cable characteristics. As a general rule, the maximum cable length is around 50 feet (15 meters) at 9600bps, but it can be longer at lower baud rates or with higher-quality cables.
-
Yes, the MAX3223ECAP+T can be used with a 3.3V power supply, but it's recommended to use a 5V power supply for optimal performance. When using a 3.3V power supply, the device's output voltage levels may be reduced, and the device's ESD protection may be compromised.
-
To troubleshoot issues with the MAX3223ECAP+T, start by checking the power supply voltage, the UART interface signals, and the RS-232 line signals using an oscilloscope or a logic analyzer. Check for signal integrity, noise, and distortion, and verify that the device is properly configured and terminated.
