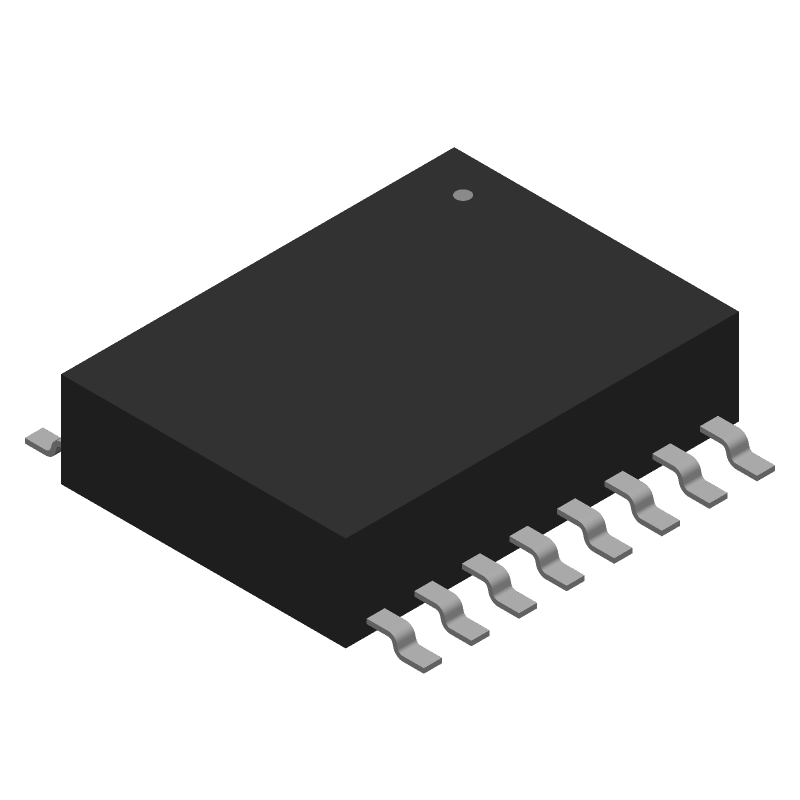

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX232AEWE+T by Analog Devices Inc
Results Overview of MAX232AEWE+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
MAX232AEWE+T Information
MAX232AEWE+T by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX232AEWE+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y2943
|
Newark | Rs232 Txrx, 200Kbps, 5.5V, Wsoic-16, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:-, Data Rate Max:200Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices MAX232AEWE+T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 770 |
|
$6.9900 / $11.6300 | Buy Now |
|
DISTI #
700-MAX232AEWET
|
Mouser Electronics | RS-232 Interface IC +5V-Powered, Multichannel RS-232 Drivers RoHS: Compliant | 1369 |
|
$6.9900 / $11.6300 | Buy Now |
|
|
Analog Devices Inc | +5V-Powered, Multichannel RS-2 Min Qty: 1 Package Multiple: 1 | 309 |
|
$7.1141 / $11.6300 | Buy Now |
Part Details for MAX232AEWE+T
MAX232AEWE+T CAD Models
MAX232AEWE+T Part Data Attributes
|
|
MAX232AEWE+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX232AEWE+T
Analog Devices Inc
+5V-Powered, Multichannel RS-232 Drivers/Receivers, 16-SOIC_W-300_MIL, 16 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-SOIC_W-300_MIL | |
| Package Description | SO-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-SOIC_W-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1998-06-25 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | EXTERNAL CHARGE PUMP | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; TIA-232-E; V.28; V.24 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Low Current-Max | 0.0032 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 1000 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 10 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 3500 ns | |
| Width | 7.5 mm |
Alternate Parts for MAX232AEWE+T
This table gives cross-reference parts and alternative options found for MAX232AEWE+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX232AEWE+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX222CDW | Texas Instruments | $1.4827 | 5-V dual channel 200kbps RS-232 line driver/receiver with +/-9V output & +/-15-kV ESD protection 18-SOIC 0 to 70 | MAX232AEWE+T vs MAX222CDW |
| 5962-9456502MVA | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, CDIP18, CERDIP-18 | MAX232AEWE+T vs 5962-9456502MVA |
| MAX242MJN | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, CDIP18, CERAMIC, DIP-18 | MAX232AEWE+T vs MAX242MJN |
| MAX222INE4 | Texas Instruments | Check for Price | 5-V Dual RS-232 Line Driver/Receiver with +/-15 kV ESD Protection 18-PDIP -40 to 85 | MAX232AEWE+T vs MAX222INE4 |
| 5962-9456503M2X | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, CQCC20, LCC-20 | MAX232AEWE+T vs 5962-9456503M2X |
| MAX222CNE4 | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDIP18, ROHS COMPLIANT, PLASTIC, DIP-18 | MAX232AEWE+T vs MAX222CNE4 |
| MAX242CPN | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP18, PLASTIC, DIP-18 | MAX232AEWE+T vs MAX242CPN |
| MAX242C/D | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, DIE | MAX232AEWE+T vs MAX242C/D |
| MAX222CDWRG4 | Texas Instruments | Check for Price | 5-V Dual RS-232 Line Driver/Receiver with +/-15 kV ESD Protection 18-SOIC 0 to 70 | MAX232AEWE+T vs MAX222CDWRG4 |
MAX232AEWE+T Frequently Asked Questions (FAQ)
-
The MAX232AEWE+T can support data rates up to 120 kbps, but it's recommended to limit the data rate to 19.2 kbps for reliable operation.
-
Yes, the MAX232AEWE+T can operate from a single 3.3V supply, but the output voltage swing will be reduced, and the device may not meet the RS-232 standard. It's recommended to use an external voltage doubler or a 5V supply for full RS-232 compliance.
-
The MAX232AEWE+T has a shutdown mode that can be controlled by the SHDN pin. When SHDN is low, the device enters shutdown mode, reducing power consumption to less than 1 μA. However, it's essential to ensure that the input pins are not driven during shutdown to prevent damage to the device.
-
A good layout and PCB design for the MAX232AEWE+T should minimize noise and ensure proper decoupling. Keep the device close to the power supply, use a solid ground plane, and add decoupling capacitors (e.g., 0.1 μF and 10 μF) between VCC and GND. Also, keep the input and output traces short and away from each other to reduce crosstalk.
-
Yes, the MAX232AEWE+T can be used in hot-swappable applications, but it's crucial to ensure that the device is properly powered down before the hot-swap event. This can be achieved by controlling the SHDN pin or using an external power switch. Additionally, consider adding protection circuitry, such as TVS diodes, to prevent damage from voltage transients.
