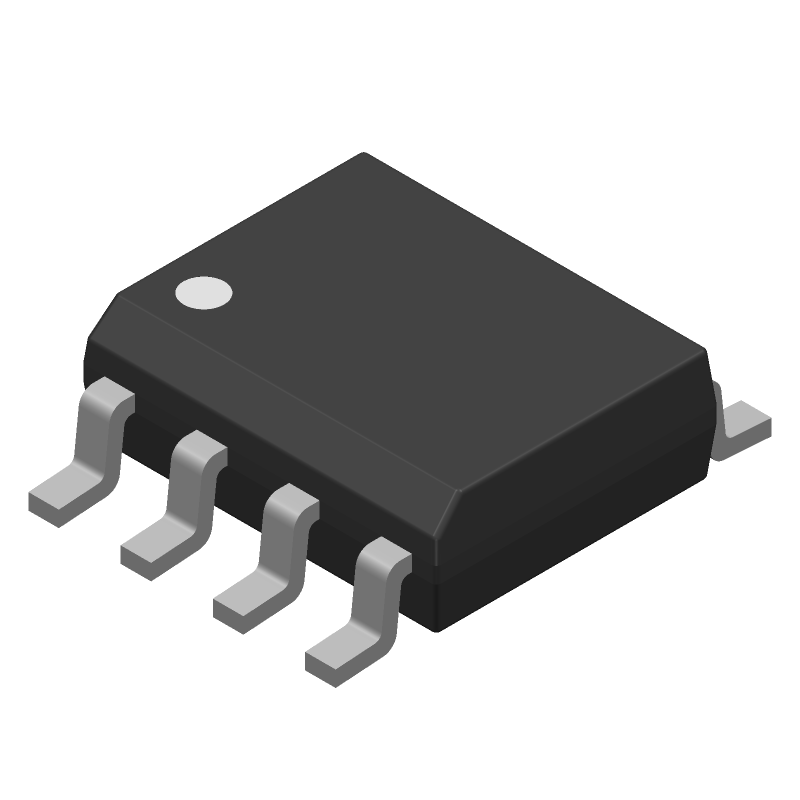

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX1771ESA+ by Analog Devices Inc
Results Overview of MAX1771ESA+ by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX1771ESA+ Information
MAX1771ESA+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX1771ESA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y9278
|
Newark | Controller, Step Up Dc Dc, 12V, 1771, Device Type:-, Ic Interface Type:-, No. Of Drivers:-, Supply Voltage Min:2V, Supply Voltage Max:16.5V, Driver Case Style:-, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Analog Devices MAX1771ESA+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 210 |
|
$4.7100 / $8.1100 | Buy Now |
|
DISTI #
700-MAX1771ESA
|
Mouser Electronics | Switching Controllers 12V or Adjustable, High-Efficiency, Low RoHS: Compliant | 1864 |
|
$4.7100 / $8.1100 | Buy Now |
|
|
Analog Devices Inc | 12V or Adjustable, High-Effici Package Multiple: 1 | 202 |
|
$4.8217 / $8.1100 | Buy Now |
|
|
Bristol Electronics | 5 |
|
RFQ | ||
|
|
Quest Components | IC,SMPS CONTROLLER,VOLTAGE-MODE,BICMOS,SOP,8PIN,PLASTIC | 4 |
|
$14.0805 / $15.0863 | Buy Now |
|
DISTI #
MAX1771ESA+
|
TME | PMIC, DC/DC converter, Uin: 2÷16.5VDC, Uout: 2÷100VDC, 2A, SO8, SMD Min Qty: 1 | 184 |
|
$4.4700 / $6.8500 | Buy Now |
Part Details for MAX1771ESA+
MAX1771ESA+ CAD Models
MAX1771ESA+ Part Data Attributes
|
|
MAX1771ESA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1771ESA+
Analog Devices Inc
12V or Adjustable, High-Efficiency, Low IQ, Step-Up DC-DC Controller, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | SO-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2000-04-04 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE FREQUENCY MODULATION | |
| Input Voltage-Max | 16.5 V | |
| Input Voltage-Min | 3 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.5 A | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.11 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 300 kHz | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MAX1771ESA+
This table gives cross-reference parts and alternative options found for MAX1771ESA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1771ESA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX1771CSA+ | Maxim Integrated Products | $3.4163 | Switching Controller, Current-mode, 0.5A, 300kHz Switching Freq-Max, BICMOS, PDSO8, SO-8 | MAX1771ESA+ vs MAX1771CSA+ |
| MAX1771CSA+T | Maxim Integrated Products | $4.1210 | Switching Controller, Current-mode, 0.5A, 300kHz Switching Freq-Max, BICMOS, PDSO8, SO-8 | MAX1771ESA+ vs MAX1771CSA+T |
| MAX1771ESA+T | Maxim Integrated Products | Check for Price | Switching Controller, Current-mode, 0.5A, 300kHz Switching Freq-Max, BICMOS, PDSO8, SO-8 | MAX1771ESA+ vs MAX1771ESA+T |
| MAX1771CSA | Maxim Integrated Products | Check for Price | Switching Controller, Current-mode, 0.5A, 300kHz Switching Freq-Max, BICMOS, PDSO8, SO-8 | MAX1771ESA+ vs MAX1771CSA |
MAX1771ESA+ Frequently Asked Questions (FAQ)
-
The MAX1771ESA+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
-
To optimize the performance of the MAX1771ESA+, it is recommended to follow the application guidelines provided in the datasheet, including selecting the appropriate input and output capacitors, setting the correct output voltage, and ensuring proper thermal management. Additionally, simulation tools such as SPICE models can be used to simulate the device's performance in the specific application.
-
The MAX1771ESA+ has a maximum junction temperature of 150°C. To ensure proper thermal management, it is recommended to provide adequate heat sinking, such as using a thermal pad or heat sink, and to keep the device away from heat sources. The thermal resistance of the package should also be considered when designing the system.
-
To troubleshoot issues with the MAX1771ESA+, it is recommended to follow a systematic approach, including checking the input and output voltages, ensuring proper connections, and verifying the device's configuration. The datasheet and application notes provide guidance on troubleshooting common issues, and Analog Devices' support resources can also be consulted.
-
The MAX1771ESA+ is designed to meet EMI and EMC requirements, but proper layout and design practices are still necessary to ensure compliance. It is recommended to follow the guidelines provided in the datasheet and application notes, including using shielding, filtering, and proper grounding techniques.
