Field Programmable Gate Array, 86316-Cell, CMOS, PBGA484, FBGA-484

Part Details for M2S090-FGG484I by Microsemi Corporation

Results Overview of M2S090-FGG484I by Microsemi Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M2S090-FGG484I Information

M2S090-FGG484I by Microsemi Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for M2S090-FGG484I

Part # Distributor Description Stock Price Buy
Vyrian Programmable ICs 85
RFQ

Part Details for M2S090-FGG484I

M2S090-FGG484I CAD Models

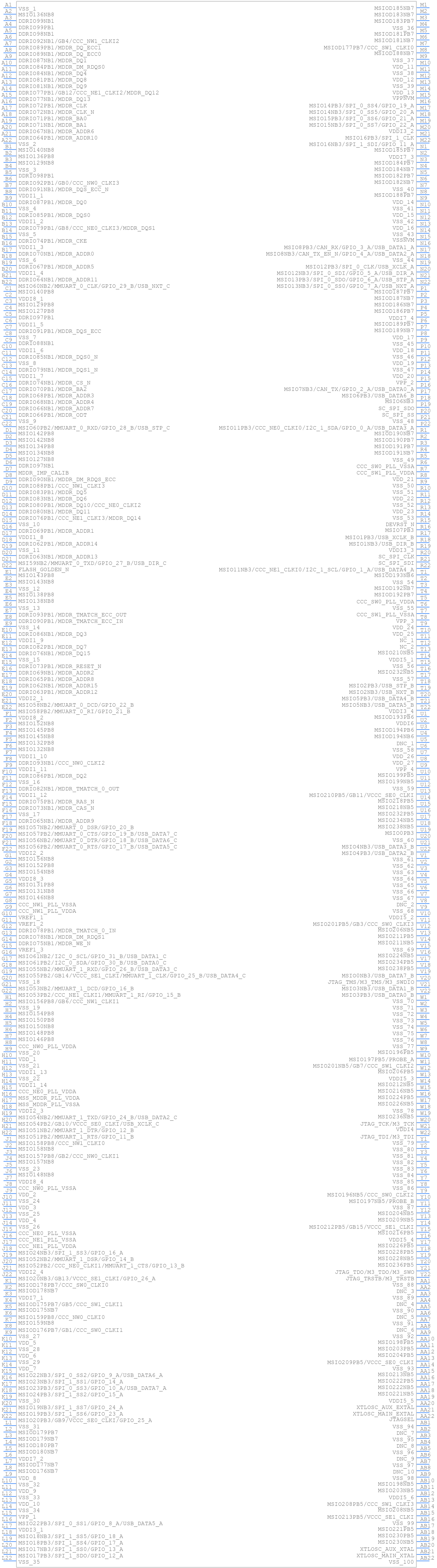

  • Part Symbol

    Part Symbol

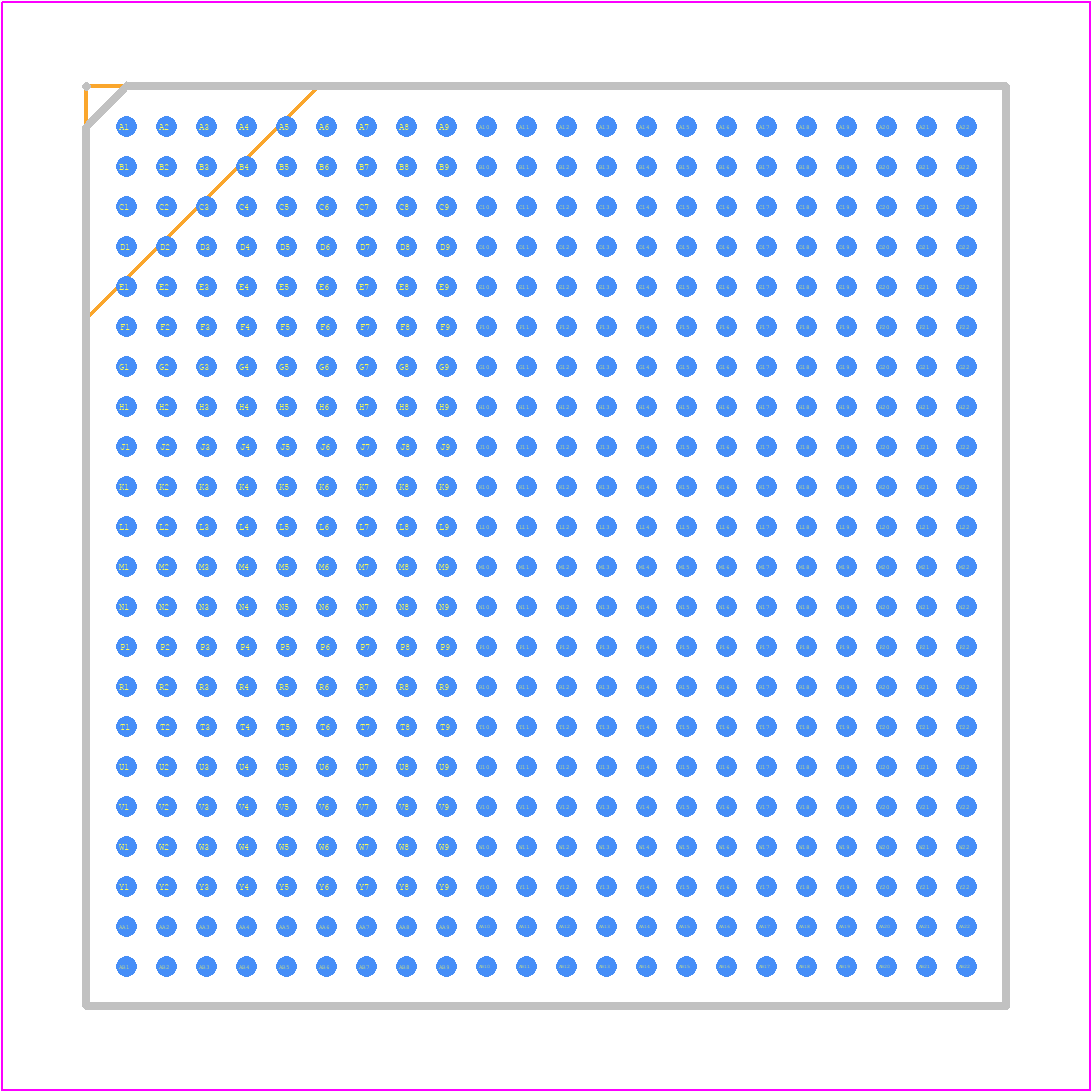

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M2S090-FGG484I Part Data Attributes

Parametric Data
M2S090-FGG484I Microsemi Corporation
Buy Now Datasheet
Compare Parts:
M2S090-FGG484I Microsemi Corporation Field Programmable Gate Array, 86316-Cell, CMOS, PBGA484, FBGA-484
Rohs Code Yes
Part Life Cycle Code Transferred
Ihs Manufacturer MICROSEMI CORP
Package Description FBGA-484
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Microsemi Corporation
JESD-30 Code S-PBGA-B484
JESD-609 Code e1
Length 23 mm
Moisture Sensitivity Level 3
Number of Inputs 267
Number of Logic Cells 86316
Number of Outputs 267
Number of Terminals 484
Operating Temperature-Max 100 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA484,22X22,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 250
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 2.44 mm
Supply Voltage-Max 1.26 V
Supply Voltage-Min 1.14 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 40
Width 23 mm
