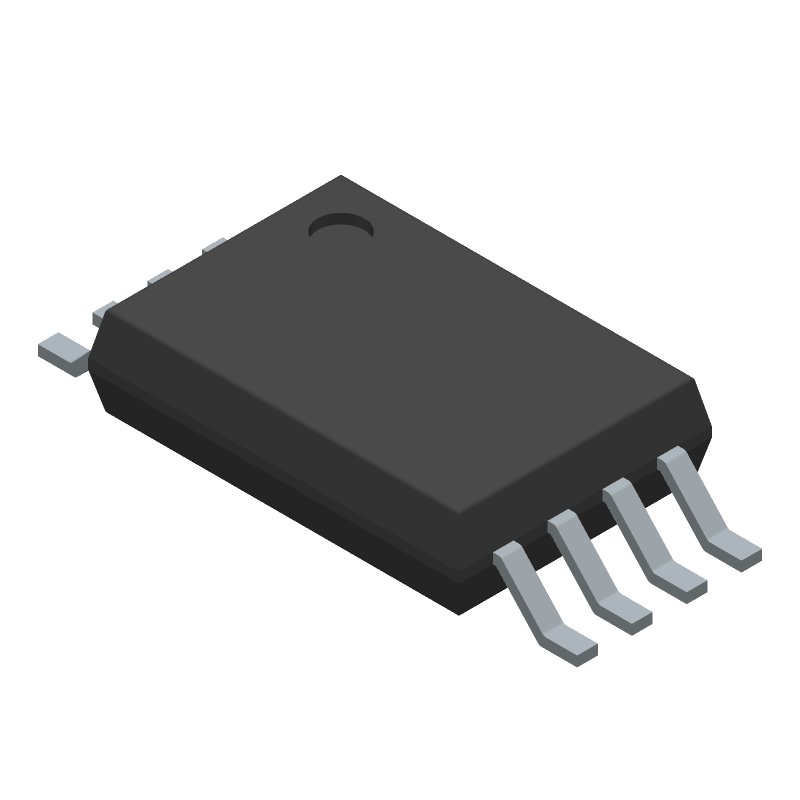

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M24C02-WDW6TP by STMicroelectronics
Results Overview of M24C02-WDW6TP by STMicroelectronics
- Distributor Offerings: (31 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
M24C02-WDW6TP Information
M24C02-WDW6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M24C02-WDW6TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AC9279
|
Newark | Eeprom, 2Kbit, I2C, 400Khz, Tssop-8, Memory Configuration:256 X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Tssop, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mountrohs Compliant: Yes |Stmicroelectronics M24C02-WDW6TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3315 |
|
$0.1150 / $0.1260 | Buy Now |
|
DISTI #
497-4926-1-ND
|
DigiKey | IC EEPROM 2KBIT I2C 8TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
18273 In Stock |
|
$0.1165 / $0.1600 | Buy Now |
|
DISTI #
M24C02-WDW6TP
|
Avnet Americas | EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: M24C02-WDW6TP) RoHS: Compliant Min Qty: 12000 Package Multiple: 4000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0599 / $0.0612 | Buy Now |
|
DISTI #
M24C02-WDW6TP
|
Avnet Americas | EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: M24C02-WDW6TP) RoHS: Compliant Min Qty: 12000 Package Multiple: 4000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0594 / $0.0634 | Buy Now |
|
DISTI #
511-M24C02-WDW6TP
|
Mouser Electronics | EEPROM 2.5-5.5V 2K (256x8) RoHS: Compliant | 23026 |
|
$0.1000 / $0.1600 | Buy Now |
|
DISTI #
V72:2272_06553551
|
Arrow Electronics | EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2242 Container: Cut Strips | Americas - 14256 |
|
$0.1004 / $0.1140 | Buy Now |
|
DISTI #
E02:0323_00033421
|
Arrow Electronics | EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks Date Code: 2445 | Europe - 4000 |
|
$0.0673 | Buy Now |
|
DISTI #
E21:3489_00033421
|
Arrow Electronics | EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2445 | Europe - 2700 |
|
$0.0673 / $0.1452 | Buy Now |
|
|
STMicroelectronics | 2 Kbit serial I2C bus EEPROM RoHS: Compliant Min Qty: 1 | 22026 |
|
$0.1200 / $0.1400 | Buy Now |
|
|
Future Electronics | M24C02 Series 2 Kb (256 x 8) 2.5 V SMT Serial I²C Bus EEPROM - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks Container: Reel | 8000Reel |
|
$0.0594 / $0.0637 | Buy Now |
Part Details for M24C02-WDW6TP
M24C02-WDW6TP CAD Models
M24C02-WDW6TP Part Data Attributes
|
|
M24C02-WDW6TP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M24C02-WDW6TP
STMicroelectronics
2 Kbit serial I<sup>2</sup>C bus EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 6 Weeks | |
| Date Of Intro | 1980-01-04 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Clock Frequency-Max (fCLK) | 0.4 MHz | |
| Data Retention Time-Min | 40 | |
| Endurance | 1000000 Write/Erase Cycles | |
| I2C Control Byte | 1010DDDR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Memory Density | 2048 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 256 words | |
| Number of Words Code | 256 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 256X8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Serial Bus Type | I2C | |
| Standby Current-Max | 0.000001 A | |
| Supply Current-Max | 0.002 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE |
Alternate Parts for M24C02-WDW6TP
This table gives cross-reference parts and alternative options found for M24C02-WDW6TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24C02-WDW6TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M24C02-WDW1 | STMicroelectronics | Check for Price | 256X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8 | M24C02-WDW6TP vs M24C02-WDW1 |
| M24C02-WDW5TG | STMicroelectronics | Check for Price | 256X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 | M24C02-WDW6TP vs M24C02-WDW5TG |
| M24C02-WDW6P | STMicroelectronics | Check for Price | 256X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 | M24C02-WDW6TP vs M24C02-WDW6P |
| M24C02-WDW6G | STMicroelectronics | Check for Price | 256X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 | M24C02-WDW6TP vs M24C02-WDW6G |
| M24C02-WDW1T | STMicroelectronics | Check for Price | 256X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8 | M24C02-WDW6TP vs M24C02-WDW1T |
| M24C02-WDW5P | STMicroelectronics | Check for Price | I2C/2-WIRE SERIAL EEPROM | M24C02-WDW6TP vs M24C02-WDW5P |
M24C02-WDW6TP Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the M24C02-WDW6TP is 400 kHz.
-
The M24C02-WDW6TP has 2 Kbytes (2048 bytes) of user memory.
-
The M24C02-WDW6TP has a write endurance of 1 million cycles.
-
The M24C02-WDW6TP has a data retention period of 40 years.
-
Yes, the M24C02-WDW6TP is compatible with the I2C bus protocol.
