Memory / EEPROMs / M24C02-DRDW8TP/K
Datasheets
M24C02-DRDW8TP/K by: STMicroelectronics

2-Kbit serial I<sup>2</sup>C bus EEPROM 105&#176;C operation

Part Details for M24C02-DRDW8TP/K by STMicroelectronics

Results Overview of M24C02-DRDW8TP/K by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance

M24C02-DRDW8TP/K Information

M24C02-DRDW8TP/K by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M24C02-DRDW8TP/K

Part # Distributor Description Stock Price Buy
DISTI # 54AH6668
Newark Eeprom, 2Kbit, I2C, Tssop-8, Memory Configuration:256 X 8Bit, Interfaces:I2C, Clock Frequency Max:1Mhz, Ic Case/Package:Tssop, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Stmicroelectronics M24C02-DRDW8TP/K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 3040
  • 1 $0.1620
  • 10 $0.1620
  • 25 $0.1620
  • 50 $0.1620
  • 100 $0.1620
  • 250 $0.1620
  • 500 $0.1620
  • 1,000 $0.1620
$0.1620 Buy Now
DISTI # 54AH6668
Avnet Americas EEPROM, Serial I2C, 2 Kbit, 256 x 8bit, 1 MHz, 8 Pins, TSSOP - Product that comes on tape, but is not reeled (Alt: 54AH6668) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Ammo Pack 3040 Partner Stock
  • 1 $0.3020
  • 10 $0.2710
  • 25 $0.2620
  • 50 $0.2530
  • 100 $0.2440
$0.2440 / $0.3020 Buy Now
DISTI # M24C02-DRDW8TP/K
Avnet Americas EEPROM, Serial I2C, 2 Kbit, 256 x 8bit, 1 MHz, 8 Pins, TSSOP - Tape and Reel (Alt: M24C02-DRDW8TP/K) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 8,000 $0.0852
  • 16,000 $0.0847
  • 24,000 $0.0843
  • 40,000 $0.0839
  • 80,000 $0.0834
$0.0834 / $0.0852 Buy Now
DISTI # 511-M24C02-DRDW8TP/K
Mouser Electronics EEPROM 2-Kbit serial I2C bus EEPROM 105C operation RoHS: Compliant 16831
  • 1 $0.2300
  • 10 $0.2060
  • 100 $0.1960
  • 500 $0.1910
  • 1,000 $0.1870
  • 4,000 $0.1420
  • 24,000 $0.1400
$0.1400 / $0.2300 Buy Now
DISTI # E02:0323_08513692
Arrow Electronics EEPROM Serial-I2C 2K-bit 256 x 8 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks Date Code: 2511 Europe - 20000
  • 4,000 $0.2328
  • 8,000 $0.2305
  • 12,000 $0.2282
  • 20,000 $0.2258
  • 40,000 $0.2235
  • 100,000 $0.2212
$0.2212 / $0.2328 Buy Now
DISTI # V36:1790_13796580
Arrow Electronics EEPROM Serial-I2C 2K-bit 256 x 8 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 14 Weeks Date Code: 2430 Americas - 16000
  • 8,000 $0.2162
  • 12,000 $0.2140
  • 20,000 $0.2119
  • 24,000 $0.2097
  • 40,000 $0.2076
  • 100,000 $0.2054
$0.2054 / $0.2162 Buy Now
STMicroelectronics 2-Kbit serial I2C bus EEPROM 105&#176, C operation COO: China RoHS: Compliant Min Qty: 1 16871
  • 1 $0.2300
  • 10 $0.2000
  • 100 $0.1900
  • 500 $0.1900
$0.1900 / $0.2300 Buy Now
DISTI # 88033056
Verical EEPROM Serial-I2C 2K-bit 256 x 8 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2511 Americas - 20000
  • 4,000 $0.2241
  • 8,000 $0.2217
  • 12,000 $0.2196
  • 20,000 $0.2173
  • 40,000 $0.2151
  • 100,000 $0.2128
$0.2128 / $0.2241 Buy Now
DISTI # 86926488
Verical EEPROM Serial-I2C 2K-bit 256 x 8 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Date Code: 2430 Americas - 16000
  • 8,000 $0.2162
  • 12,000 $0.2140
  • 20,000 $0.2119
  • 24,000 $0.2097
  • 40,000 $0.2076
  • 100,000 $0.2054
$0.2054 / $0.2162 Buy Now
DISTI # 73503005
Verical EEPROM Serial-I2C 2K-bit 256 x 8 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 309 Package Multiple: 1 Americas - 3040
  • 309 $0.2539
  • 500 $0.2448
  • 1,000 $0.2368
  • 2,500 $0.2298
$0.2298 / $0.2539 Buy Now
Bristol Electronics   3687
RFQ
Bristol Electronics   1758
RFQ
Quest Components   1406
  • 1 $0.5200
  • 193 $0.2600
  • 770 $0.2080
$0.2080 / $0.5200 Buy Now
DISTI # M24C02-DRDW8TP/K
Avnet Silica EEPROM Serial I2C 2 Kbit 256 x 8bit 1 MHz 8 Pins TSSOP (Alt: M24C02-DRDW8TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Silica - 52000
Buy Now
DISTI # M24C02-DRDW8TP/K
EBV Elektronik EEPROM Serial I2C 2 Kbit 256 x 8bit 1 MHz 8 Pins TSSOP (Alt: M24C02-DRDW8TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now

Part Details for M24C02-DRDW8TP/K

M24C02-DRDW8TP/K CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

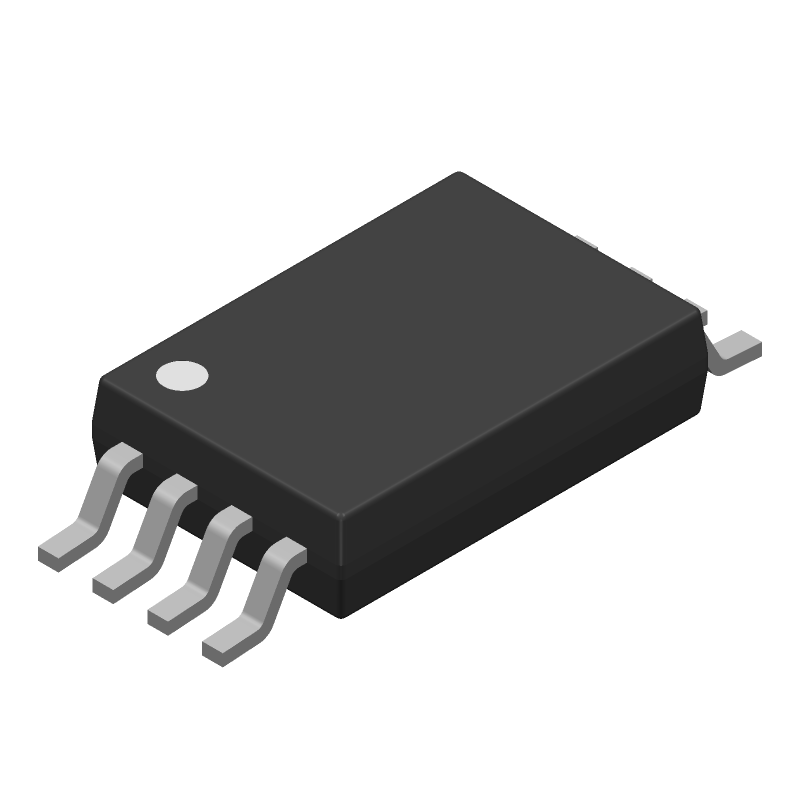

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M24C02-DRDW8TP/K Part Data Attributes

Parametric Data
M24C02-DRDW8TP/K STMicroelectronics
Buy Now Datasheet
Compare Parts:
M24C02-DRDW8TP/K STMicroelectronics 2-Kbit serial I<sup>2</sup>C bus EEPROM 105&#176;C operation
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description TSSOP-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 111 Weeks
Samacsys Manufacturer STMicroelectronics
Clock Frequency-Max (fCLK) 1 MHz
Data Retention Time-Min 50
Endurance 900000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.4 mm
Memory Density 2048 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 256 words
Number of Words Code 256
Operating Mode SYNCHRONOUS
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Organization 256X8
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 1.2 mm
Serial Bus Type I2C
Standby Current-Max 0.000001 A
Supply Current-Max 0.002 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.8 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3 mm
Write Cycle Time-Max (tWC) 4 ms
Write Protection HARDWARE

M24C02-DRDW8TP/K Related Parts

M24C02-DRDW8TP/K Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the M24C02-DRDW8TP/K is 400 kHz.

  • The M24C02-DRDW8TP/K has 2 Kbytes (2048 bytes) of EEPROM memory.

  • The write endurance of the M24C02-DRDW8TP/K is 1 million write cycles.

  • The data retention period of the M24C02-DRDW8TP/K is 40 years at 85°C.

  • Yes, the M24C02-DRDW8TP/K is compatible with the I2C bus protocol.
