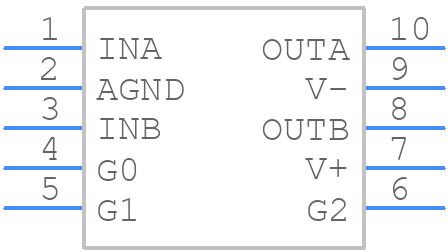

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC6911IMS-2#PBF by Analog Devices Inc
Results Overview of LTC6911IMS-2#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC6911IMS-2#PBF Information
LTC6911IMS-2#PBF by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for LTC6911IMS-2#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4039
|
Newark | Gain Amplifier, 11Mhz, Msop, Amplifier Type:Programmable Gain, No. Of Channels:2Channels, No. Of Amplifiers:2Amplifiers, Gain Bandwidth Product:11Mhz, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Qualification:- Rohs Compliant: Yes |Analog Devices LTC6911IMS-2#PBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 171 |
|
$3.9900 / $9.0200 | Buy Now |
|
DISTI #
LTC6911IMS-2#PBF-ND
|
DigiKey | IC OPAMP PGA 2 CIRCUIT 10MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
80 In Stock |
|
$3.9875 / $9.0200 | Buy Now |
|
DISTI #
584-LTC6911IMS-2#PBF
|
Mouser Electronics | Special Purpose Amplifiers 2x Matched Amps w/ Digly Progmable Gain RoHS: Compliant | 259 |
|
$4.3400 / $9.2300 | Buy Now |
|
DISTI #
V99:2348_06499438
|
Arrow Electronics | SP Amp Variable Gain Amp Dual R-R I/O ±5.25V/10.5V 10-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2015 | Americas - 499 |
|
$4.0490 / $4.7800 | Buy Now |
|
|
Analog Devices Inc | 2x Matched Amps w/ Digly Progm Package Multiple: 50 | 266 |
|
$3.1900 / $9.0200 | Buy Now |
|
|
Rochester Electronics | LTC6911 - Dual Digitally Controlled PGA RoHS: Compliant Status: Active Min Qty: 1 | 15 |
|
$3.3600 / $4.2000 | Buy Now |
|
DISTI #
LTC6911IMS-2PBF
|
Richardson RFPD | AMPLIFIER - SPECIAL PURPOSE RoHS: Compliant Min Qty: 150 | 0 |
|
$4.1200 / $4.5200 | Buy Now |
Part Details for LTC6911IMS-2#PBF
LTC6911IMS-2#PBF CAD Models
LTC6911IMS-2#PBF Part Data Attributes
|
|
LTC6911IMS-2#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6911IMS-2#PBF
Analog Devices Inc
Dual Matched Amplifiers with Digitally Programmable Gain in MSOP
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, MSOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1661 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -5.25 V | |
| Neg Supply Voltage-Min (Vsup) | -1.35 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 1.35 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LTC6911IMS-2#PBF
This table gives cross-reference parts and alternative options found for LTC6911IMS-2#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC6911IMS-2#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC6911CMS-2#PBF | Analog Devices Inc | $3.7373 | Dual Matched Amplifiers with Digitally Programmable Gain in MSOP | LTC6911IMS-2#PBF vs LTC6911CMS-2#PBF |
| LTC6911HMS-2#PBF | Linear Technology | Check for Price | LTC6911 - Dual Matched Amplifiers with Digitally Programmable Gain in MSOP; Package: MSOP; Pins: 10; Temperature Range: -40°C to 125°C | LTC6911IMS-2#PBF vs LTC6911HMS-2#PBF |
| LTC6911CMS-2 | Analog Devices Inc | Check for Price | Analog Circuit, 1 Func, PDSO10 | LTC6911IMS-2#PBF vs LTC6911CMS-2 |
| LTC6911IMS-2#PBF | Linear Technology | Check for Price | LTC6911 - Dual Matched Amplifiers with Digitally Programmable Gain in MSOP; Package: MSOP; Pins: 10; Temperature Range: -40°C to 85°C | LTC6911IMS-2#PBF vs LTC6911IMS-2#PBF |
| LTC6911IMS-2 | Linear Technology | Check for Price | LTC6911 - Dual Matched Amplifiers with Digitally Programmable Gain in MSOP; Package: MSOP; Pins: 10; Temperature Range: -40°C to 85°C | LTC6911IMS-2#PBF vs LTC6911IMS-2 |
| LTC6911IMS-2 | Analog Devices Inc | Check for Price | Analog Circuit, 1 Func, PDSO10 | LTC6911IMS-2#PBF vs LTC6911IMS-2 |
| LTC6911CMS-2 | Linear Technology | Check for Price | LTC6911 - Dual Matched Amplifiers with Digitally Programmable Gain in MSOP; Package: MSOP; Pins: 10; Temperature Range: 0°C to 70°C | LTC6911IMS-2#PBF vs LTC6911CMS-2 |
LTC6911IMS-2#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC6911 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN136 for more details.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be decoupled from the power supply using a 10uF capacitor. If oscillations occur, try adding a small series resistor (e.g., 10 ohms) in the output stage.
-
The maximum power dissipation of the LTC6911 is dependent on the package type and the ambient temperature. For the MSOP-8 package, the maximum power dissipation is 450mW at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
-
While the LTC6911 can be used as a voltage regulator, it's not the most suitable device for this application. The LTC6911 is primarily designed as a voltage reference, and its output current capability is limited to 10mA. If you need a voltage regulator, consider using a dedicated voltage regulator IC like the ADP3333 or the LT1965.
-
The output voltage tolerance of the LTC6911 is specified as ±0.5% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage (e.g., 2.5V) by the tolerance percentage (0.5%). For example, the output voltage tolerance would be ±12.5mV for a 2.5V output voltage.
