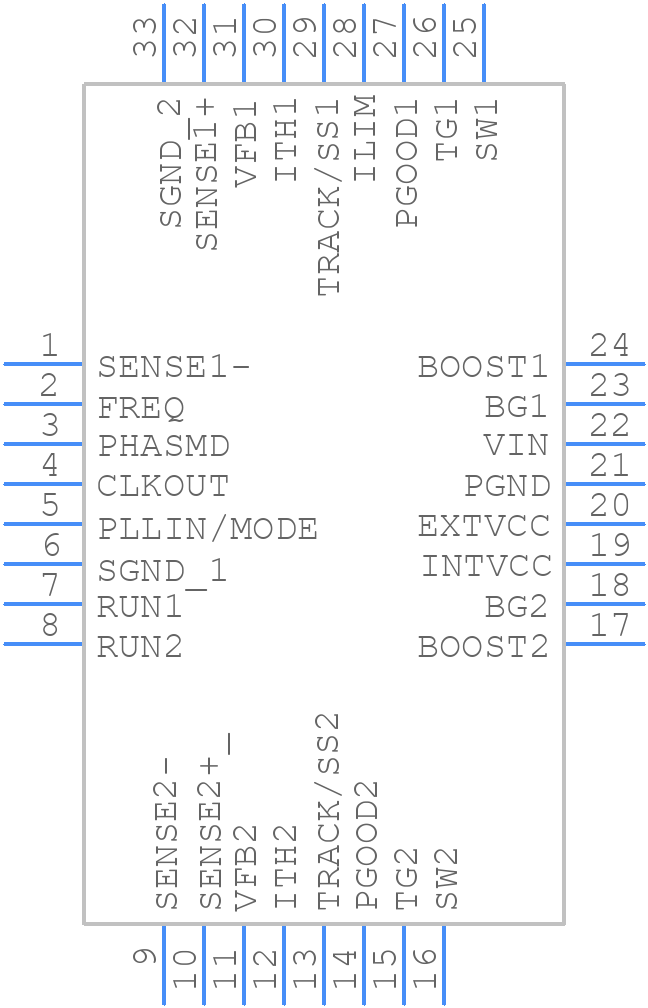

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3857EUH#TRPBF by Analog Devices Inc
Results Overview of LTC3857EUH#TRPBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Robotics and Drones
LTC3857EUH#TRPBF Information
LTC3857EUH#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3857EUH#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC3857EUH#TRPBFCT-ND
|
DigiKey | IC REG CTRLR BUCK 32QFN Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2480 In Stock |
|
$5.9750 / $12.2000 | Buy Now |
|
DISTI #
584-LTC3857EUH#TRPBF
|
Mouser Electronics | Switching Voltage Regulators L IQ, 2x, 2-PhSync Buck Cntr RoHS: Compliant | 85 |
|
$5.9700 / $11.4000 | Buy Now |
|
|
Analog Devices Inc | L IQ, 2x, 2-PhSync Buck Cntr Min Qty: 1 Package Multiple: 2500 | 496 |
|
$4.7800 / $12.2000 | Buy Now |
|
DISTI #
LTC3857EUHTRPBF
|
TME | PMIC, DC/DC converter, Uin: 4÷38VDC, Uout: 0.8÷24VDC, 25A, QFN32 Min Qty: 2500 | 0 |
|
$4.7100 | RFQ |
|
DISTI #
LTC3857EUHTRPBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 2500 | 0 |
|
$6.1700 / $6.4200 | Buy Now |
Part Details for LTC3857EUH#TRPBF
LTC3857EUH#TRPBF CAD Models
LTC3857EUH#TRPBF Part Data Attributes
|
|
LTC3857EUH#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3857EUH#TRPBF
Analog Devices Inc
Low IQ, Dual, 2-Phase Synchronous Step-Down Controller
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 5 X 5 MM, LEAD FREE, PLASTIC, MO-220WHHD, QFN-32 | |
| Pin Count | 32 | |
| Manufacturer Package Code | 05-08-1693 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 24V | |
| Analog IC - Other Type | DUAL SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 38 V | |
| Input Voltage-Min | 4 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Nom | 5.1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | PHASE-SHIFT | |
| Switching Frequency-Max | 900 kHz | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for LTC3857EUH#TRPBF
This table gives cross-reference parts and alternative options found for LTC3857EUH#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC3857EUH#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC3857IUH#PBF | Analog Devices Inc | $10.9778 | Low IQ, Dual, 2-Phase Synchronous Step-Down Controller | LTC3857EUH#TRPBF vs LTC3857IUH#PBF |
| LTC3857EUH#PBF | Analog Devices Inc | $7.3904 | Low IQ, Dual, 2-Phase Synchronous Step-Down Controller | LTC3857EUH#TRPBF vs LTC3857EUH#PBF |
| LTC3857EUH#PBF | Linear Technology | Check for Price | LTC3857 - Low IQ, Dual, 2-Phase Synchronous Step-Down Controller; Package: QFN; Pins: 32; Temperature Range: -40°C to 85°C | LTC3857EUH#TRPBF vs LTC3857EUH#PBF |
| LTC3857IUH#TRPBF | Linear Technology | Check for Price | LTC3857 - Low IQ, Dual, 2-Phase Synchronous Step-Down Controller; Package: QFN; Pins: 32; Temperature Range: -40°C to 85°C | LTC3857EUH#TRPBF vs LTC3857IUH#TRPBF |
| LTC3857IUH#PBF | Linear Technology | Check for Price | LTC3857 - Low IQ, Dual, 2-Phase Synchronous Step-Down Controller; Package: QFN; Pins: 32; Temperature Range: -40°C to 85°C | LTC3857EUH#TRPBF vs LTC3857IUH#PBF |
| LTC3857IUH#TRPBF | Analog Devices Inc | Check for Price | Low IQ, Dual, 2-Phase Synchronous Step-Down Controller | LTC3857EUH#TRPBF vs LTC3857IUH#TRPBF |
LTC3857EUH#TRPBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the VIN pin is 28V, but it's recommended to keep it below 24V for reliable operation.
-
To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, use a low-ESR capacitor for the input capacitor.
-
The maximum output current that the LTC3857EUH can deliver is 7A, but it's recommended to keep it below 5A for reliable operation.
-
The output voltage can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. The output voltage is determined by the ratio of the resistors in the divider network.
-
The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled.
