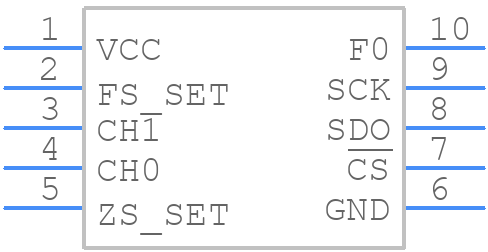

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2422CMS#PBF by Analog Devices Inc
Results Overview of LTC2422CMS#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC2422CMS#PBF Information
LTC2422CMS#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2422CMS#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4018807
|
Farnell | ADC, 20BIT, MSOP-10, 0 TO 70DEG C RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 50 |
|
$7.7605 / $13.5379 | Buy Now |
|
DISTI #
LTC2422CMS#PBF-ND
|
DigiKey | IC ADC 20BIT SIGMA-DELTA 10MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
135 In Stock |
|
$7.3000 / $14.1800 | Buy Now |
|
DISTI #
584-LTC2422CMS#PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 1-/2-Channel 20-Bit Power No Latency ?? ADCs in MSOP-10 RoHS: Compliant | 1306 |
|
$7.3600 / $12.9100 | Buy Now |
|
|
Analog Devices Inc | 1-/2-Ch 20-B µPwr No Lat DS AD Package Multiple: 50 | 27 |
|
$4.3750 / $9.8450 | Buy Now |
|
DISTI #
LTC2422CMS#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 50 | 0 |
|
$7.5400 / $8.7600 | Buy Now |
Part Details for LTC2422CMS#PBF
LTC2422CMS#PBF CAD Models
LTC2422CMS#PBF Part Data Attributes
|
|
LTC2422CMS#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2422CMS#PBF
Analog Devices Inc
1-/2-Channel 20-Bit µPower No Latency ∆Σ™ ADCs in MSOP-10
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, MSOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1661 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Conversion Time-Max | 163440 µs | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 20 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LTC2422CMS#PBF
This table gives cross-reference parts and alternative options found for LTC2422CMS#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2422CMS#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS1245IDGST | Texas Instruments | $5.8168 | 24-Bit Low-Power ADC With High-Z Input Buffer 10-VSSOP -40 to 85 | LTC2422CMS#PBF vs ADS1245IDGST |
| LTC2402CMS#PBF | Analog Devices Inc | $7.6377 | 2-Channel 24-Bit µPower No Latency ∆Σ™ ADCs in MSOP-10 | LTC2422CMS#PBF vs LTC2402CMS#PBF |
| LTC2422CMS#TR | Linear Technology | Check for Price | LTC2422 - 1-/2-Channel 20-Bit µPower No Latency Delta Sigma ADCs in MSOP-10; Package: MSOP; Pins: 10; Temperature Range: 0°C to 70°C | LTC2422CMS#PBF vs LTC2422CMS#TR |
| LTC2422CMS | Linear Technology | Check for Price | LTC2422 - 1-/2-Channel 20-Bit µPower No Latency Delta Sigma ADCs in MSOP-10; Package: MSOP; Pins: 10; Temperature Range: 0°C to 70°C | LTC2422CMS#PBF vs LTC2422CMS |
| LTC2422CMS#PBF | Linear Technology | Check for Price | LTC2422 - 1-/2-Channel 20-Bit µPower No Latency Delta Sigma ADCs in MSOP-10; Package: MSOP; Pins: 10; Temperature Range: 0°C to 70°C | LTC2422CMS#PBF vs LTC2422CMS#PBF |
| LTC2411-1IMS#PBF | Linear Technology | Check for Price | LTC2411 - 24-Bit No Latency Delta Sigma ADC with Differential Input and Reference in MSOP; Package: MSOP; Pins: 10; Temperature Range: -40°C to 85°C | LTC2422CMS#PBF vs LTC2411-1IMS#PBF |
| LTC2411-1CMS#PBF | Analog Devices Inc | Check for Price | 24-Bit No Latency ∆Σ™ ADC with Differential Input and Reference in MSOP | LTC2422CMS#PBF vs LTC2411-1CMS#PBF |
| LTC2411-1CMS#TR | Linear Technology | Check for Price | LTC2411 - 24-Bit No Latency Delta Sigma ADC with Differential Input and Reference in MSOP; Package: MSOP; Pins: 10; Temperature Range: 0°C to 70°C | LTC2422CMS#PBF vs LTC2411-1CMS#TR |
| LTC2411IMS#TR | Analog Devices Inc | Check for Price | ADC, Delta-Sigma, 24-Bit, 1 Func, 1 Channel, Serial Access, PDSO10 | LTC2422CMS#PBF vs LTC2411IMS#TR |
LTC2422CMS#PBF Frequently Asked Questions (FAQ)
-
The datasheet provides some guidelines, but it's recommended to follow Analog Devices' application note AN115, which provides detailed layout and placement recommendations to minimize noise and ensure optimal performance.
-
Use a low-noise, low-impedance signal source, and consider adding a buffer amplifier or a low-pass filter to reduce noise. Also, ensure that the input pins are properly terminated and shielded to prevent noise pickup.
-
The recommended power-up sequence is to apply the analog supply voltage (AVCC) first, followed by the digital supply voltage (DVCC), and then the clock signal. This ensures that the internal biasing and reference circuits are properly initialized.
-
Ensure good thermal design and heat dissipation, such as using a heat sink or a thermally conductive material, and consider using a temperature sensor to monitor the device temperature. Also, follow the recommended operating temperature range specified in the datasheet.
-
Use shielding, filtering, and grounding techniques to minimize EMI and RFI. Consider using a metal shield around the device, and add EMI filters or ferrite beads to the input and output lines. Also, ensure good grounding and decoupling of the device.
