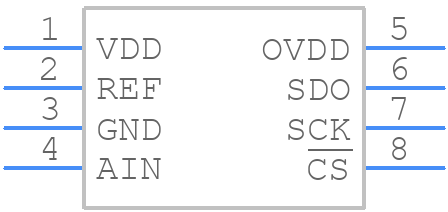

Part Symbol
-
Footprint
-

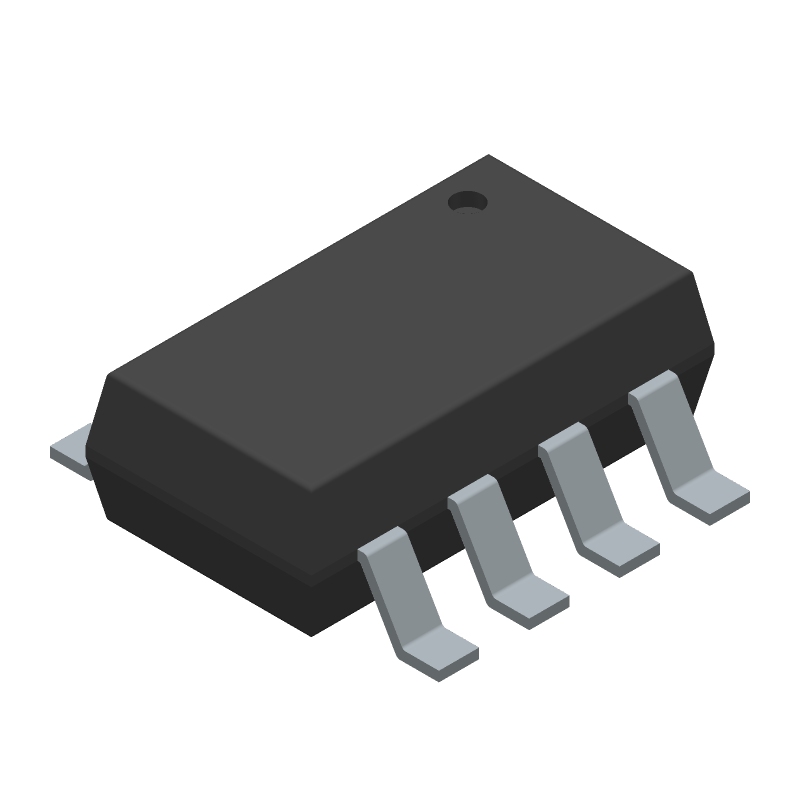

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2315ITS8-12#TRMPBF by Analog Devices Inc
Results Overview of LTC2315ITS8-12#TRMPBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
LTC2315ITS8-12#TRMPBF Information
LTC2315ITS8-12#TRMPBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2315ITS8-12#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2339
|
Newark | Adc, 12-Bit, 5Msps, Tsot-23-8, Resolution (Bits):12Bit, Sampling Rate:5Msps, Input Channel Type:Single Ended, Data Interface:Spi, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:5.25V, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices LTC2315ITS8-12#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 304 |
|
$9.5200 / $15.0000 | Buy Now |
|
DISTI #
LTC2315ITS8-12#TRMPBFCT-ND
|
DigiKey | IC ADC 12BIT SAR TSOT23-8 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1671 In Stock |
|
$8.8250 / $16.3800 | Buy Now |
|
DISTI #
584-C2315ITS8-12TMPF
|
Mouser Electronics | Analog to Digital Converters - ADC 12-B, 5Msps Serial Smpl ADC in TSOT RoHS: Compliant | 3527 |
|
$9.7800 / $15.0000 | Buy Now |
|
DISTI #
V72:2272_06449767
|
Arrow Electronics | 1-Channel Single ADC SAR 5Msps 12-bit Serial 8-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2221 Container: Cut Strips | Americas - 389 |
|
$9.0530 / $10.8330 | Buy Now |
|
|
Analog Devices Inc | 12-B, 5Msps Serial Smpl ADC in Package Multiple: 500 | 1335 |
|
$7.0600 / $16.3800 | Buy Now |
|
DISTI #
42660215
|
Verical | 1-Channel Single ADC SAR 5Msps 12-bit Serial 8-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 1000 |
|
$8.7322 | Buy Now |
|
DISTI #
65213066
|
Verical | 1-Channel Single ADC SAR 5Msps 12-bit Serial 8-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2221 | Americas - 389 |
|
$9.0530 / $10.8330 | Buy Now |
|
DISTI #
LTC2315IT812TRM
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 500 | 0 |
|
$9.1200 / $9.7300 | Buy Now |
Part Details for LTC2315ITS8-12#TRMPBF
LTC2315ITS8-12#TRMPBF CAD Models
LTC2315ITS8-12#TRMPBF Part Data Attributes
|
|
LTC2315ITS8-12#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2315ITS8-12#TRMPBF
Analog Devices Inc
12-Bit, 5Msps Serial Sampling ADC in TSOT
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1637 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 3.6 V | |
| Analog Input Voltage-Min | ||
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Linearity Error-Max (EL) | 0.0366% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 5 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for LTC2315ITS8-12#TRMPBF
This table gives cross-reference parts and alternative options found for LTC2315ITS8-12#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2315ITS8-12#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2312ITS8-12#TRPBF | Linear Technology | Check for Price | LTC2312-12 - 12-Bit, 500ksps Serial Sampling ADC in TSOT; Package: SOT; Pins: 8; Temperature Range: -40°C to 85°C | LTC2315ITS8-12#TRMPBF vs LTC2312ITS8-12#TRPBF |
| LTC2313ITS8-12#TRPBF | Analog Devices Inc | Check for Price | 12-Bit, 2.5Msps Serial Sampling ADC in TSOT | LTC2315ITS8-12#TRMPBF vs LTC2313ITS8-12#TRPBF |
LTC2315ITS8-12#TRMPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC2315 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the ADC near the analog signal sources and to use a low-impedance power supply.
-
To ensure accurate conversions with the LTC2315, it's essential to provide a clean and stable power supply, minimize noise and interference, and use a high-quality analog input signal. Additionally, proper PCB layout, grounding, and shielding are crucial. It's also recommended to use the internal reference voltage and to calibrate the ADC periodically.
-
The maximum sampling rate of the LTC2315 is 1.5Msps (mega-samples per second). However, the actual sampling rate may vary depending on the specific application, clock frequency, and system design.
-
Yes, the LTC2315 can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be connected and addressed individually. However, it's essential to ensure that each device has a unique address and that the system is designed to handle the increased data transfer rate.
-
The LTC2315 outputs 12-bit digital data in a serial format. The data can be handled using a microcontroller or an FPGA. The data is typically processed and stored in a buffer before being transmitted to a host system or used for further processing.
