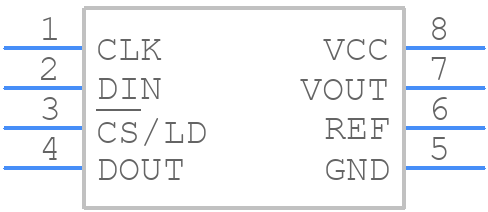

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1655IS8#PBF by Analog Devices Inc
Results Overview of LTC1655IS8#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LTC1655IS8#PBF Information
LTC1655IS8#PBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1655IS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6227
|
Newark | Dac, 16Bit, Soic-8, -40 To 85Deg C, Resolution (Bits):16Bit, Sampling Rate:-, Data Interface:3 Wire, Microwire, Qspi, Serial, Spi, Supply Voltage Range:4.5V To 5.5V, Adc/Dac Case Style:Soic, No. Of Pins:8Pins, Msl:Msl 1 - Unlimitedrohs Compliant: Yes |Analog Devices LTC1655IS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 172 |
|
$14.2600 / $23.6800 | Buy Now |
|
DISTI #
LTC1655IS8#PBF-ND
|
DigiKey | IC DAC 16BIT V-OUT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
157 In Stock |
|
$14.2625 / $23.6800 | Buy Now |
|
DISTI #
584-LTC1655IS8#PBF
|
Mouser Electronics | Digital to Analog Converters - DAC 16-B R2R uP DACs in SO-8 Package RoHS: Compliant | 0 |
|
$14.7000 / $23.7300 | Order Now |
|
|
Analog Devices Inc | 16-B R2R uP DACs in SO-8 Packa Package Multiple: 100 | 32 |
|
$10.3875 / $18.5500 | Buy Now |
|
DISTI #
LTC1655IS8#PBF
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 100 | 0 |
|
$14.7300 / $16.1700 | Buy Now |
Part Details for LTC1655IS8#PBF
LTC1655IS8#PBF CAD Models
LTC1655IS8#PBF Part Data Attributes
|
|
LTC1655IS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1655IS8#PBF
Analog Devices Inc
16-Bit Rail-to-Rail Micropower DACs in SO-8 Package
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, PLASTIC, SO-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 4.096 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Linearity Error-Max (EL) | 0.0305% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Settling Time-Nom (tstl) | 20 µs | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for LTC1655IS8#PBF
This table gives cross-reference parts and alternative options found for LTC1655IS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1655IS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1655CS8#PBF | Analog Devices Inc | $12.6050 | 16-Bit Rail-to-Rail Micropower DACs in SO-8 Package | LTC1655IS8#PBF vs LTC1655CS8#PBF |
| LTC1655CN8 | Linear Technology | Check for Price | LTC1655 - 16-Bit Rail-to-Rail Micropower DACs in SO-8 Package; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C | LTC1655IS8#PBF vs LTC1655CN8 |
LTC1655IS8#PBF Frequently Asked Questions (FAQ)
-
A good layout and routing practice for the LTC1655IS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the noise-sensitive analog signals away from the digital signals.
-
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known voltage to the input pins and adjusting the internal calibration registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input voltage is within the recommended range.
-
Potential sources of error in the LTC1655IS8#PBF include offset voltage, gain error, and noise. To minimize these errors, ensure that the device is properly calibrated, use a low-noise power supply, and minimize the input impedance. Additionally, using a high-quality external reference voltage and ensuring good thermal management can also help reduce errors.
-
The LTC1655IS8#PBF can be interfaced with a microcontroller or other digital system using a serial interface such as SPI or I2C. Ensure that the interface protocol is properly configured, and that the clock frequency and data transfer rate are within the recommended specifications. Additionally, use a level translator if necessary to match the voltage levels between the LTC1655IS8#PBF and the digital system.
-
The LTC1655IS8#PBF has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure good thermal management by providing adequate heat sinking, using a thermally conductive package, and minimizing power dissipation. Additionally, ensure that the device is operated within its specified temperature range and that the thermal shutdown feature is enabled to prevent overheating.
