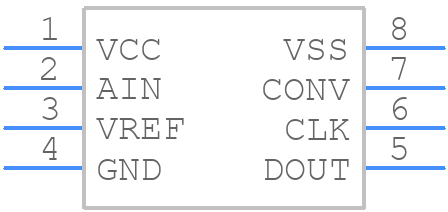

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1404CS8#PBF by Analog Devices Inc
Results Overview of LTC1404CS8#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1404CS8#PBF Information
LTC1404CS8#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1404CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6115
|
Newark | Adc, 12Bit, 600Ksps, Soic-8, Resolution (Bits):12Bit, Sampling Rate:600Ksps, Input Channel Type:Single Ended, Data Interface:3 Wire, Microwire, Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:4.75V, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices LTC1404CS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 47 |
|
$9.1200 / $13.4400 | Buy Now |
|
DISTI #
LTC1404CS8#PBF-ND
|
DigiKey | IC ADC 12BIT SAR 8SOIC Min Qty: 1 Lead time: 13 Weeks Container: Tube |
534 In Stock |
|
$9.1248 / $14.2800 | Buy Now |
|
DISTI #
584-LTC1404CS8#PBF
|
Mouser Electronics | Analog to Digital Converters - ADC Complete SO-8, 12-B, 600ksps ADC w/ SD RoHS: Compliant | 153 |
|
$9.1200 / $13.5400 | Buy Now |
|
DISTI #
V36:1790_06436629
|
Arrow Electronics | 1-Channel Single ADC SAR 600ksps 12-bit Serial 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 13 Weeks Date Code: 2330 | Americas - 20 |
|
$9.0990 | Buy Now |
|
|
Analog Devices Inc | Complete SO-8, 12-B, 600ksps A Package Multiple: 100 | 1607 |
|
$7.3000 / $14.2800 | Buy Now |
|
DISTI #
LTC1404CS8#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 100 | 0 |
|
$9.4200 / $10.3400 | Buy Now |
Part Details for LTC1404CS8#PBF
LTC1404CS8#PBF CAD Models
LTC1404CS8#PBF Part Data Attributes
|
|
LTC1404CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1404CS8#PBF
Analog Devices Inc
Complete SO-8, 12-Bit, 600ksps ADC with Shutdown
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2.048 V | |
| Analog Input Voltage-Min | -2.048 V | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9025 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Negative Supply Voltage-Nom | -5 V | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.6 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1.752 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.899 mm |
Alternate Parts for LTC1404CS8#PBF
This table gives cross-reference parts and alternative options found for LTC1404CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1404CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1404IS8 | Analog Devices Inc | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial Access, PDSO8 | LTC1404CS8#PBF vs LTC1404IS8 |
| LTC1404CS8 | Analog Devices Inc | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial Access, PDSO8 | LTC1404CS8#PBF vs LTC1404CS8 |
| LTC1404IS8#PBF | Linear Technology | Check for Price | LTC1404 - Complete SO-8, 12-Bit, 600ksps ADC with Shutdown; Package: SO; Pins: 8; Temperature Range: -40°C to 85°C | LTC1404CS8#PBF vs LTC1404IS8#PBF |
| LTC1404CS8#PBF | Linear Technology | Check for Price | LTC1404 - Complete SO-8, 12-Bit, 600ksps ADC with Shutdown; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LTC1404CS8#PBF vs LTC1404CS8#PBF |
| LTC1404IS8#PBF | Analog Devices Inc | Check for Price | Complete SO-8, 12-Bit, 600ksps ADC with Shutdown | LTC1404CS8#PBF vs LTC1404IS8#PBF |
| LTC1404CS8 | Linear Technology | Check for Price | LTC1404 - Complete SO-8, 12-Bit, 600ksps ADC with Shutdown; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LTC1404CS8#PBF vs LTC1404CS8 |
LTC1404CS8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC1404CS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and shielded.
-
The LTC1404CS8#PBF requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirement is to power up the VCC pin before the VIN pin, and to ensure that the VCC pin is stable before applying any input signals.
-
The maximum clock frequency for the LTC1404CS8#PBF is 50MHz, and it's recommended to use a clock signal with a 50% duty cycle and a rise and fall time of less than 5ns. Additionally, the clock signal should be synchronized with the input data to ensure proper sampling.
-
The LTC1404CS8#PBF outputs 14-bit parallel data, and it's recommended to use a FIFO or a buffer to handle the output data. The output data format is two's complement, and the output data is valid on the rising edge of the clock signal.
-
The typical power consumption of the LTC1404CS8#PBF is 120mW, and it has a shutdown mode that reduces the power consumption to less than 1mW. The shutdown mode can be enabled by pulling the SHDN pin low.
