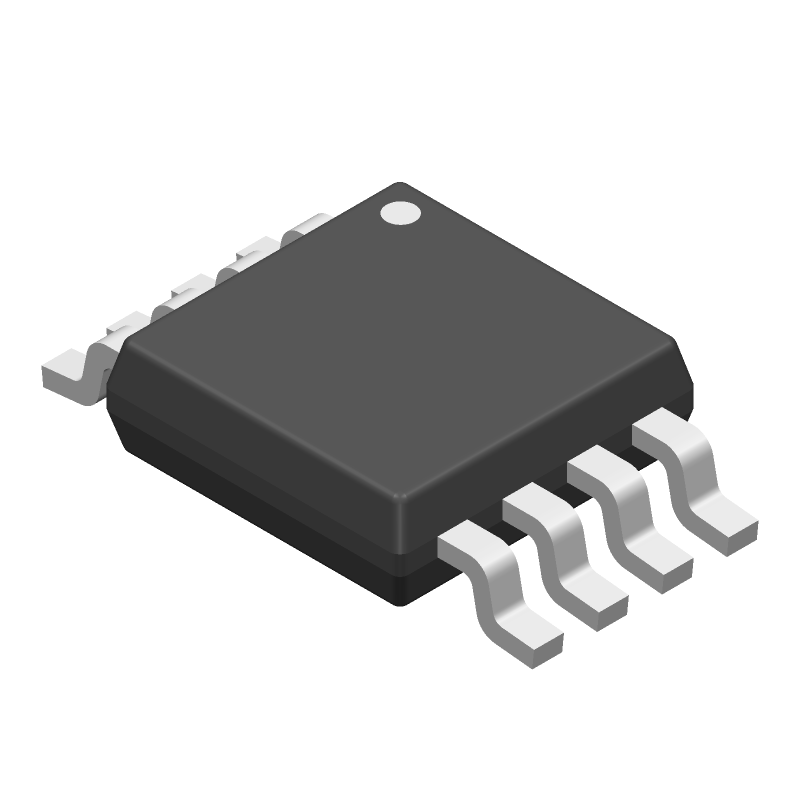

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1999CMS8-50#PBF by Analog Devices Inc
Results Overview of LT1999CMS8-50#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
LT1999CMS8-50#PBF Information
LT1999CMS8-50#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1999CMS8-50#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5161
|
Newark | Current Sense Amp, 1.2Mhz, Msop, Current Sense Amplifier Type:High Side, Low Side, Gain Bandwidth Product:1.2Mhz, Ic Case/Package:Msop, No. Of Pins:8Pins, Operating Temperature Min:0°C, Operating Temperature Max:70°C, Cmrr:120Db Rohs Compliant: Yes |Analog Devices LT1999CMS8-50#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$3.0900 / $5.6200 | Buy Now |
|
DISTI #
LT1999CMS8-50#PBF-ND
|
DigiKey | IC CURRENT SENSE 1 CIRCUIT 8MSOP Min Qty: 1 Lead time: 20 Weeks Container: Tube |
168 In Stock |
|
$2.9125 / $7.1600 | Buy Now |
|
DISTI #
584-LT1999CMS8-50PBF
|
Mouser Electronics | Current Sense Amplifiers Hi V, Bi-dir C Sense Amp RoHS: Compliant | 190 |
|
$2.9100 / $6.6900 | Buy Now |
|
|
Analog Devices Inc | Hi V, Bi-dir C Sense Amp Package Multiple: 50 | 3134 |
|
$2.3300 / $7.1600 | Buy Now |
|
DISTI #
35210743
|
Verical | SP Amp Current Sense Amp Single 5.5V 8-Pin MSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 200 | Americas - 3000 |
|
$2.8819 | Buy Now |
|
DISTI #
LT1999CMS8-50PB
|
Richardson RFPD | AMPLIFIER - SPECIAL PURPOSE RoHS: Compliant Min Qty: 200 | 0 |
|
$3.0100 / $3.3000 | Buy Now |
Part Details for LT1999CMS8-50#PBF
LT1999CMS8-50#PBF CAD Models
LT1999CMS8-50#PBF Part Data Attributes
|
|
LT1999CMS8-50#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1999CMS8-50#PBF
Analog Devices Inc
High Voltage, Bidirectional Current Sense Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LEAD FREE, PLASTIC, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 1500 µA | |
| Common-mode Reject Ratio-Nom | 120 dB | |
| Input Offset Voltage-Max | 1500 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 3 V/us | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LT1999CMS8-50#PBF
This table gives cross-reference parts and alternative options found for LT1999CMS8-50#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1999CMS8-50#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1999CMS8-10#PBF | Analog Devices Inc | $3.7405 | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999CMS8-10#PBF |
| LT1999IMS8-50#PBF | Analog Devices Inc | $3.9834 | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999IMS8-50#PBF |
| LT1999HMS8-50#PBF | Analog Devices Inc | $4.5812 | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999HMS8-50#PBF |
| LT1999MPMS8-10#PBF | Analog Devices Inc | $8.2606 | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999MPMS8-10#PBF |
| LT1999MPMS8-10#TRPBF | Analog Devices Inc | Check for Price | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999MPMS8-10#TRPBF |
| LT1999CMS8-50#TRPBF | Analog Devices Inc | Check for Price | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999CMS8-50#TRPBF |
| LT1999HMS8-50#TRPBF | Analog Devices Inc | Check for Price | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999HMS8-50#TRPBF |
| LT1999MPMS8-20#TRPBF | Analog Devices Inc | Check for Price | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999MPMS8-20#TRPBF |
| LT1999MPMS8-50#PBF | Analog Devices Inc | Check for Price | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999MPMS8-50#PBF |
| LT1999MPMS8-50#TRPBF | Analog Devices Inc | Check for Price | High Voltage, Bidirectional Current Sense Amplifier | LT1999CMS8-50#PBF vs LT1999MPMS8-50#TRPBF |
LT1999CMS8-50#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1999CMS8-50 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input and output capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability and prevent oscillations, make sure to follow the recommended PCB layout, use a sufficient output capacitor, and add a series resistor (Rs) in the output stage. Additionally, ensure that the input and output capacitors are of high quality and have low ESR.
-
The maximum power dissipation of the LT1999CMS8-50 is 1.4W. However, this can be increased by using a heat sink or a thermally enhanced package.
-
The LT1999CMS8-50 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper thermal management in high-temperature environments.
-
To protect the LT1999CMS8-50 from overvoltage and overcurrent conditions, use a voltage regulator or a voltage limiter at the input, and add overcurrent protection devices such as fuses or PTC thermistors at the output.
