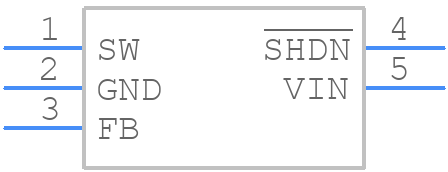

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1613CS5#TRPBF by Analog Devices Inc
Results Overview of LT1613CS5#TRPBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
LT1613CS5#TRPBF Information
LT1613CS5#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1613CS5#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4818
|
Newark | Dc/Dc Conv, Boost, 1.4Mhz, 70Deg C, No. Of Outputs:1Outputs, Topology:Boost (Step Up), Input Voltage Min:900Mv, Input Voltage Max:10V, Max Output Current:800Ma, Ic Case/Package:Tsot-23, No. Of Pins:5Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LT1613CS5#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3359 |
|
$3.0500 / $5.8600 | Buy Now |
|
DISTI #
LT1613CS5#TRPBFCT-ND
|
DigiKey | IC REG BST FLYBACK ADJ TSOT23-5 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5574 In Stock |
|
$3.0500 / $7.4000 | Buy Now |
|
DISTI #
584-LT1613CS5#TRPBF
|
Mouser Electronics | Switching Voltage Regulators 1.4MHz, 1x Cell DC/DC Conv in 5-Lead SOT RoHS: Compliant | 11851 |
|
$3.0400 / $5.8600 | Buy Now |
|
DISTI #
V72:2272_06418059
|
Arrow Electronics | Conv DC-DC 0.9V to 10V Step Up Single-Out 36V 5-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2404 Container: Cut Strips | Americas - 1966 |
|
$3.1290 / $4.3060 | Buy Now |
|
|
Analog Devices Inc | 1.4MHz, 1x Cell DC/DC Conv in Min Qty: 1 Package Multiple: 2500 | 1115 |
|
$2.4400 / $7.4000 | Buy Now |
|
|
Bristol Electronics | 1176 |
|
RFQ | ||
|
DISTI #
LT1613CS5#TRPBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 2500 | 0 |
|
$3.1500 / $3.2700 | Buy Now |
Part Details for LT1613CS5#TRPBF
LT1613CS5#TRPBF CAD Models
LT1613CS5#TRPBF Part Data Attributes
|
|
LT1613CS5#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1613CS5#TRPBF
Analog Devices Inc
1.4MHz, Single Cell DC/DC Converter in 5-Lead SOT-23
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 05-08-1635 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 10 V | |
| Input Voltage-Min | 1.1 V | |
| Input Voltage-Nom | 1.5 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1800 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for LT1613CS5#TRPBF
This table gives cross-reference parts and alternative options found for LT1613CS5#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1613CS5#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1613CS5 | Linear Technology | Check for Price | LT1613 - 1.4MHz, Single Cell DC/DC Converter in 5-Lead SOT-23; Package: SOT; Pins: 5; Temperature Range: 0°C to 70°C | LT1613CS5#TRPBF vs LT1613CS5 |
| LT1613CS5#TR | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 1800kHz Switching Freq-Max, PDSO5 | LT1613CS5#TRPBF vs LT1613CS5#TR |
LT1613CS5#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1613CS5 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
-
To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the feedback resistors are properly selected. Additionally, a compensation capacitor may be required in some cases.
-
The LT1613CS5 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and thermal design.
-
Yes, the LT1613CS5 is qualified for automotive and high-reliability applications, but additional testing and validation may be required to meet specific industry standards.
-
To minimize EMI and RFI, use proper shielding, filtering, and grounding techniques, and ensure that the LT1613CS5 is placed in a shielded area of the PCB. Additionally, use a common-mode choke or ferrite bead to filter the input and output lines.
