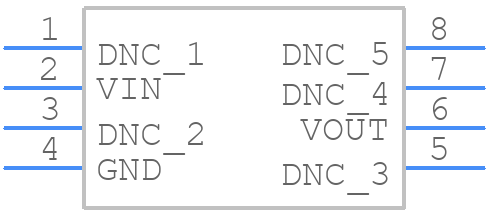

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1460DCS8-5#PBF by Analog Devices Inc
Results Overview of LT1460DCS8-5#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT1460DCS8-5#PBF Information
LT1460DCS8-5#PBF by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1460DCS8-5#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8044
|
Newark | Volt Ref, 5V, Soic-8, 0 To 70Deg C, Voltage Reference Type:Series, Product Range:Lt1460 Series, Reference Voltage Min:4.995V, Reference Voltage Max:5.005V, Initial Accuracy:0.1%, Temperature Coefficient:20Ppm/°C, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices LT1460DCS8-5#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$3.3900 / $6.2000 | Buy Now |
|
DISTI #
LT1460DCS8-5#PBF-ND
|
DigiKey | IC VREF SERIES 0.1% 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
272 In Stock |
|
$3.2500 / $7.7600 | Buy Now |
|
DISTI #
584-LT1460DCS8-5#PBF
|
Mouser Electronics | Voltage References uP Prec Series Ref Fam RoHS: Compliant | 198 |
|
$3.3700 / $6.2000 | Buy Now |
|
DISTI #
V36:1790_06414881
|
Arrow Electronics | V-Ref Precision 5V 20mA 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2446 | Americas - 34 |
|
$3.2110 / $3.6160 | Buy Now |
|
|
Analog Devices Inc | uP Prec Series Ref Fam Package Multiple: 100 | 1055 |
|
$2.6000 / $7.7600 | Buy Now |
|
DISTI #
LT1460DCS8-5PBF
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 100 | 0 |
|
$3.3600 / $3.6800 | Buy Now |
Part Details for LT1460DCS8-5#PBF
LT1460DCS8-5#PBF CAD Models
LT1460DCS8-5#PBF Part Data Attributes
|
|
LT1460DCS8-5#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1460DCS8-5#PBF
Analog Devices Inc
Micropower Precision Series Reference Family
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, LEAD FREE, PLASTIC, SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9025 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 5.005 V | |
| Output Voltage-Min | 4.995 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.752 mm | |
| Supply Voltage-Max (Vsup) | 20 V | |
| Supply Voltage-Min (Vsup) | 5.9 V | |
| Supply Voltage-Nom (Vsup) | 7.5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 20 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Width | 3.9 mm |
Alternate Parts for LT1460DCS8-5#PBF
This table gives cross-reference parts and alternative options found for LT1460DCS8-5#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1460DCS8-5#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1460DCS8-5 | Analog Devices Inc | Check for Price | Three Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8 | LT1460DCS8-5#PBF vs LT1460DCS8-5 |
| LT1460DCS8-5#TRPBF | Linear Technology | Check for Price | LT1460 - Micropower Precision Series Reference Family; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1460DCS8-5#PBF vs LT1460DCS8-5#TRPBF |
| LT1460DCS8-5#TRPBF | Analog Devices Inc | Check for Price | Micropower Precision Series Reference Family | LT1460DCS8-5#PBF vs LT1460DCS8-5#TRPBF |
| LT1460DCS8-51460 | Linear Technology | Check for Price | IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5 V, PDSO8, 0.150 INCH, PLASTIC, SOP-8, Voltage Reference | LT1460DCS8-5#PBF vs LT1460DCS8-51460 |
LT1460DCS8-5#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1460 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended compensation network values, keep the input and output capacitors close to the device, and use a low-ESR output capacitor. Also, avoid using long input traces and keep the device away from noise sources.
-
The LT1460 can deliver up to 5A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current limits and thermal derating.
-
The LT1460 is rated for operation up to 125°C, but its performance may degrade at high temperatures. Be sure to check the datasheet for thermal derating and consider using a heat sink or thermal management system if operating in high-temperature environments.
-
To protect the LT1460 from input voltage transients, use a TVS diode or a voltage clamp circuit at the input. Also, consider adding a fuse or a current limiter to prevent overcurrent conditions.
