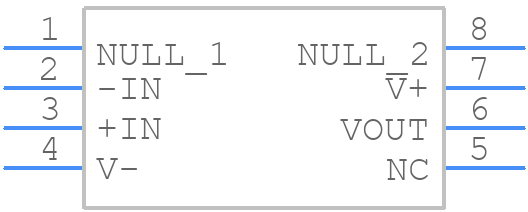

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1357CS8#TRPBF by Analog Devices Inc
Results Overview of LT1357CS8#TRPBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LT1357CS8#TRPBF Information
LT1357CS8#TRPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1357CS8#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AK6556
|
Newark | Op-Amp, Soic-8, -40 To 85Deg C Rohs Compliant: Yes |Analog Devices LT1357CS8#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1224 |
|
$5.3700 / $8.2100 | Buy Now |
|
DISTI #
LT1357CS8#TRPBFCT-ND
|
DigiKey | IC VOLTAGE FEEDBACK 1 CIRC 8SO Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6603 In Stock |
|
$5.1875 / $10.9700 | Buy Now |
|
DISTI #
584-LT1357CS8#TRPBF
|
Mouser Electronics | Operational Amplifiers - Op Amps 25MHz, 600V/ s Op Amp RoHS: Compliant | 8580 |
|
$5.1800 / $8.1500 | Buy Now |
|
DISTI #
V72:2272_06415349
|
Arrow Electronics | Op Amp Single High Speed Amplifier ±18V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Cut Strips | Americas - 2300 |
|
$5.3220 / $6.5700 | Buy Now |
|
|
Analog Devices Inc | 25MHz, 600V/us Op Amp Min Qty: 1 Package Multiple: 2500 | 6321 |
|
$4.1500 / $10.9700 | Buy Now |
|
DISTI #
LT1357CS8#TRPBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 2500 | 0 |
|
$5.3600 / $5.5700 | Buy Now |
Part Details for LT1357CS8#TRPBF
LT1357CS8#TRPBF CAD Models
LT1357CS8#TRPBF Part Data Attributes
|
|
LT1357CS8#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1357CS8#TRPBF
Analog Devices Inc
25MHz, 600V/µs Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, PLASTIC, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Input Offset Voltage-Max | 600 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 300 V/us | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 25000 | |
| Width | 3.9 mm |
Alternate Parts for LT1357CS8#TRPBF
This table gives cross-reference parts and alternative options found for LT1357CS8#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1357CS8#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1357CS8#PBF | Analog Devices Inc | $5.2392 | 25MHz, 600V/µs Op Amp | LT1357CS8#TRPBF vs LT1357CS8#PBF |
| LT1357CS8 | Analog Devices Inc | Check for Price | Operational Amplifier, 1 Func, 600uV Offset-Max, BIPolar, PDSO8 | LT1357CS8#TRPBF vs LT1357CS8 |
| LT1357CS8#PBF | Linear Technology | Check for Price | LT1357 - 25MHz, 600V/us Op Amp; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1357CS8#TRPBF vs LT1357CS8#PBF |
| LT1357CS8#TRPBF | Linear Technology | Check for Price | LT1357 - 25MHz, 600V/us Op Amp; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1357CS8#TRPBF vs LT1357CS8#TRPBF |
| LT1357CS8 | Linear Technology | Check for Price | LT1357 - 25MHz, 600V/us Op Amp; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1357CS8#TRPBF vs LT1357CS8 |
