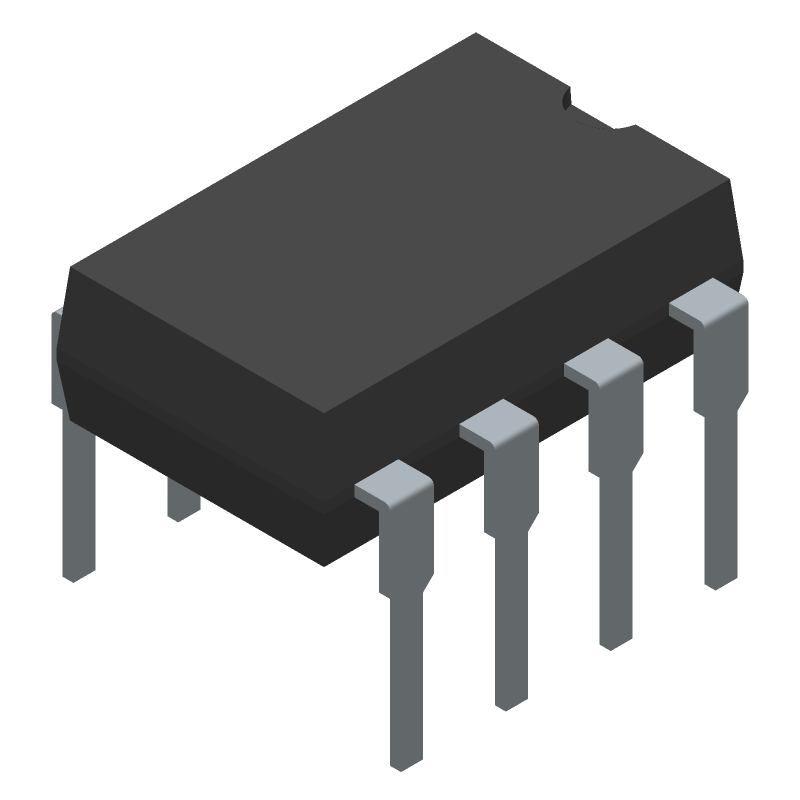

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT1010CN8 by Analog Devices Inc
Results Overview of LT1010CN8 by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT1010CN8 Information
LT1010CN8 by Analog Devices Inc is a Buffer Amplifier.
Buffer Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1010CN8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LT1010CN8
|
TME | IC: driver, amplifier buffer, DIP8, 150mA, 10V, Ch: 1, 4.5÷40VDC Min Qty: 1 | 0 |
|
$8.0600 / $12.4100 | RFQ |
Part Details for LT1010CN8
LT1010CN8 CAD Models
LT1010CN8 Part Data Attributes
|
|
LT1010CN8
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1010CN8
Analog Devices Inc
Buffer Amplifier, 1 Func, BIPolar, PDIP8
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | DIP-8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | BUFFER | |
| Average Bias Current-Max (IIB) | 800 µA | |
| Bandwidth (3dB)-Nom | 20 MHz | |
| Bias Current-Max (IIB) @25C | 500 µA | |
| Input Offset Voltage-Max | 100000 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e0 | |
| Length | 10.16 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -10 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.937 mm | |
| Slew Rate-Min | 75 V/us | |
| Supply Current-Max | 10 mA | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 10 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | OTHER | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for LT1010CN8
This table gives cross-reference parts and alternative options found for LT1010CN8. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1010CN8, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1010CN8 | Linear Technology | Check for Price | LT1010 - Fast 150mA Power Buffer; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C | LT1010CN8 vs LT1010CN8 |
