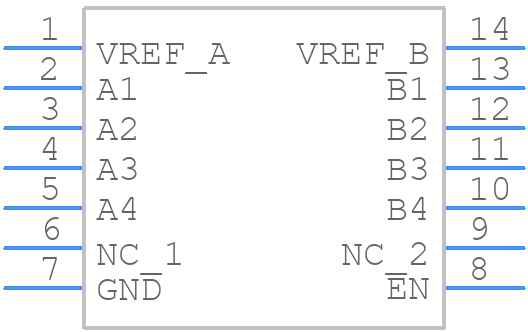

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LSF0204DPWR by Texas Instruments
Results Overview of LSF0204DPWR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Computing and Data Storage
Healthcare
Medical Imaging
LSF0204DPWR Information
LSF0204DPWR by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LSF0204DPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-LSF0204DPWR-ND
|
DigiKey | IC TRANSLATOR BIDIR 14TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
53736 In Stock |
|
$0.4200 | Buy Now |
|
DISTI #
296-40400-1-ND
|
DigiKey | IC TRANSLATOR BIDIR 14TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
2724 In Stock |
|
$0.3232 / $0.7500 | Buy Now |
|
DISTI #
595-LSF0204DPWR
|
Mouser Electronics | Translation - Voltage Levels 4Bit BidirectionalV Lev Transl 14-TSSOP RoHS: Compliant | 2046 |
|
$0.3160 / $0.6900 | Buy Now |
|
DISTI #
V72:2272_07295307
|
Arrow Electronics | Voltage Level Translator 4-CH Bidirectional 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2209 Container: Cut Strips | Americas - 110 |
|
$0.3091 / $0.4637 | Buy Now |
|
DISTI #
85989075
|
Verical | Voltage Level Translator 4-CH Bidirectional 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 817 Package Multiple: 1 Date Code: 1501 | Americas - 53736 |
|
$0.3163 / $0.4591 | Buy Now |
|
|
Rochester Electronics | LSF0204 - 4-bit bidirectional multi-voltage level translator RoHS: Compliant Status: Active Min Qty: 1 | 53736 |
|
$0.2530 / $0.4081 | Buy Now |
|
|
LCSC | 1.8V5.5V 1 4 800mV4.5V TSSOP-14 Translators Level Shifters ROHS | 912 |
|
$0.3504 / $0.7098 | Buy Now |
Part Details for LSF0204DPWR
LSF0204DPWR CAD Models
LSF0204DPWR Part Data Attributes
|
|
LSF0204DPWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LSF0204DPWR
Texas Instruments
4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push-Pull 14-TSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 0.0125 mA | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for LSF0204DPWR
This table gives cross-reference parts and alternative options found for LSF0204DPWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LSF0204DPWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LSF0204YZPR | Texas Instruments | $0.3814 | 4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push- Pull 12-DSBGA -40 to 125 | LSF0204DPWR vs LSF0204YZPR |
| LSF0204RGYR | Texas Instruments | $0.3885 | 4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push- Pull 14-VQFN -40 to 125 | LSF0204DPWR vs LSF0204RGYR |
| LSF0204DRUTR | Texas Instruments | $0.3885 | 4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push-Pull 12-UQFN -40 to 125 | LSF0204DPWR vs LSF0204DRUTR |
| LSF0204QPWRQ1 | Texas Instruments | $0.4168 | Automotive 4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain or Push- Pull Interface 14-TSSOP -40 to 125 | LSF0204DPWR vs LSF0204QPWRQ1 |
| LSF0204RUTR | Texas Instruments | $0.5145 | 4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push- Pull 12-UQFN -40 to 125 | LSF0204DPWR vs LSF0204RUTR |
| LSF0204PW | Nexperia | Check for Price | Interface Circuit | LSF0204DPWR vs LSF0204PW |
LSF0204DPWR Frequently Asked Questions (FAQ)
-
A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
-
Ensure that the device is operated within the recommended operating temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Also, consider derating the device's power handling capability at high temperatures.
-
The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it is recommended to keep the input voltage below 5V to ensure proper switching and to prevent damage to the device.
-
Use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and use a common-mode choke or ferrite bead on the input lines to reduce EMI emissions. Also, ensure that the PCB layout is optimized for minimal radiation.
-
A 10nF to 100nF ceramic capacitor is recommended for input decoupling. This helps to filter out high-frequency noise and ensures stable operation.
