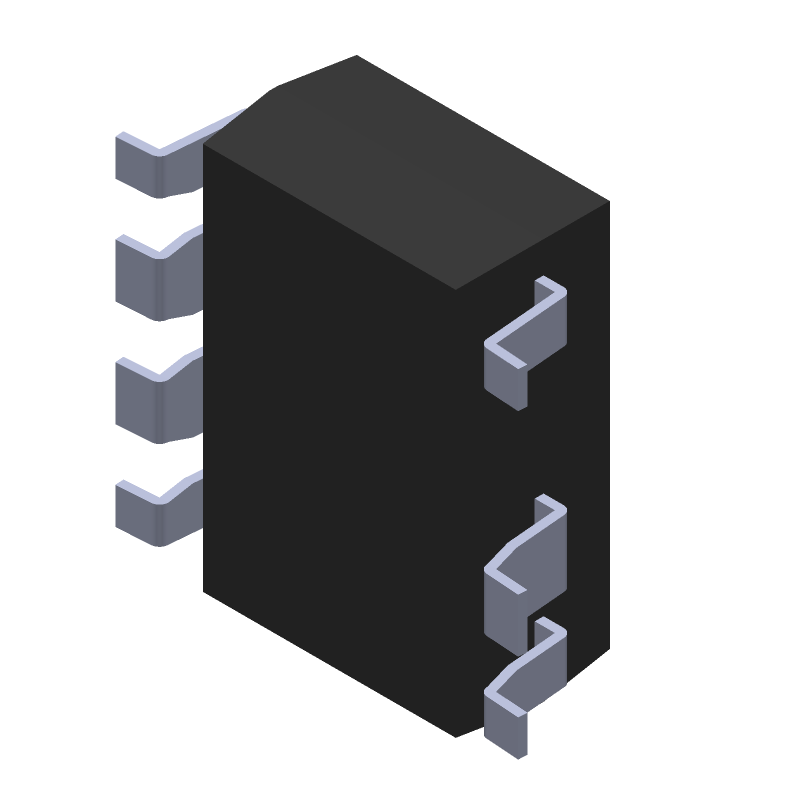

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LNK306GN-TL by Power Integrations
Results Overview of LNK306GN-TL by Power Integrations
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LNK306GN-TL Information
LNK306GN-TL by Power Integrations is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LNK306GN-TL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3582546RL
|
Farnell | AC/DC CONVERTER, BUCK/BUCK-BOOST/FLYBACK RoHS: Compliant Min Qty: 100 Lead time: 9 Weeks, 1 Days Container: Reel | 537 |
|
$0.8070 / $0.9933 | Buy Now |
|
DISTI #
3582546
|
Farnell | AC/DC CONVERTER, BUCK/BUCK-BOOST/FLYBACK RoHS: Compliant Min Qty: 1 Lead time: 9 Weeks, 1 Days Container: Cut Tape | 537 |
|
$0.8070 / $1.2024 | Buy Now |
|
DISTI #
596-1026-1-ND
|
DigiKey | IC OFFLINE SWITCH MULT TOP 8SMD Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5473 In Stock |
|
$0.7000 / $1.1100 | Buy Now |
|
DISTI #
LNK306GN-TL
|
Avnet Americas | AC/DC Converter, Buck/Buck-Boost/Flyback, 85 to 265 VAC In, SMD-8 - Tape and Reel (Alt: LNK306GN-TL) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.6576 / $0.7007 | Buy Now |
|
DISTI #
869-LNK306GN-TL
|
Mouser Electronics | AC/DC Converters 225mA MDCM 360mA CCM RoHS: Compliant | 162037 |
|
$0.7000 / $1.1100 | Buy Now |
|
|
Bristol Electronics | 1284 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 23 |
|
$1.4625 / $1.9500 | Buy Now |
|
|
Bristol Electronics | 19 |
|
RFQ | ||
|
|
Quest Components | 1.4 A SWITCHING REGULATOR, 70 KHZ SWITCHING FREQ-MAX, PDSO8 | 1027 |
|
$0.8663 / $2.1000 | Buy Now |
|
|
Quest Components | 1.4 A SWITCHING REGULATOR, 70 KHZ SWITCHING FREQ-MAX, PDSO8 | 18 |
|
$1.6250 / $2.6000 | Buy Now |
Part Details for LNK306GN-TL
LNK306GN-TL CAD Models
LNK306GN-TL Part Data Attributes
|
|
LNK306GN-TL
Power Integrations
Buy Now
Datasheet
|
Compare Parts:
LNK306GN-TL
Power Integrations
Switching Regulator, 1.4A, 70kHz Switching Freq-Max, PDSO8, SMD-8/7
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | POWER INTEGRATIONS INC | |
| Part Package Code | SOIC | |
| Package Description | SMD-8/7 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Power Integrations | |
| Additional Feature | REQUIRES AN AC SUPPLY OF 85 TO 256V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 9.575 mm | |
| Moisture Sensitivity Level | 4 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.68 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 70 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 6.35 mm |
Alternate Parts for LNK306GN-TL
This table gives cross-reference parts and alternative options found for LNK306GN-TL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LNK306GN-TL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LNK306GN | Power Integrations | Check for Price | Switching Regulator, 1.4A, 70kHz Switching Freq-Max, PDSO8, SMD-8/7 | LNK306GN-TL vs LNK306GN |
| LNK306GTL | Power Integrations | Check for Price | 1.4A SWITCHING REGULATOR, 70kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SMD-8 | LNK306GN-TL vs LNK306GTL |
LNK306GN-TL Frequently Asked Questions (FAQ)
-
The maximum output power of LNK306GN-TL depends on the input voltage, output voltage, and other design parameters. However, Power Integrations recommends a maximum output power of 6.5W for this device.
-
To ensure reliable start-up of LNK306GN-TL, make sure to provide a stable input voltage, use a suitable input capacitor, and ensure that the output voltage is within the recommended range. Also, follow the recommended PCB layout and thermal design guidelines.
-
The recommended input capacitor value for LNK306GN-TL is 10uF to 22uF, with a voltage rating of at least 1.5 times the maximum input voltage. A higher capacitance value can help improve input voltage ripple rejection and reduce electromagnetic interference (EMI).
-
To optimize the thermal design for LNK306GN-TL, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Also, consider using thermal interface materials and thermal vias to improve heat dissipation.
-
The maximum ambient temperature range for LNK306GN-TL is -40°C to 85°C. However, the device can operate at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
