LMT86LPM Information
LMT86LPM by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for LMT86LPM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-LMT86LPM-ND
|
DigiKey | SENSOR ANALOG -50C-150C TO92-3 Min Qty: 1 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
55649 In Stock |
|
$0.3300 | Buy Now |
|
DISTI #
296-46127-1-ND
|
DigiKey | SENSOR ANALOG -50C-150C TO92-3 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
2172 In Stock |
|
$0.2880 / $0.5600 | Buy Now |
|
DISTI #
595-LMT86LPM
|
Mouser Electronics | Board Mount Temperature Sensors Analog Temperature S ensor A 595-LMT86LP RoHS: Compliant | 3185 |
|
$0.2960 / $0.5600 | Buy Now |
|
DISTI #
85991829
|
Verical | Temp Sensor Analog 3-Pin TO-92 T/R RoHS: Compliant Min Qty: 953 Package Multiple: 1 Date Code: 1401 | Americas - 55649 |
|
$0.3938 | Buy Now |
|
|
Rochester Electronics | LMT86 2.2V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92 RoHS: Compliant Status: Active Min Qty: 1 | 55649 |
|
$0.1953 / $0.3150 | Buy Now |
|
|
LCSC | 2.7 TO-92 Temperature Sensors ROHS | 187 |
|
$0.6865 / $1.0531 | Buy Now |
|
|
Vyrian | Sensors & Transducers | 47680 |
|
RFQ |
Part Details for LMT86LPM

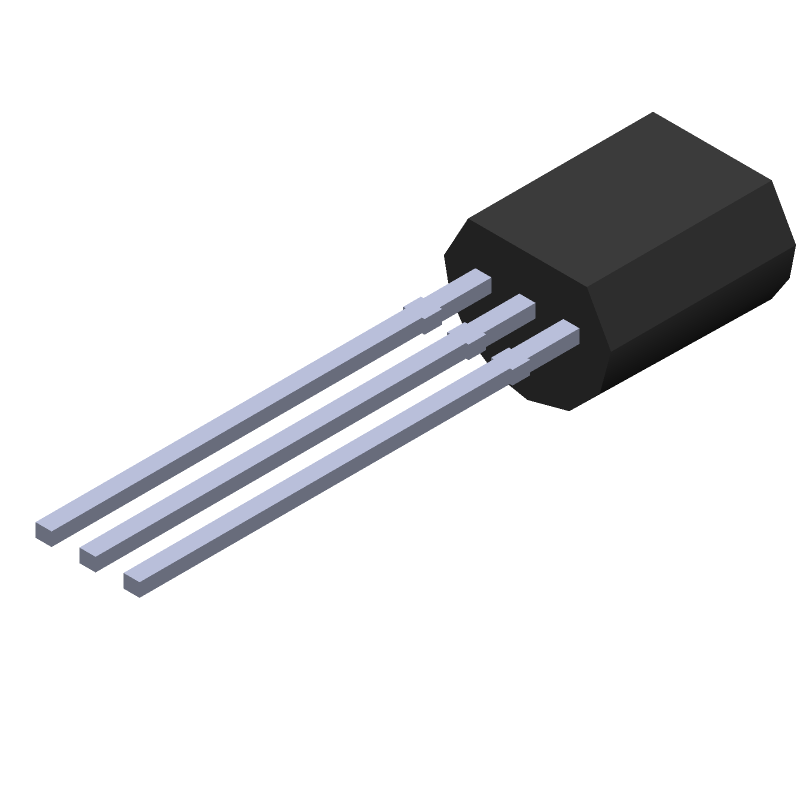

LMT86LPM CAD Models
LMT86LPM Part Data Attributes
|
|
LMT86LPM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMT86LPM
Texas Instruments
2.2V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92 3-TO-92 -50 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | GREEN, PLASTIC, TO-92, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 2.7 Cel | |
| Body Height | 6.1 mm | |
| Body Length or Diameter | 4.83 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 3 | |
| Operating Current-Max | 0.0081 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape/Style | CYLINDRICAL | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.2 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
