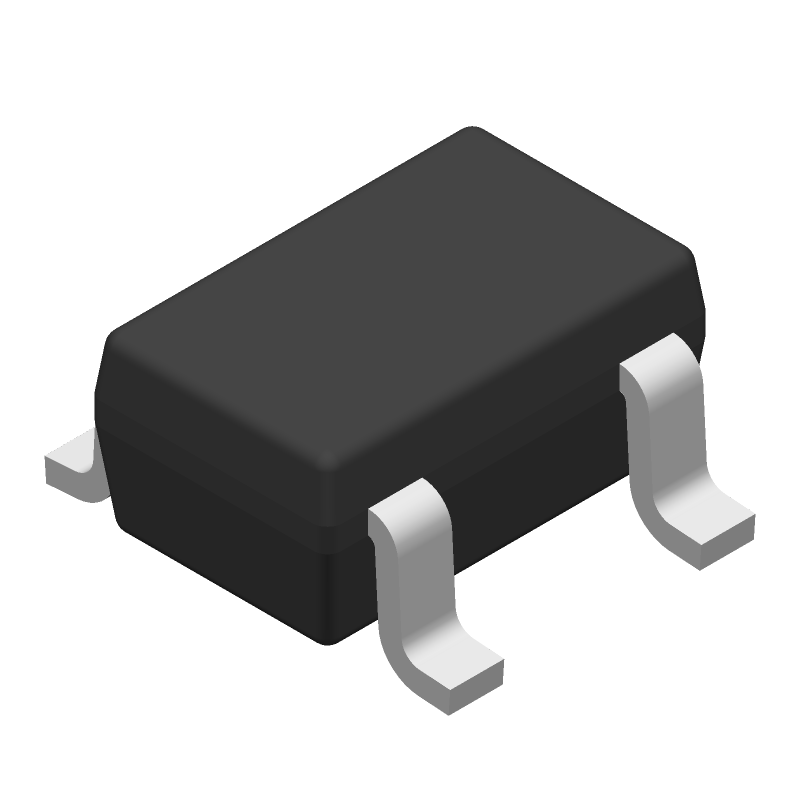

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMT85QDCKTQ1 by Texas Instruments
Results Overview of LMT85QDCKTQ1 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LMT85QDCKTQ1 Information
LMT85QDCKTQ1 by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for LMT85QDCKTQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-LMT85QDCKTQ1-ND
|
DigiKey | SENSOR ANALOG -50C-150C SC70 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
5207 In Stock |
|
$0.6800 | Buy Now |
|
DISTI #
296-36414-1-ND
|
DigiKey | SENSOR ANALOG -50C-150C SC70 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
276 In Stock |
|
$0.7501 / $1.0500 | Buy Now |
|
DISTI #
86279366
|
Verical | Temperature Sensor Analog 5-Pin SC-70 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 459 Package Multiple: 1 Date Code: 1701 | Americas - 5000 |
|
$0.8171 | Buy Now |
|
|
Rochester Electronics | LMT85-Q1 Automotive Grade, 1.8V-Capable, 10 uA Analog Output Temperature Sensor RoHS: Compliant Status: Obsolete Min Qty: 1 | 5207 |
|
$0.4053 / $0.6537 | Buy Now |
Part Details for LMT85QDCKTQ1
LMT85QDCKTQ1 CAD Models
LMT85QDCKTQ1 Part Data Attributes
|
|
LMT85QDCKTQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMT85QDCKTQ1
Texas Instruments
Automotive Grade, 1.8V-Capable, 10 uA Analog Output Temperature Sensor 5-SC70 -50 to 150
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 2.7 Cel | |
| Additional Feature | SHORT CIRCUIT PROTECTION | |
| Body Breadth | 1.25 mm | |
| Body Height | 0.95 mm | |
| Body Length or Diameter | 2 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 5 | |
| Operating Current-Max | 0.0081 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape/Style | RECTANGULAR | |
| Screening Level | AEC-Q100 | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
LMT85QDCKTQ1 Frequently Asked Questions (FAQ)
-
The typical power consumption of the LMT85QDCKTQ1 is 10 μA, making it suitable for battery-powered applications.
-
The LMT85QDCKTQ1 has an accuracy of ±0.5°C from -20°C to 100°C, and ±1°C from -40°C to 150°C, making it suitable for a wide range of applications.
-
The response time of the LMT85QDCKTQ1 is typically 10 ms, allowing for fast and accurate temperature measurements.
-
Yes, the LMT85QDCKTQ1 is compatible with both 3.3V and 5V systems, making it a versatile temperature sensor for a wide range of applications.
-
No, the LMT85QDCKTQ1 does not require any external components, making it a simple and easy-to-use temperature sensor.
