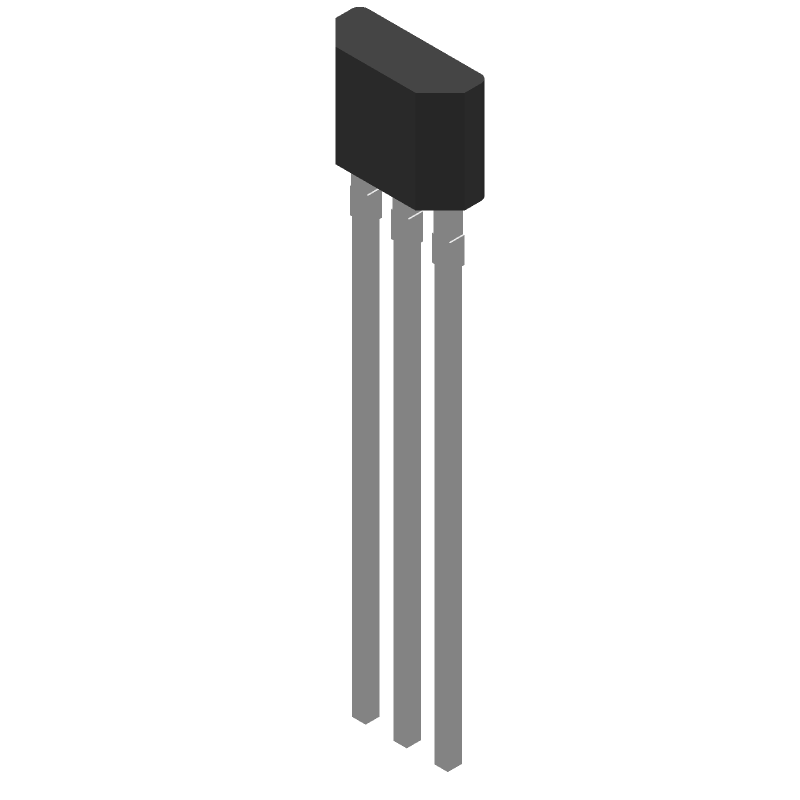

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMT85LPGM by Texas Instruments
Results Overview of LMT85LPGM by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LMT85LPGM Information
LMT85LPGM by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for LMT85LPGM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LMT85LPGMCT-ND
|
DigiKey | SENSOR ANALOG -50C-150C TO92-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
2433 In Stock |
|
$0.3176 / $0.7000 | Buy Now |
|
DISTI #
595-LMT85LPGM
|
Mouser Electronics | Board Mount Temperature Sensors 1.8V-Capable 10 uA Analog Output Temper A 595-LMT85LPG RoHS: Compliant | 1 |
|
$0.3360 / $0.7000 | Buy Now |
|
DISTI #
V72:2272_18291008
|
Arrow Electronics | Temperature Sensor Analog 3-Pin TO-92 Ammo RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1727 Container: Cut Strips | Americas - 1228 |
|
$0.2934 / $0.4275 | Buy Now |
|
DISTI #
LMT85LPGM
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2125 |
|
$0.1640 / $0.4220 | Buy Now |
Part Details for LMT85LPGM
LMT85LPGM CAD Models
LMT85LPGM Part Data Attributes
|
|
LMT85LPGM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMT85LPGM
Texas Instruments
1.8V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92 3-TO-92 -50 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 2.7 Cel | |
| Additional Feature | AEC-Q100; SHORT CIRCUIT PROTECTION | |
| Body Breadth | 1.52 mm | |
| Body Height | 5.05 mm | |
| Body Length or Diameter | 4 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 3 | |
| Operating Current-Max | 0.0081 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.8 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
LMT85LPGM Frequently Asked Questions (FAQ)
-
The LMT85LPGM can operate from -40°C to 150°C, but the accuracy specifications are only guaranteed from -20°C to 100°C.
-
To ensure accuracy, it's essential to follow proper PCB layout and thermal design guidelines, minimize thermal gradients, and calibrate the device if necessary.
-
The recommended power-up sequence is to apply VCC first, followed by the input voltage (VIN) and then the digital interface (SCL and SDA).
-
To minimize noise sensitivity, use a low-pass filter on the input voltage, ensure a clean power supply, and use a ground plane to reduce electromagnetic interference (EMI).
-
The typical current consumption of the LMT85LPGM is around 10 μA, but this can vary depending on the operating frequency and mode.
