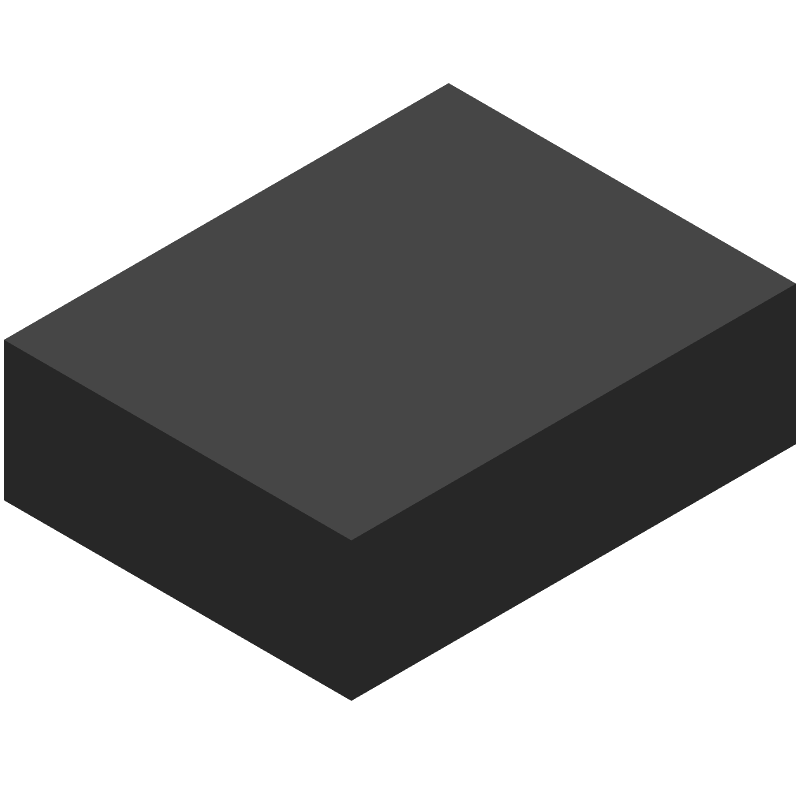

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMK6CE03333CDLER by Texas Instruments
Results Overview of LMK6CE03333CDLER by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
LMK6CE03333CDLER Information
LMK6CE03333CDLER by Texas Instruments is a Fixed Clock SAW Oscillator.
Fixed Clock SAW Oscillators are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for LMK6CE03333CDLER
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LMK6CE03333CDLERCT-ND
|
DigiKey | SILIC OSC XO 33.3330MHZ LVCMOS Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2953 In Stock |
|
$1.7698 / $3.3300 | Buy Now |
|
DISTI #
595-LMK6CE03333CDLER
|
Mouser Electronics | Standard Clock Oscillators Low-jitter high-per formance bulk-acous RoHS: Compliant | 2988 |
|
$1.7600 / $3.1400 | Buy Now |
Part Details for LMK6CE03333CDLER
LMK6CE03333CDLER CAD Models
LMK6CE03333CDLER Part Data Attributes
|
|
LMK6CE03333CDLER
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMK6CE03333CDLER
Texas Instruments
Low-jitter, high-performance, bulk-acoustic-wave (BAW) fixed-frequency LVCMOS oscillator 4-VSON -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VSON, 4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ENABLE/DISABLE FUNCTION; MIL-STD-883F | |
| Frequency Stability | 25% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 3.333 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | BAW OSCILLATOR | |
| Package Equivalence Code | DILCC4,.12,83 | |
| Physical Dimension | 3.3mm x 2.6mm x 1.1mm | |
| Supply Voltage-Max | 1.89 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
