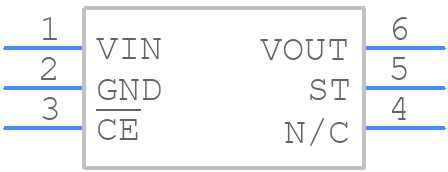

Part Symbol
-
Footprint
-

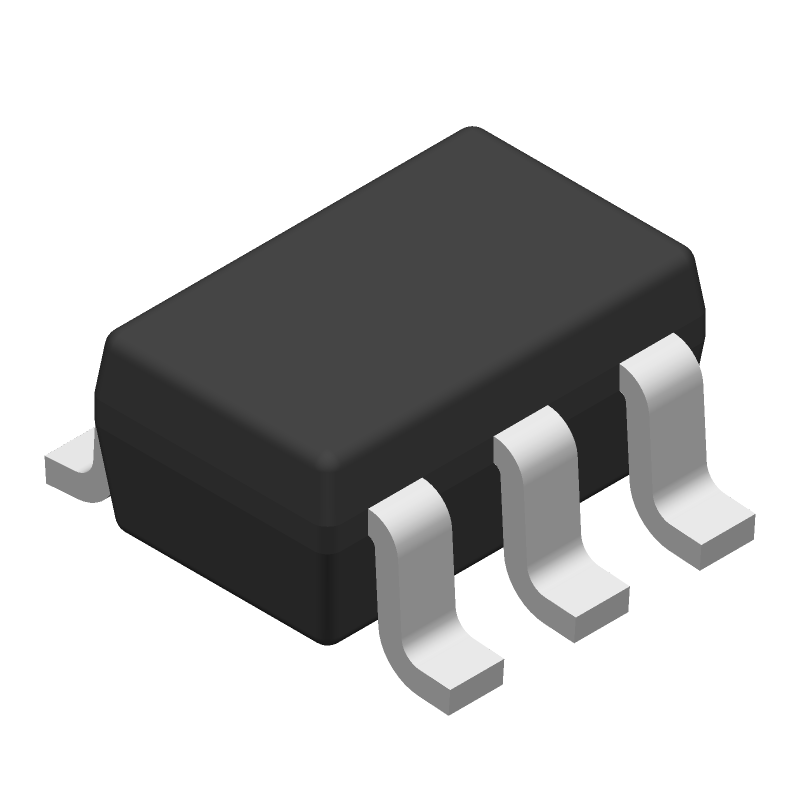

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM66100DCKT by Texas Instruments
Results Overview of LM66100DCKT by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LM66100DCKT Information
LM66100DCKT by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for LM66100DCKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-53540-1-ND
|
DigiKey | IC OR CTRLR IDEAL DIODE SC70-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2396 In Stock |
|
$0.3583 / $0.8300 | Buy Now |
|
DISTI #
595-LM66100DCKT
|
Mouser Electronics | Hot Swap Voltage Controllers 1.5-V to 5.5-V 1.5- A 0.5-uA IQ ideal d A 595-LM66100DCKR RoHS: Compliant | 74764 |
|
$0.3720 / $0.8300 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 77702 |
|
RFQ | |
|
|
Win Source Electronics | IC OR CTRLR IDEAL DIODE SC70-6 / OR Controller P-Channel 1:1 SC-70-6 | 63200 |
|
$0.0924 / $0.1194 | Buy Now |
Part Details for LM66100DCKT
LM66100DCKT CAD Models
LM66100DCKT Part Data Attributes
|
|
LM66100DCKT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM66100DCKT
Texas Instruments
1.5-V to 5.5-V, 1.5-A, 0.5-µA IQ ideal diode with integrated FET 6-SC70 -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SC-70, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.5 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.5 V | |
| Supply Voltage-Nom (Vsup) | 3.6 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
LM66100DCKT Frequently Asked Questions (FAQ)
-
A good PCB layout for the LM66100DCKT should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces near the device to minimize thermal resistance.
-
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and ESR (less than 1 ohm). Also, ensure that the feedback resistors are of high precision and low tolerance.
-
The maximum input voltage that can be applied to the LM66100DCKT is 42V. Exceeding this voltage may cause damage to the device. It's recommended to add input voltage protection, such as a TVS diode, to prevent overvoltage conditions.
-
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (f * Cout), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and Cout is the output capacitance.
-
A ceramic or film capacitor with a value of at least 10uF and a voltage rating of 50V or higher is recommended for the input capacitor. This helps to filter out input voltage noise and ensure stable operation.
