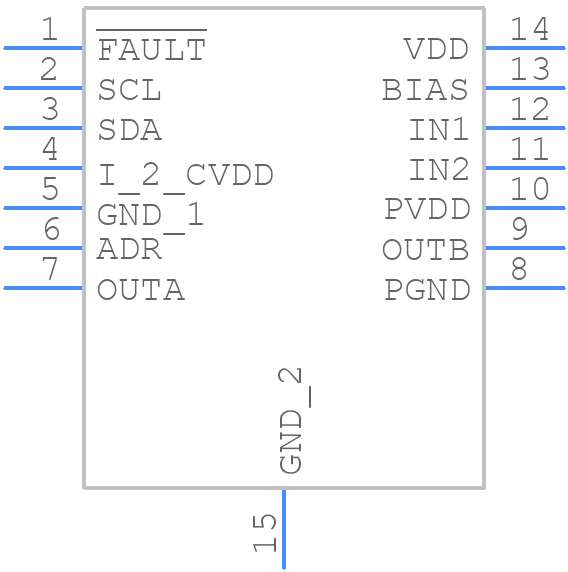

Part Symbol
-

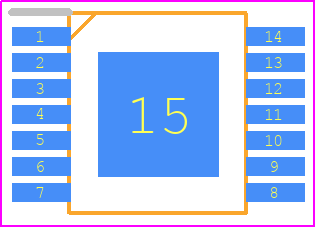

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM48100QMH/NOPB by Texas Instruments
Results Overview of LM48100QMH/NOPB by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Price & Stock for LM48100QMH/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM48100QMH/NOPB-ND
|
DigiKey | IC AMP AB MONO 1.6W 14HTSSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube |
106 In Stock |
|
$1.4252 / $2.7700 | Buy Now |
|
DISTI #
926-LM48100QMH/NOPB
|
Mouser Electronics | Audio Amplifiers 1.3-W mono analog input Class-AB audio A 926-LM48100QMHE/NOPB RoHS: Compliant | 1175 |
|
$1.3700 / $4.0600 | Buy Now |
|
DISTI #
J56:1989_00538761
|
Arrow Electronics | Audio Amp Speaker 1-CH Mono 1.6W Class-AB Automotive AEC-Q100 14-Pin HTSSOP EP Tube RoHS: Compliant Min Qty: 94 Package Multiple: 94 Lead time: 18 Weeks Date Code: 2237 | Europe - 94 |
|
$1.2280 / $1.2390 | Buy Now |
|
DISTI #
86279653
|
Verical | Audio Amp Speaker 1-CH Mono 1.6W Class-AB Automotive AEC-Q100 14-Pin HTSSOP EP Tube RoHS: Compliant Min Qty: 228 Package Multiple: 1 Date Code: 1701 | Americas - 3132 |
|
$1.3875 / $1.6500 | Buy Now |
|
|
Rochester Electronics | LM48100Q-Q1 Mono 1.3W Audio Power Amplifier with Output Fault Detection and Volume Control RoHS: Compliant Status: Active Min Qty: 1 | 3404 |
|
$1.1100 / $1.3900 | Buy Now |
|
DISTI #
LM48100QMH/NOPB
|
TME | IC: audio amplifier, Pout: 1.3W, 1.8÷5.5VDC,3÷5.5VDC, Ch: 1, 8Ω, 9mA Min Qty: 1 | 0 |
|
$1.9600 / $2.8800 | RFQ |
Part Details for LM48100QMH/NOPB
LM48100QMH/NOPB CAD Models
LM48100QMH/NOPB Part Data Attributes
|
|
LM48100QMH/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM48100QMH/NOPB
Texas Instruments
1.3-W, mono, analog input Class-AB audio amplifier with output fault detection 14-HTSSOP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | GREEN, TSSOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Consumer IC Type | VOLUME CONTROL CIRCUIT | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Noise Figure-Nom | 104 dB | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 2.4 W | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 10.8 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for LM48100QMH/NOPB
This table gives cross-reference parts and alternative options found for LM48100QMH/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM48100QMH/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM48100QMH | National Semiconductor Corporation | Check for Price | IC VOLUME CONTROL CIRCUIT, PDSO14, TSSOP-14, Audio Control IC | LM48100QMH/NOPB vs LM48100QMH |
| LM48100QMHE | National Semiconductor Corporation | Check for Price | IC VOLUME CONTROL CIRCUIT, PDSO14, TSSOP-14, Audio Control IC | LM48100QMH/NOPB vs LM48100QMHE |
| LM48100QMH/NOPB | National Semiconductor Corporation | Check for Price | IC VOLUME CONTROL CIRCUIT, PDSO14, GREEN, TSSOP-14, Audio Control IC | LM48100QMH/NOPB vs LM48100QMH/NOPB |
| LM48100QMHX/NOPB | National Semiconductor Corporation | Check for Price | IC VOLUME CONTROL CIRCUIT, PDSO14, GREEN, TSSOP-14, Audio Control IC | LM48100QMH/NOPB vs LM48100QMHX/NOPB |
LM48100QMH/NOPB Frequently Asked Questions (FAQ)
-
A good PCB layout for the LM48100QMH/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the device.
-
To ensure proper biasing, make sure to connect the BYPASS pin to a suitable capacitor (e.g., 10uF) and connect the SHUTDOWN pin to a logic-level signal (e.g., 3.3V or 5V) to enable the device. Also, ensure the input voltage is within the recommended range (2.7V to 5.5V) and the output load is within the specified range (up to 100mA).
-
The recommended input capacitor value for the LM48100QMH/NOPB is 10uF to 22uF, with a voltage rating of at least 6.3V. A larger capacitor value can help improve the power supply rejection ratio (PSRR) and reduce output noise.
-
To reduce noise and ripple in the output of the LM48100QMH/NOPB, use a low-ESR output capacitor (e.g., 10uF to 22uF) and ensure the input voltage is well-regulated. Additionally, consider adding a noise-reducing component, such as a ferrite bead or a common-mode choke, in series with the output.
-
The maximum operating temperature range for the LM48100QMH/NOPB is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
