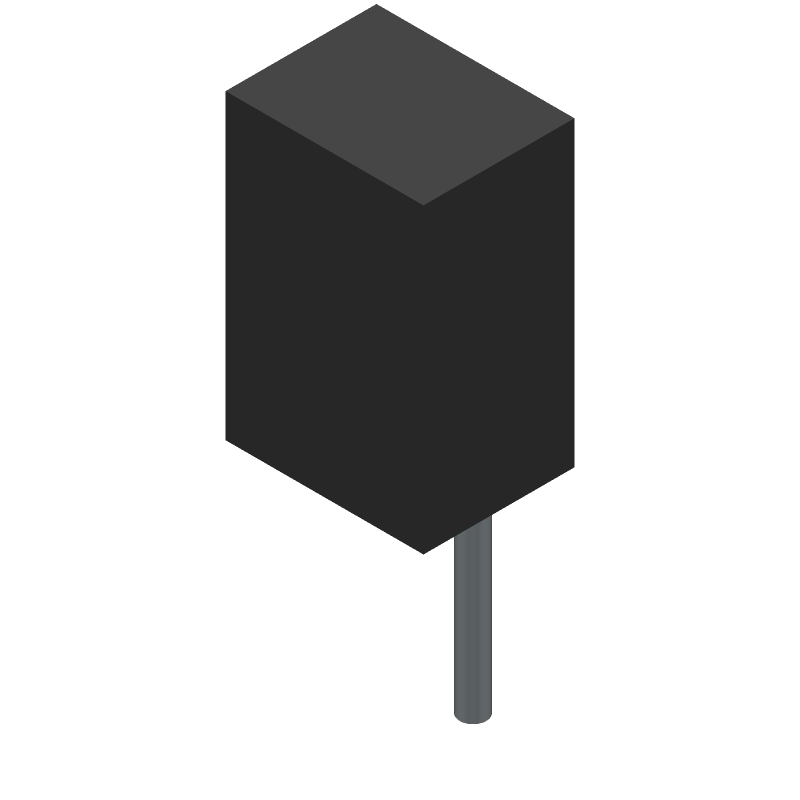

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM4041D12ILPE3 by Texas Instruments
Results Overview of LM4041D12ILPE3 by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Automotive
LM4041D12ILPE3 Information
LM4041D12ILPE3 by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for LM4041D12ILPE3
LM4041D12ILPE3 CAD Models
LM4041D12ILPE3 Part Data Attributes
|
|
LM4041D12ILPE3
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM4041D12ILPE3
Texas Instruments
1.2-V precision micropower shunt voltage reference with 1% accuracy 3-TO-92 -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-92 | |
| Package Description | ROHS COMPLIANT, PLASTIC, TO-226, TO-92, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 1.225V TO 10V | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | O-PBCY-W3 | |
| JESD-609 Code | e3 | |
| Length | 4.3 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 1.237 V | |
| Output Voltage-Min | 1.213 V | |
| Output Voltage-Nom | 1.225 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.6 mm | |
| Supply Voltage-Max (Vsup) | 10 V | |
| Supply Voltage-Min (Vsup) | 1.225 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 150 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | WIRE | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 1% | |
| Width | 4.3 mm |
Alternate Parts for LM4041D12ILPE3
This table gives cross-reference parts and alternative options found for LM4041D12ILPE3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM4041D12ILPE3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM4041D12ILP | Texas Instruments | $0.3410 | 1.2-V precision micropower shunt voltage reference with 1% accuracy 3-TO-92 -40 to 85 | LM4041D12ILPE3 vs LM4041D12ILP |
| LM4041C12ILPR | Texas Instruments | $0.4050 | 1.2-V precision micropower shunt voltage reference with 0.5% accuracy 3-TO-92 -40 to 85 | LM4041D12ILPE3 vs LM4041C12ILPR |
| LM4041AIZ-1.2/NOPB | Texas Instruments | $1.1031 | Fixed & adjustable, 45-µA, precision micropower shunt voltage reference 3-TO-92 -40 to 85 | LM4041D12ILPE3 vs LM4041AIZ-1.2/NOPB |
| SPX4041N-L/TR | Sipex Corporation | Check for Price | Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PBCY3, LEAD FREE, TO-92, 3 PIN | LM4041D12ILPE3 vs SPX4041N-L/TR |
| LM4041EIZ-1.2 | Microchip Technology Inc | Check for Price | Two Terminal Voltage Reference, 1 Output, 1.225V, BIPolar, PBCY3, TO-92, 3 PIN | LM4041D12ILPE3 vs LM4041EIZ-1.2 |
| LM4041EIZ-1.2 | Texas Instruments | Check for Price | 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.225V, PBCY3, PLASTIC, TO-92, 3 PIN | LM4041D12ILPE3 vs LM4041EIZ-1.2 |
| LM4041AIZ-1.2 | Microchip Technology Inc | Check for Price | Two Terminal Voltage Reference, 1 Output, 1.225V, BIPolar, PBCY3, TO-92, 3 PIN | LM4041D12ILPE3 vs LM4041AIZ-1.2 |
| TS4041EIZ-1.2 | STMicroelectronics | Check for Price | 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.225V, PBCY3, PLASTIC, TO-92, 3 PIN | LM4041D12ILPE3 vs TS4041EIZ-1.2 |
