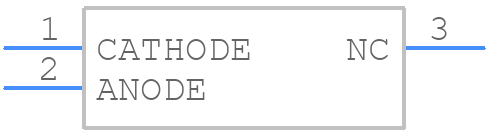

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM4040C10IDBZR by Texas Instruments
Results Overview of LM4040C10IDBZR by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Healthcare
Medical Imaging
LM4040C10IDBZR Information
LM4040C10IDBZR by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM4040C10IDBZR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AH7190
|
Newark | Voltage Ref, Shunt, 10V, Sot-23-3, Voltage Reference Type:Shunt - Fixed, Product Range:-, Reference Voltage:10V, Initial Accuracy:0.5%, Temperature Coefficient:± 40Ppm/°C, Voltage Reference Case Style:Sot-23, No. Of Pins:3Pins, Rohs Compliant: Yes |Texas Instruments LM4040C10IDBZR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 138 |
|
$0.7250 / $0.9380 | Buy Now |
|
DISTI #
296-20882-1-ND
|
DigiKey | IC VREF SHUNT 0.5% SOT23-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
7602 In Stock |
|
$0.3833 / $0.8700 | Buy Now |
|
DISTI #
2156-LM4040C10IDBZR-ND
|
DigiKey | IC VREF SHUNT 0.5% SOT23-3 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
283 In Stock |
|
$0.4300 | Buy Now |
|
DISTI #
595-LM4040C10IDBZR
|
Mouser Electronics | Voltage References 10-V Prec Micropower Shunt 0.5% accuracy A 595-LM4040C10IDBZT RoHS: Compliant | 2582 |
|
$0.3600 / $0.8700 | Buy Now |
|
|
Bristol Electronics | 2011 |
|
RFQ | ||
|
|
Rochester Electronics | LM4040 Precision micropower shunt voltage reference RoHS: Compliant Status: Active Min Qty: 1 | 283 |
|
$0.2541 / $0.4098 | Buy Now |
|
DISTI #
LM4040C10IDBZR
|
TME | IC: voltage reference source, 10V, ±0.5%, SOT23, reel,tape, 15mA Min Qty: 1 | 0 |
|
$0.4790 / $0.7120 | RFQ |
|
|
LCSC | 10V 0.5% 15mA Fixed SOT-23 Voltage Reference ROHS | 5842 |
|
$0.3227 / $0.5347 | Buy Now |
|
|
Win Source Electronics | IC VREF SHUNT 10V SOT23-3 | 4221 |
|
$0.4859 / $0.7288 | Buy Now |
Part Details for LM4040C10IDBZR
LM4040C10IDBZR CAD Models
LM4040C10IDBZR Part Data Attributes
|
|
LM4040C10IDBZR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM4040C10IDBZR
Texas Instruments
Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e4 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 10.05 V | |
| Output Voltage-Min | 9.95 V | |
| Output Voltage-Nom | 10 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 150 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.5% | |
| Width | 1.3 mm |
