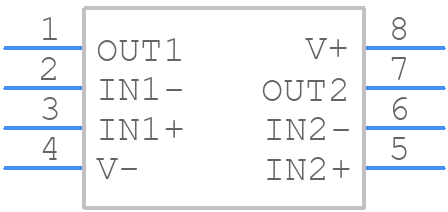

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM2904LVQDRQ1 by Texas Instruments
Results Overview of LM2904LVQDRQ1 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM2904LVQDRQ1 Information
LM2904LVQDRQ1 by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM2904LVQDRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM2904LVQDRQ1CT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21496 In Stock |
|
$0.1008 / $0.2700 | Buy Now |
|
DISTI #
595-LM2904LVQDRQ1
|
Mouser Electronics | Operational Amplifiers - Op Amps Automotive-grade du al 5.5-V 1-MHz 3- RoHS: Compliant | 54244 |
|
$0.0980 / $0.2500 | Buy Now |
|
DISTI #
LM2904LVQDRQ1
|
TME | IC: operational amplifier, 1MHz, Ch: 2, SO8, 2.7÷6VDC, reel,tape Min Qty: 5 | 0 |
|
$0.0973 / $0.1590 | RFQ |
|
|
LCSC | Dual 15pA 1.5V/us 5mV SOIC-8 Operational Amplifier ROHS | 1300 |
|
$0.1010 / $0.2047 | Buy Now |
Part Details for LM2904LVQDRQ1
LM2904LVQDRQ1 CAD Models
LM2904LVQDRQ1 Part Data Attributes
|
|
LM2904LVQDRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2904LVQDRQ1
Texas Instruments
Automotive-grade, dual, 5.5-V, 1-MHz, 3-mV offset voltage operational amplifier 8-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 2020-08-21 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Common-mode Reject Ratio-Min | 63 dB | |
| Common-mode Reject Ratio-Nom | 92 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUT LINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 1.5 V/us | |
| Supply Current-Max | 0.32 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1000 | |
| Wideband | NO | |
| Width | 3.9 mm |
LM2904LVQDRQ1 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LM2904LVQDRQ1 is -40°C to 125°C.
-
Yes, the LM2904LVQDRQ1 is designed to withstand high-vibration environments and is suitable for use in automotive and industrial applications.
-
To ensure EMC with the LM2904LVQDRQ1, follow proper PCB design and layout guidelines, use shielding and filtering, and ensure that the device is properly grounded.
-
The recommended power-up sequence for the LM2904LVQDRQ1 is to apply the power supply voltage (VCC) before applying the input signals.
-
Yes, the LM2904LVQDRQ1 is suitable for use in battery-powered devices due to its low power consumption and low voltage operation.
