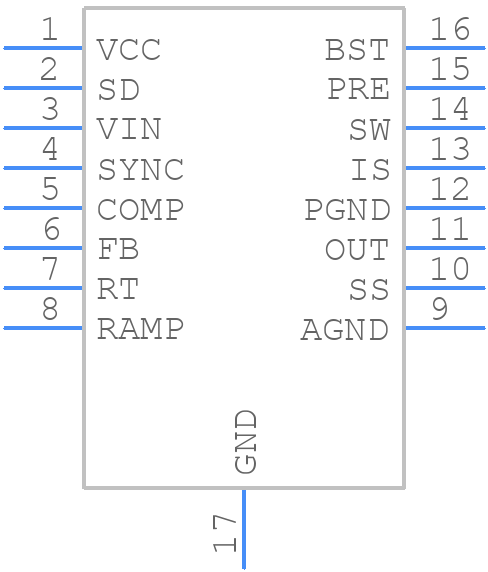

Part Symbol
-

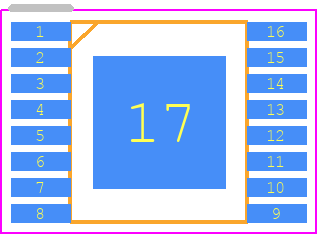

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM25575MH/NOPB by Texas Instruments
Results Overview of LM25575MH/NOPB by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LM25575MH/NOPB Information
LM25575MH/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM25575MH/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
17AH9124
|
Newark | Buck Reg, 1.5A, 16Tssop, Powerwise, Topology:Buck (Step Down), Input Voltage Min:6V, Input Voltage Max:42V, No. Of Outputs:1Outputs, Dc/Dc Converter Ic Case:Htssop, No. Of Pins:16Pins, Output Current:1.5A, Output Voltage Rohs Compliant: Yes |Texas Instruments LM25575MH/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 126 |
|
$2.4500 | Buy Now |
|
DISTI #
LM25575MH/NOPB-ND
|
DigiKey | IC REG BUCK ADJ 1.5A 16HTSSOP Min Qty: 1 Lead time: 12 Weeks Container: Tube |
3713 In Stock |
|
$3.3256 / $5.9100 | Buy Now |
|
DISTI #
926-LM25575MH/NOPB
|
Mouser Electronics | Switching Voltage Regulators 42V 1.5A STEP-DOWN S WITCHING REG A 926-LM25575MHX/NOPB RoHS: Compliant | 3924 |
|
$3.4200 / $5.9100 | Buy Now |
|
DISTI #
J56:1989_00014706
|
Arrow Electronics | Conv DC-DC 6V to 42V Synchronous Step Down Single-Out 1.23V to 40V 1.5A 16-Pin HTSSOP EP Tube RoHS: Compliant Min Qty: 92 Package Multiple: 92 Lead time: 12 Weeks Date Code: 2318 | Europe - 184 |
|
$3.1390 / $3.6530 | Buy Now |
|
DISTI #
V99:2348_07269413
|
Arrow Electronics | Conv DC-DC 6V to 42V Synchronous Step Down Single-Out 1.23V to 40V 1.5A 16-Pin HTSSOP EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2318 | Americas - 69 |
|
$2.9880 / $4.3450 | Buy Now |
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
DISTI #
LM25575MH/NOPB
|
TME | PMIC, DC/DC converter, Uin: 6÷42VDC, Uout: 1.23÷40VDC, 1.5A, SMD Min Qty: 1 | 251 |
|
$3.9100 / $5.9100 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 1379 |
|
RFQ | |
|
|
New Advantage Corporation | IC-25575 REG BUCK 1.5A BOOST INV ADJ 16HTSSOP RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 861 |
|
$9.2700 / $10.0400 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 1.5A 16HTSSOP | 15310 |
|
$1.3000 / $1.6791 | Buy Now |
Part Details for LM25575MH/NOPB
LM25575MH/NOPB CAD Models
LM25575MH/NOPB Part Data Attributes
|
|
LM25575MH/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM25575MH/NOPB
Texas Instruments
6V to 42V, 1.5A Step-Down DC/DC Switching Regulator 16-HTSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | HTSSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPRERATES IN ADJUSTABLE MODE FROM 1.225V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 6 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.5 A | |
| Output Voltage-Max | 40 V | |
| Output Voltage-Min | 1.23 V | |
| Output Voltage-Nom | 7.15 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for LM25575MH/NOPB
This table gives cross-reference parts and alternative options found for LM25575MH/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM25575MH/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM25575MHX/NOPB | Texas Instruments | $2.8069 | 6V to 42V, 1.5A Step-Down DC/DC Switching Regulator 16-HTSSOP -40 to 125 | LM25575MH/NOPB vs LM25575MHX/NOPB |
| LM25575MH/NOPB | National Semiconductor Corporation | Check for Price | IC 2.5 A SWITCHING REGULATOR, 545 kHz SWITCHING FREQ-MAX, PDSO16, TSSOP-16, Switching Regulator or Controller | LM25575MH/NOPB vs LM25575MH/NOPB |
| LM25575MH | Texas Instruments | Check for Price | 6V to 42V, 1.5A Step-Down DC/DC Switching Regulator 16-HTSSOP -40 to 125 | LM25575MH/NOPB vs LM25575MH |
| LM25575MHX | Texas Instruments | Check for Price | 2.5A SWITCHING REGULATOR, 545kHz SWITCHING FREQ-MAX, PDSO16, TSSOP-16 | LM25575MH/NOPB vs LM25575MHX |
| LM25575MH | National Semiconductor Corporation | Check for Price | IC 2.5 A SWITCHING REGULATOR, 545 kHz SWITCHING FREQ-MAX, PDSO16, TSSOP-16, Switching Regulator or Controller | LM25575MH/NOPB vs LM25575MH |
| LM25575MHX/NOPB | National Semiconductor Corporation | Check for Price | IC 2.5 A SWITCHING REGULATOR, 545 kHz SWITCHING FREQ-MAX, PDSO16, TSSOP-16, Switching Regulator or Controller | LM25575MH/NOPB vs LM25575MHX/NOPB |
LM25575MH/NOPB Frequently Asked Questions (FAQ)
-
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 6.3V. However, the optimal value may vary depending on the specific application and input voltage.
-
To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient output capacitor (e.g., 10uF to 22uF), and maintain a minimum load current of 1mA. Additionally, ensure that the input voltage is within the recommended range.
-
The maximum ambient temperature range for the LM25575MH/NOPB is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures.
-
Yes, the LM25575MH/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is suitable for use in harsh environments.
-
To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation does not exceed the maximum rating of 1.5W.
