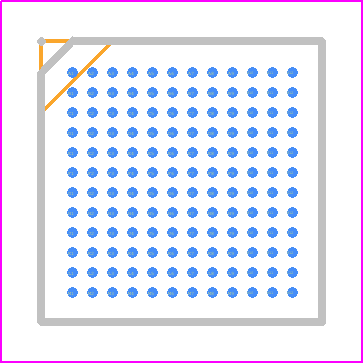

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LC4256ZE-5MN144C by Lattice Semiconductor Corporation
Results Overview of LC4256ZE-5MN144C by Lattice Semiconductor Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LC4256ZE-5MN144C Information
LC4256ZE-5MN144C by Lattice Semiconductor Corporation is a Programmable Logic Device.
Programmable Logic Devices are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for LC4256ZE-5MN144C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55AJ0982
|
Newark | Ispmach 4000Ze, 1.8V, 256Mc, Zero Power Rohs Compliant: Yes |Lattice Semiconductor LC4256ZE-5MN144C RoHS: Compliant Min Qty: 360 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$25.7100 | Buy Now |
|
DISTI #
220-1028-ND
|
DigiKey | IC CPLD 256MC 5.8NS 144CSBGA Min Qty: 1800 Lead time: 20 Weeks Container: Tray | Temporarily Out of Stock |
|
$23.6250 | Buy Now |
|
DISTI #
842-LC4256ZE-5MN144C
|
Mouser Electronics | CPLD - Complex Programmable Logic Devices 256MC 108 I/O Lw Pwr 1.8V 5.8NS RoHS: Compliant | 0 |
|
$24.5700 | Order Now |
|
|
Vyrian | Programmable ICs | 1224 |
|
RFQ |
Part Details for LC4256ZE-5MN144C
LC4256ZE-5MN144C CAD Models
LC4256ZE-5MN144C Part Data Attributes
|
|
LC4256ZE-5MN144C
Lattice Semiconductor Corporation
Buy Now
Datasheet
|
Compare Parts:
LC4256ZE-5MN144C
Lattice Semiconductor Corporation
EE PLD, 5.8ns, 256-Cell, CMOS, PBGA144, 7 X 7 MM, 0.5 MM PITCH, LEAD FREE, CSBGA-144
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LATTICE SEMICONDUCTOR CORP | |
| Part Package Code | BGA | |
| Package Description | 7 X 7 MM, 0.5 MM PITCH, LEAD FREE, CSBGA-144 | |
| Pin Count | 144 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Lattice Semiconductor | |
| Additional Feature | YES | |
| Clock Frequency-Max | 149 MHz | |
| In-System Programmable | YES | |
| JESD-30 Code | S-PBGA-B144 | |
| JESD-609 Code | e1 | |
| JTAG BST | YES | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Dedicated Inputs | 4 | |
| Number of I/O Lines | 108 | |
| Number of Inputs | 112 | |
| Number of Macro Cells | 256 | |
| Number of Outputs | 108 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | ||
| Organization | 4 DEDICATED INPUTS, 108 I/O | |
| Output Function | MACROCELL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA144,12X12,20 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programmable Logic Type | EE PLD | |
| Propagation Delay | 5.8 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max | 1.9 V | |
| Supply Voltage-Min | 1.7 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7 mm |
Alternate Parts for LC4256ZE-5MN144C
This table gives cross-reference parts and alternative options found for LC4256ZE-5MN144C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LC4256ZE-5MN144C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LC4256ZE-7MN144C | Lattice Semiconductor Corporation | Check for Price | EE PLD, 7.5ns, 256-Cell, CMOS, PBGA144, 7 X 7 MM, 0.5 MM PITCH, LEAD FREE, CSBGA-144 | LC4256ZE-5MN144C vs LC4256ZE-7MN144C |
LC4256ZE-5MN144C Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCCIO first, followed by VCCINT, and then VREF. This ensures that the internal voltage regulators are powered up correctly.
-
The LC4256ZE-5MN144C has a dedicated clock tree network. Use the ispLEVER Classic software to implement a clock tree that meets your design requirements.
-
The maximum frequency of operation for the LC4256ZE-5MN144C is 250 MHz. However, the actual frequency of operation may be limited by the design and the system clock requirements.
-
The LC4256ZE-5MN144C has a dedicated reset pin. Implement a reset strategy that meets your design requirements, such as using a reset controller or a power-on reset circuit.
-
The power consumption of the LC4256ZE-5MN144C depends on the operating frequency, voltage, and design complexity. Refer to the datasheet for typical power consumption values and use the Lattice Power Calculator to estimate power consumption for your specific design.
