Inductors / Fixed Inductors / LBR2012T1R0M
Datasheets
LBR2012T1R0M by: TAIYO YUDEN

General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT

Part Details for LBR2012T1R0M by TAIYO YUDEN

Results Overview of LBR2012T1R0M by TAIYO YUDEN

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LBR2012T1R0M Information

LBR2012T1R0M by TAIYO YUDEN is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for LBR2012T1R0M

Part # Distributor Description Stock Price Buy
DISTI # 24T3287
Newark Inductor, Wire-Wound, 1Uh, 0.4A, 0805, Inductance:1Μh, Dc Resistance Max:0.091Ohm, Self Resonant Frequency:100Mhz, Dc Current Rating:400Ma, Inductor Case/Package:0805 [2012 Metric], Product Range:Lb Series, Core Material:Ferrite Rohs Compliant: Yes |Taiyo Yuden LBR2012T1R0M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 25
  • 1 $0.0130
  • 25 $0.0130
  • 50 $0.0130
  • 100 $0.0130
$0.0130 Buy Now
DISTI # 09P3807
Newark Inductor, Wire-Wound, 1Uh, 0.4A, 0805, Full Reel, Inductance:1Μh, Dc Resistance Max:0.091Ohm, Self Resonant Frequency:100Mhz, Dc Current Rating:400Ma, Inductor Case/Package:0805 [2012 Metric], Product Range:Lb Series Rohs Compliant: Yes |Taiyo Yuden LBR2012T1R0M RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0640
  • 5,000 $0.0570
  • 10,000 $0.0460
  • 20,000 $0.0400
  • 30,000 $0.0370
  • 50,000 $0.0330
$0.0330 / $0.0640 Buy Now
DISTI # 587-2042-1-ND
DigiKey FIXED IND 1UH 400MA 91 MOHM SMD Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 16054
In Stock
  • 1 $0.1000
  • 10 $0.0720
  • 100 $0.0591
  • 1,000 $0.0486
  • 3,000 $0.0443
  • 6,000 $0.0417
  • 9,000 $0.0403
  • 15,000 $0.0386
  • 21,000 $0.0375
  • 30,000 $0.0364
  • 75,000 $0.0337
  • 150,000 $0.0318
  • 300,000 $0.0313
$0.0313 / $0.1000 Buy Now
DISTI # LBR2012T1R0M
Avnet Americas Power Inductor (SMD), 1 uH, ? 20%, 400 mA, Unshielded, 400 mA, 2mm x 1.25mm x 1.25mm - Tape and Reel (Alt: LBR2012T1R0M) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel 21000
  • 3,000 $0.0314
  • 6,000 $0.0310
  • 12,000 $0.0307
  • 18,000 $0.0301
  • 24,000 $0.0294
$0.0294 / $0.0314 Buy Now
DISTI # 24T3287
Avnet Americas Power Inductor (SMD), 1 uH, ? 20%, 400 mA, Unshielded, 400 mA, 2mm x 1.25mm x 1.25mm - Product that comes on tape, but is not reeled (Alt: 24T3287) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 32 Weeks, 3 Days Container: Ammo Pack 25 Partner Stock
  • 1 $0.0700
$0.0700 Buy Now
DISTI # LBR2012T1R0M
Avnet Americas Power Inductor (SMD), 1 uH, ? 20%, 400 mA, Unshielded, 400 mA, 2mm x 1.25mm x 1.25mm - Tape and Reel (Alt: LBR2012T1R0M) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.0329
  • 6,000 $0.0324
  • 12,000 $0.0319
  • 18,000 $0.0314
  • 24,000 $0.0309
$0.0309 / $0.0329 Buy Now
DISTI # 963-LBR2012T1R0M
Mouser Electronics Power Inductors - SMD 963-LSQEA201212T1R0M RPLCMT PN 0805 1uH 91mOhms 20%Tol 400mA RoHS: Compliant 41022
  • 1 $0.1000
  • 10 $0.0720
  • 100 $0.0600
  • 1,000 $0.0490
  • 3,000 $0.0450
  • 6,000 $0.0390
  • 9,000 $0.0370
$0.0370 / $0.1000 Buy Now
Onlinecomponents.com Inductor General Purpose Chip Wirewound 1uH 20% 7.96MHz Ferrite 0.4A 0.091Ohm DCR 0805 T/R RoHS: Compliant 12001 In Stock
  • 3,000 $0.0357
  • 6,000 $0.0333
  • 12,000 $0.0313
  • 24,000 $0.0305
$0.0305 / $0.0357 Buy Now
DISTI # 88765464
Verical Inductor General Purpose Wirewound 1uH 20% 7.96MHz Ferrite 0.4A 0.091Ohm DCR 0805 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 1404 Americas - 12000
  • 3,000 $0.0464
  • 6,000 $0.0433
  • 12,000 $0.0407
  • 24,000 $0.0397
$0.0397 / $0.0464 Buy Now
Bristol Electronics   4545
RFQ
Bristol Electronics   Min Qty: 45 3000
  • 45 $0.1125
  • 135 $0.0563
  • 890 $0.0338
$0.0338 / $0.1125 Buy Now
Quest Components 1 ELEMENT, 1 UH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD 2400
  • 1 $0.1500
  • 134 $0.0450
  • 1,112 $0.0300
$0.0300 / $0.1500 Buy Now
Quest Components 1 ELEMENT, 1 UH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD 1323
  • 1 $0.5000
  • 26 $0.2250
  • 223 $0.1500
$0.1500 / $0.5000 Buy Now
Quest Components 1 ELEMENT, 1 UH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD 8
  • 1 $0.1950
$0.1950 Buy Now
DISTI # LBR2012T1R0M
TTI Power Inductors - SMD 963-LSQEA201212T1R0M RPLCMT PN 0805 1uH 91mOhms 20%Tol 400mA pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel Americas - 3000
In Stock
  • 3,000 $0.0337
  • 6,000 $0.0330
  • 9,000 $0.0324
  • 15,000 $0.0317
  • 24,000 $0.0311
  • 30,000 $0.0305
$0.0305 / $0.0337 Buy Now
DISTI # LBR2012T1R0M
IBS Electronics INDUCTOR GENERAL PURPOSE CHIP WIREWOUND 1UH 20% 7.96MHZ FERRITE 0.4A 0.091OHM DCR 0805 T/R Min Qty: 1 Package Multiple: 1 1
  • 1 $0.0511
  • 3,000 $0.0464
  • 6,000 $0.0433
  • 12,000 $0.0407
  • 24,000 $0.0396
$0.0396 / $0.0511 Buy Now
LCSC 400mA 1uH 20% 0805 Power Inductors ROHS 230
  • 5 $0.0851
  • 50 $0.0685
  • 150 $0.0602
  • 500 $0.0539
  • 3,000 $0.0489
  • 6,000 $0.0464
$0.0464 / $0.0851 Buy Now
Master Electronics Inductor General Purpose Chip Wirewound 1uH 20% 7.96MHz Ferrite 0.4A 0.091Ohm DCR 0805 T/R RoHS: Compliant 12001 In Stock
  • 3,000 $0.0357
  • 6,000 $0.0333
  • 12,000 $0.0313
  • 24,000 $0.0305
$0.0305 / $0.0357 Buy Now

Part Details for LBR2012T1R0M

LBR2012T1R0M CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

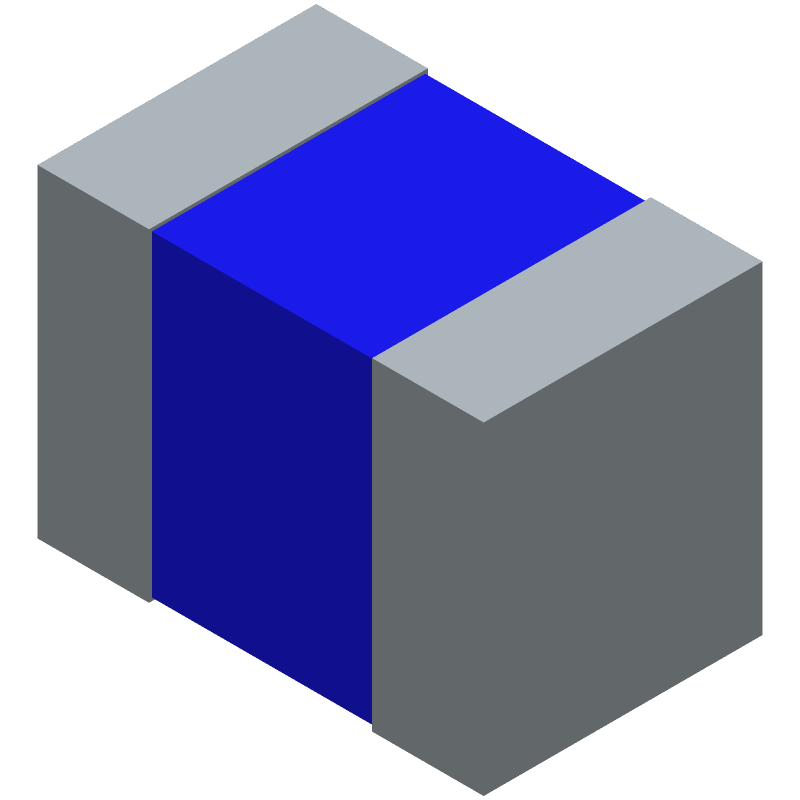

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LBR2012T1R0M Part Data Attributes

Parametric Data
LBR2012T1R0M TAIYO YUDEN
Buy Now Datasheet
Compare Parts:
LBR2012T1R0M TAIYO YUDEN General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TAIYO YUDEN CO LTD
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 7 Weeks
Samacsys Manufacturer TAIYO YUDEN
Case/Size Code 0805
Construction Rectangular
Core Material FERRITE
DC Resistance 0.091 Ω
Inductance-Nom (L) 1 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Height 1.25 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, EMBOSSED, 7 INCH
Rated Current-Max 0.4 A
Self Resonance Frequency 100 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Special Feature DCR IS MEASURED AT 30% TOLERANCE
Surface Mount YES
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 7.96 MHz
Tolerance 20%

Alternate Parts for LBR2012T1R0M

This table gives cross-reference parts and alternative options found for LBR2012T1R0M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LBR2012T1R0M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LSQEA201212T1R0M TAIYO YUDEN Check for Price General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 0805, CHIP LBR2012T1R0M vs LSQEA201212T1R0M
LLQEA201212T1R0M TAIYO YUDEN Check for Price General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 0805, CHIP LBR2012T1R0M vs LLQEA201212T1R0M

LBR2012T1R0M Related Parts

LBR2012T1R0M Frequently Asked Questions (FAQ)

  • The recommended land pattern for LBR2012T1R0M is a rectangular pad with a size of 1.2mm x 0.8mm, with a solder mask opening of 0.5mm x 0.5mm.

  • While LBR2012T1R0M is rated for operation up to 125°C, it's not recommended for continuous use above 105°C. If your application requires high-temperature operation, consider using a different component or consulting with a TAIYO YUDEN representative.

  • Handle the component by the edges to prevent damage to the termination. Avoid touching the component's surface, as the oils from your skin can affect solderability. Use a vacuum pickup or tweezers to handle the component during assembly.

  • The MSL of LBR2012T1R0M is 3, which means it can be exposed to a relative humidity of 60% or less at 30°C for up to 168 hours without being baked.

  • While LBR2012T1R0M is designed to withstand some vibration, it's not recommended for applications with extreme vibration. If your application requires high vibration resistance, consider using a different component or consulting with a TAIYO YUDEN representative.
