L717SDA15P Information
L717SDA15P by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for L717SDA15P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12AC7684
|
Newark | D Sub Conn, Plug, 15Pos, Solder, No. Of Contacts:15Contacts, Gender:Plug, Contact Termination Type:Solder Cup, D Sub Shell Size:Da, Product Range:Sd Series, Connector Body Material:Steel Body, Contact Material:Brass, Contact Rohs Compliant: Yes |Amphenol Communications Solutions L717SDA15P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.6070 / $1.0600 | Buy Now |
|
DISTI #
01M1182
|
Newark | D Sub Connector, Standard, 15 Position, Plug, No. Of Contacts:15Contacts, Gender:Plug, Contact Termination Type:Solder, D Sub Shell Size:Da, Product Range:17S Series, Connector Body Material:Steel Body, Contact Material:Brass Rohs Compliant: Yes |Amphenol Communications Solutions L717SDA15P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.7050 / $1.1500 | Buy Now |
|
|
Onlinecomponents.com | Conn D-Subminiature PIN 15 POS 1.38mm Solder Cup ST Panel Mount 15 Terminal 1 Port RoHS: Compliant |
664 In Stock |
|
$0.5420 / $0.7140 | Buy Now |
|
DISTI #
L717SDA15P
|
TME | D-Sub, PIN: 15, plug, male, for cable, soldering, Contacts: brass, 5A Min Qty: 1 | 0 |
|
$0.5100 / $0.7620 | RFQ |
|
DISTI #
CONIO2547
|
Rutronik | 15P D-Sub Male Solder_Cup RoHS: Compliant Min Qty: 50 Package Multiple: 50 Container: Tray |
Stock DE - 3000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.6178 / $0.7046 | Buy Now |
|
|
Master Electronics | Conn D-Subminiature PIN 15 POS 1.38mm Solder Cup ST Panel Mount 15 Terminal 1 Port RoHS: Compliant |
664 In Stock |
|
$0.5420 / $0.7140 | Buy Now |
Part Details for L717SDA15P

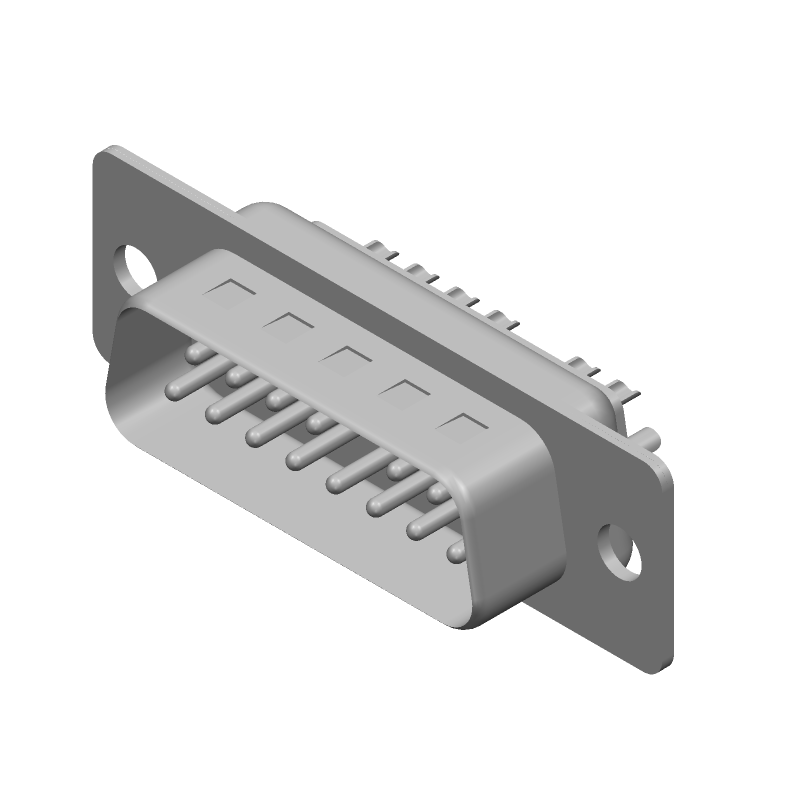

L717SDA15P CAD Models
L717SDA15P Part Data Attributes
|
|
L717SDA15P
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
L717SDA15P
Amphenol Communications Solutions
D-Sub Standard Density Connector, Input Output Connectors, Stamped Signal 3A, Straight Solder Cup, 15 Position Plug, Flash Gold, Bright Tin Shell with Grounding Dimples, 3.05mm (.120in) Clear Hole
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 15 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.494 inch | |
| Body Depth | 0.161 inch | |
| Body Length | 1.543 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Design | PREASSEM CONN | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Pattern | STAGGERED | |
| Contact Resistance | 20 mΩ | |
| Contact Style | RND PIN-SKT | |
| Dielectric Withstanding Voltage | 1000VAC V | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYETHYLENE/POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.109 inch | |
| Mating Contact Row Spacing | 0.112 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | HOLE 0.12 | |
| Mounting Option 2 | LOCKING | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Plating Thickness | FLASH inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Shell Finish | TIN | |
| Shell Material | STEEL | |
| Shell Size | 2/A | |
| Terminal Length | 0.122 inch | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 15 | |
| UL Flammability Code | 94V-0 |
L717SDA15P Frequently Asked Questions (FAQ)
-
The recommended torque value for the L717SDA15P connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks, and 5-7 in-lbs (0.6-0.8 Nm) for the jack screws.
-
Yes, the L717SDA15P connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
-
The maximum cable diameter that can be used with the L717SDA15P connector is 0.315 inches (8 mm).
-
No, the L717SDA15P connector is not designed for high-power applications. It is intended for use in low-power, high-frequency applications such as antennas, GPS, and Wi-Fi.
-
The L717SDA15P connector is designed to be compatible with other connectors that meet the same industry standards, such as the SMA connector. However, compatibility should be verified before use.
