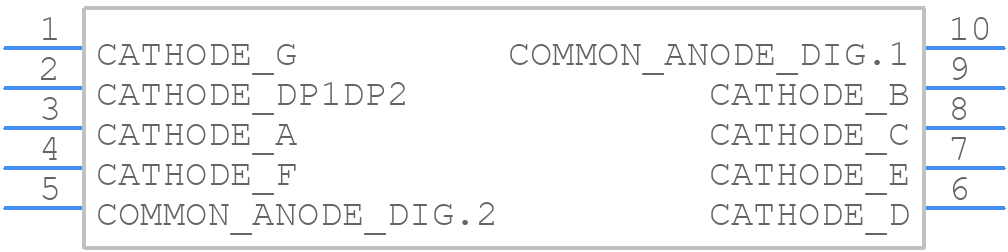

Part Symbol
-

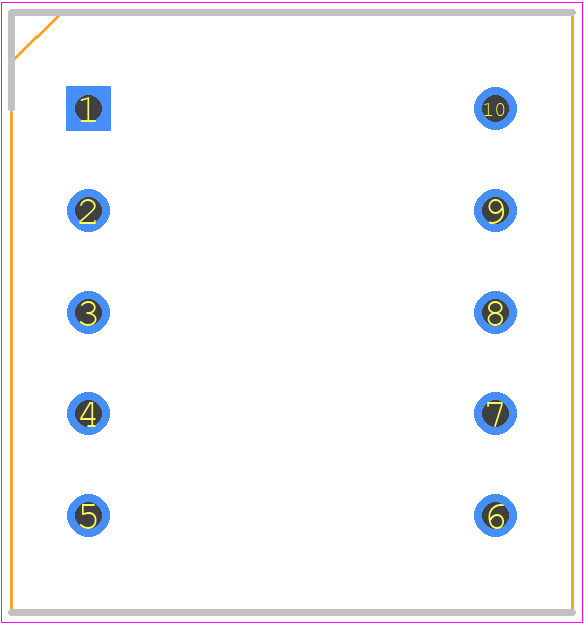

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KW2-361ASB by Lucky Light Electronics Co Ltd
Results Overview of KW2-361ASB by Lucky Light Electronics Co Ltd
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
KW2-361ASB Information
KW2-361ASB by Lucky Light Electronics Co Ltd is an LED Display.
LED Displays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for KW2-361ASB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
KW2-361ASB
|
TME | Display: LED, 7-segment, 9.2mm, 0.36", No.char: 2, red, 1÷1.8mcd Min Qty: 1 | 0 |
|
$0.5000 / $0.9250 | RFQ |
Part Details for KW2-361ASB
KW2-361ASB CAD Models
KW2-361ASB Part Data Attributes
|
|
KW2-361ASB
Lucky Light Electronics Co Ltd
Buy Now
Datasheet
|
Compare Parts:
KW2-361ASB
Lucky Light Electronics Co Ltd
7 Seg Numeric LED Display, 2-Character, 9.2mm
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | LUCKY LIGHT ELECTRONICS CO LTD | |
| Reach Compliance Code | unknown | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Luckylight | |
| Color@Wavelength | Red | |
| Configuration | Common Anode | |
| Display Height | 9.2 mm | |
| Forward Voltage-Max | 2.4 V | |
| Number of Characters | 2 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | 7 SEG NUMERIC LED DISPLAY | |
| Peak Wavelength | 660 nm |
