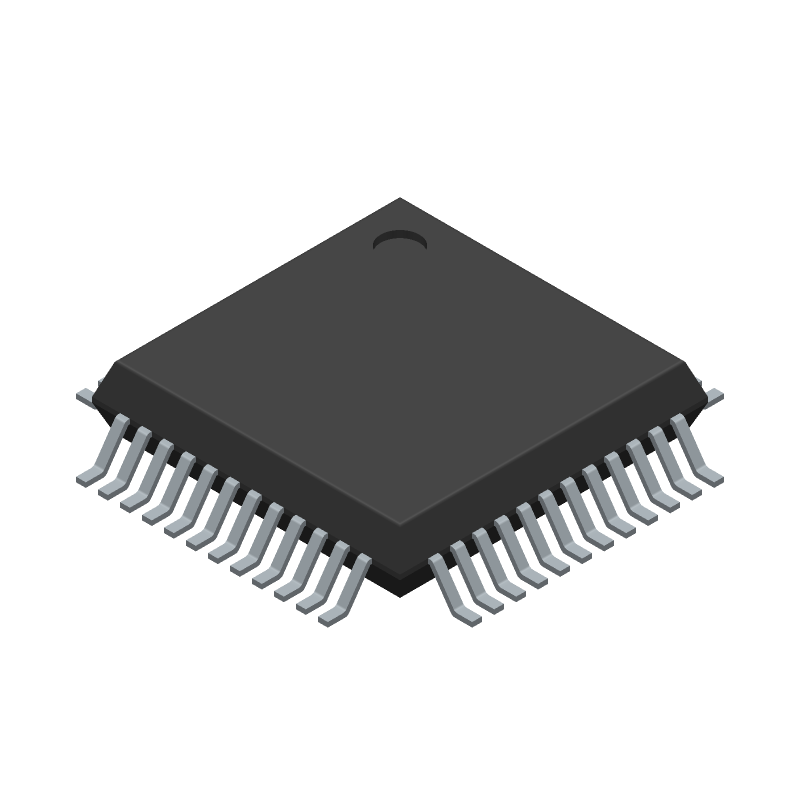

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KSZ8091MLXCA by Microchip Technology Inc
Results Overview of KSZ8091MLXCA by Microchip Technology Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
KSZ8091MLXCA Information
KSZ8091MLXCA by Microchip Technology Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for KSZ8091MLXCA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70Y8897
|
Newark | 10/100 Base-Tx Physical Layer Transceiver, Eee, Wol 48 Lqfp 7X7X1.4Mm Tray Rohs Compliant: Yes |Microchip KSZ8091MLXCA RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.3300 | Buy Now |
|
DISTI #
KSZ8091MLXCA-ND
|
DigiKey | IC TRANSCEIVER FULL 48LQFP Min Qty: 1 Lead time: 7 Weeks Container: Tray |
233 In Stock |
|
$1.3500 / $1.6900 | Buy Now |
|
DISTI #
KSZ8091MLXCA
|
Avnet Americas | 10/100 BASE-TX PHYSICAL LAYER TRANSCEIVER EEE WOL - Trays (Alt: KSZ8091MLXCA) RoHS: Not Compliant Min Qty: 500 Package Multiple: 250 Lead time: 7 Weeks, 0 Days Container: Tray | 0 |
|
$1.2900 / $1.6900 | Buy Now |
|
DISTI #
998-KSZ8091MLXCA
|
Mouser Electronics | Ethernet ICs 10Base-T/100Base PhysLayerTrnscvr RoHS: Compliant | 9884 |
|
$1.3500 / $1.6900 | Buy Now |
|
DISTI #
KSZ8091MLXCA
|
Microchip Technology Inc | 10/100 BASE-TX Physical Layer Transceiver, EEE, WOL, LQFP, Projected EOL: 2039-10-19 COO: Taiwan ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tray |
10526 Alternates Available |
|
$1.1300 / $1.6900 | Buy Now |
|
|
Onlinecomponents.com | Transceiver - Ethernet Protocol - Full Duplex - 3.3V Supply - 48-LQFP (7x7) Package - Surface Mount. RoHS: Compliant |
3000 In Stock 10500 Factory Stock |
|
$1.4800 / $2.2600 | Buy Now |
|
DISTI #
69108171
|
Verical | PHY 10Mbps/100Mbps 1.8V/2.5V/3.3V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 30 Package Multiple: 10 Date Code: 2311 | Americas - 3000 |
|
$1.9975 / $2.8480 | Buy Now |
|
DISTI #
KSZ8091MLXCA
|
TME | IC: transceiver, 10/100Base-T, LQFP48, 0÷70°C, No.of transc: 1 Min Qty: 1 | 0 |
|
$1.5100 / $1.8600 | RFQ |
|
DISTI #
KSZ8091MLXCA
|
IBS Electronics | S-PQFP-G48 KSZ8091 TRAY ETHERNET INTERFACE RECEIVER 3.3V 7MM 0C~70C Min Qty: 10 Package Multiple: 1 | 3000 |
|
$1.9240 / $2.9380 | Buy Now |
|
|
NAC | 10/100 BASE-TX Physical Layer Transceiver, EEE, WOL - Package: 48 LQFP 7x7x1.4mm TRAY RoHS: Compliant Min Qty: 250 Package Multiple: 250 Container: Tray | 0 |
|
$1.3500 / $1.6600 | Buy Now |
Part Details for KSZ8091MLXCA
KSZ8091MLXCA CAD Models
KSZ8091MLXCA Part Data Attributes
|
|
KSZ8091MLXCA
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
KSZ8091MLXCA
Microchip Technology Inc
DATACOM, ETHERNET TRANSCEIVER, PQFP48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | 7 X 7 MM, LEAD FREE, LQFP-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Data Rate | 100000 Mbps | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Telecom IC Type | ETHERNET TRANSCEIVER | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 7 mm |
