Switches / Special Switches / KSC421V270SHLFS
Datasheets

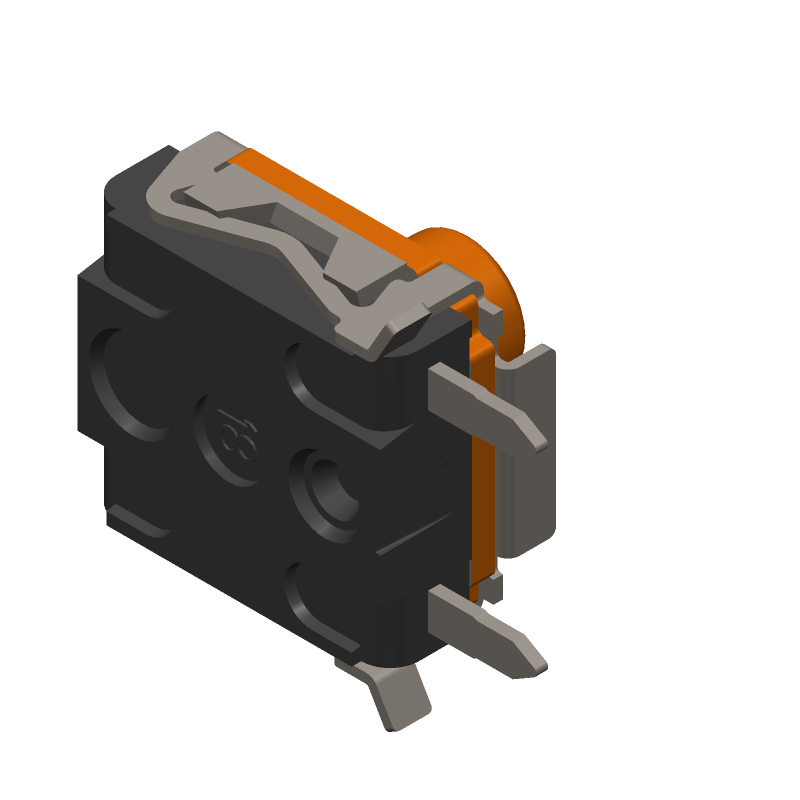

KSC421V270SHLFS by:

PUSHBUTTON SWITCH,RIGHT ANGLE,SPST,PC TAIL TERMINAL

Part Details for KSC421V270SHLFS by C&K

Results Overview of KSC421V270SHLFS by C&K

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

KSC421V270SHLFS Information

KSC421V270SHLFS by C&K is a Special Switch.
Special Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for KSC421V270SHLFS

Part # Distributor Description Stock Price Buy
DISTI # 03AM1214
Newark Tactile Switches Side Actuated Sealed Tact Switch Rohs Compliant: Yes |C&k Components KSC421V270SHLFS RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Bulk 38787
  • 500 $0.8480
  • 1,000 $0.7410
$0.7410 / $0.8480 Buy Now
DISTI # 65697720
Verical Switch Tactile OFF Mom SPST Extended Round Button Solder 0.05A 32VDC 1VA 300000Cycles 2N SMD T/R RoHS: Compliant Min Qty: 800 Package Multiple: 800 Americas - 35200
  • 800 $0.6600
  • 1,600 $0.6500
  • 2,400 $0.6400
  • 11,200 $0.6300
$0.6300 / $0.6600 Buy Now
DISTI # 28988404
Verical Switch Tactile OFF Mom SPST Extended Round Button Solder 0.05A 32VDC 1VA 300000Cycles 2N SMD T/R RoHS: Compliant Min Qty: 800 Package Multiple: 800 Americas - 2400
  • 800 $0.6600
  • 1,600 $0.6500
  • 2,400 $0.6400
  • 11,200 $0.6300
$0.6300 / $0.6600 Buy Now
Future Electronics Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle Min Qty: 800 Package Multiple: 800 19200
null
  • 800 $0.5650
  • 1,600 $0.5550
  • 2,400 $0.5500
  • 3,200 $0.5450
  • 4,000 $0.5350
$0.5350 / $0.5650 Buy Now
DISTI # 000000000006041155
Sager Tactile Switches Side Actuated Sealed Tact Switch Min Qty: 800 0
  • 800 $0.8267
$0.8267 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 800 15200
  • 800 $0.9417
  • 15,200 $0.8692
$0.8692 / $0.9417 Buy Now

Part Details for KSC421V270SHLFS

KSC421V270SHLFS Part Data Attributes

Parametric Data
KSC421V270SHLFS C&K
Buy Now Datasheet
Compare Parts:
KSC421V270SHLFS C&K PUSHBUTTON SWITCH,RIGHT ANGLE,SPST,PC TAIL TERMINAL
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.70.00
Samacsys Manufacturer C & K COMPONENTS
Actuator Angle
Actuator Length 0.091 inch
Actuator Travel 0.508 mm
Actuator Type PUSHBUTTON
Center Contact Material SILVER
Center Contact Plating SILVER
Contact Current(DC)-Max 0.05 A
Contact (DC) Max Power Rating R Load 1VA@32VDC
Contact (DC) Max Rating R Load 0.05A@32VDC
Contact Resistance 0.1 mΩ
Contact Voltage(DC)-Max 32 V
Dielectric Withstand Volts 250VRMS V
Electrical Life 300000 Cycle(s)
End Contact Material SILVER
End Contact Plating SILVER
Insulation Resistance 10000000 Ω
Mounting Feature SURFACE MOUNT-STRAIGHT
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPST
Terminal Finish SILVER/NICKEL
Terminal Material SILVER
Termination Type SOLDER

Alternate Parts for KSC421V270SHLFS

This table gives cross-reference parts and alternative options found for KSC421V270SHLFS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of KSC421V270SHLFS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
KSC421JCLTLFS C&K Check for Price Tactile Switch KSC421V270SHLFS vs KSC421JCLTLFS
KSC441GST2LFS C&K Check for Price PUSHBUTTON SWITCH,STRAIGHT,SPST,SURFACE MOUNT TERMINAL KSC421V270SHLFS vs KSC441GST2LFS
KSC461GST1LFS C&K Check for Price PUSHBUTTON SWITCH,STRAIGHT,SPST,SURFACE MOUNT TERMINAL KSC421V270SHLFS vs KSC461GST1LFS
KSC441GST1LFS C&K Check for Price PUSHBUTTON SWITCH,STRAIGHT,SPST,SURFACE MOUNT TERMINAL KSC421V270SHLFS vs KSC441GST1LFS
KSC461GST2LFS C&K Check for Price PUSHBUTTON SWITCH,STRAIGHT,SPST,SURFACE MOUNT TERMINAL KSC421V270SHLFS vs KSC461GST2LFS
KSC401G70SHLFS C&K Check for Price Tactile Switch KSC421V270SHLFS vs KSC401G70SHLFS
KSC401GLFSB C&K Check for Price Tactile Switch KSC421V270SHLFS vs KSC401GLFSB

KSC421V270SHLFS Related Parts

KSC421V270SHLFS Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is between 250°C to 260°C for a maximum of 5 seconds.

  • Yes, the KSC421V270SHLFS is compatible with lead-free soldering processes.

  • The maximum operating frequency of the KSC421V270SHLFS is 50 MHz.

  • Yes, the KSC421V270SHLFS is rated for operation up to 125°C, making it suitable for high-temperature applications.

  • Yes, the KSC421V270SHLFS is RoHS (Restriction of Hazardous Substances) compliant.
