Diodes / Bridge Rectifier Diodes / KBU6K-E4/51
Datasheets
KBU6K-E4/51 by:

Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, CASE KBU, 4 PIN

Part Details for KBU6K-E4/51 by Vishay Intertechnologies

Results Overview of KBU6K-E4/51 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

KBU6K-E4/51 Information

KBU6K-E4/51 by Vishay Intertechnologies is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for KBU6K-E4/51

Part # Distributor Description Stock Price Buy
DISTI # 60AC3722
Newark Diode, Bridge Rect, 1-Ph, 800V, 6A, Kbu, No. Of Phases:Single Phase, Repetitive Reverse Voltage Vrrm Max:800V, Forward Current If(Av):6A, Bridge Rectifier Case Style:Kbu, Forward Voltage Vf Max:1V, No. Of Pins:4Pins, Operating Rohs Compliant: Yes |Vishay KBU6K-E4/51 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 72
  • 1 $4.8400
  • 10 $3.5000
  • 25 $3.3900
  • 50 $3.3800
  • 100 $3.3700
  • 500 $3.2300
$3.2300 / $4.8400 Buy Now
DISTI # KBU6K-E4/51
Avnet Americas Bridge Rectifier, Single Phase, 800 V, 6 A, KBU, 4 Pins, 1 V - Bulk (Alt: KBU6K-E4/51) RoHS: Compliant Min Qty: 250 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk 0
  • 250 $2.1458
  • 500 $2.0934
  • 1,000 $2.0682
  • 1,500 $2.0436
  • 2,000 $2.0195
$2.0195 / $2.1458 Buy Now
DISTI # 625-KBU6K-E4
Mouser Electronics Bridge Rectifiers 6.0 Amp 800 Volt RoHS: Compliant 377
  • 1 $4.7200
  • 10 $3.8500
  • 100 $3.1200
  • 500 $2.7700
  • 1,000 $2.3700
  • 2,500 $2.2300
$2.2300 / $4.7200 Buy Now
DISTI # V99:2348_18777130
Arrow Electronics Diode Rectifier Bridge Single 800V 6A 4-Pin Case KBU Tray Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2318 Americas - 385
  • 1 $3.6430
  • 10 $2.7170
  • 25 $2.6320
  • 50 $2.6060
  • 100 $2.5800
  • 500 $2.5540
$2.5540 / $3.6430 Buy Now
DISTI # V36:1790_18777130
Arrow Electronics Diode Rectifier Bridge Single 800V 6A 4-Pin Case KBU Tray Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2327 Americas - 23
  • 1 $3.1310
  • 10 $2.4930
  • 25 $2.4300
  • 50 $2.4080
  • 100 $2.3840
  • 500 $2.3600
$2.3600 / $3.1310 Buy Now
DISTI # 68016471
Verical Diode Rectifier Bridge Single 800V 6A 4-Pin Case KBU Tray Min Qty: 3 Package Multiple: 1 Date Code: 2318 Americas - 385
  • 3 $3.6430
  • 10 $2.7170
  • 25 $2.6320
  • 50 $2.6060
  • 100 $2.5800
  • 500 $2.5540
$2.5540 / $3.6430 Buy Now
DISTI # 75725891
Verical Diode Rectifier Bridge Single 800V 6A 4-Pin Case KBU Tray Min Qty: 3 Package Multiple: 1 Date Code: 2327 Americas - 23
  • 3 $3.1310
  • 10 $2.4930
  • 25 $2.4300
  • 50 $2.4080
  • 100 $2.3840
  • 500 $2.3600
$2.3600 / $3.1310 Buy Now
DISTI # KBU6K-E4/51
TTI Bridge Rectifiers 6.0 Amp 800 Volt pbFree: Pb-Free Min Qty: 500 Package Multiple: 250 Container: Tray Americas - 0
  • 500 $2.0900
$2.0900 Buy Now
DISTI # KBU6K-E4/51
TME Bridge rectifier: single-phase, Urmax: 800V, If: 6A, Ifsm: 250A Min Qty: 1 0
  • 1 $4.2200
  • 5 $3.7900
  • 25 $3.3400
  • 100 $3.0200
  • 250 $2.8000
$2.8000 / $4.2200 RFQ
DISTI # KBU6K-E4/51
EBV Elektronik Bridge Rectifier Single Phase 800 V 6 A KBU 4 Pins 1 V (Alt: KBU6K-E4/51) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Diodes 973
RFQ

Part Details for KBU6K-E4/51

KBU6K-E4/51 CAD Models

  • Part Symbol

    Part Symbol

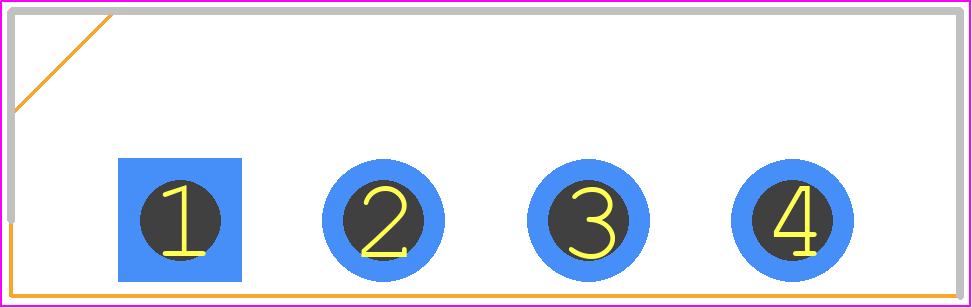

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

KBU6K-E4/51 Part Data Attributes

Parametric Data
KBU6K-E4/51 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
KBU6K-E4/51 Vishay Intertechnologies Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, CASE KBU, 4 PIN
Rohs Code Yes
Part Life Cycle Code End Of Life
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description ROHS COMPLIANT, PLASTIC, CASE KBU, 4 PIN
Reach Compliance Code not_compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer Vishay
Breakdown Voltage-Min 800 V
Case Connection ISOLATED
Configuration BRIDGE, 4 ELEMENTS
Diode Element Material SILICON
Diode Type BRIDGE RECTIFIER DIODE
Forward Voltage-Max (VF) 1 V
JESD-30 Code R-PSFM-T4
JESD-609 Code e4
Non-rep Pk Forward Current-Max 250 A
Number of Elements 4
Number of Phases 1
Number of Terminals 4
Operating Temperature-Max 150 °C
Operating Temperature-Min -50 °C
Output Current-Max 6 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 800 V
Surface Mount NO
Terminal Finish SILVER
Terminal Form THROUGH-HOLE
Terminal Position SINGLE

Alternate Parts for KBU6K-E4/51

This table gives cross-reference parts and alternative options found for KBU6K-E4/51. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of KBU6K-E4/51, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
KBU6K PanJit Semiconductor Check for Price Bridge Rectifier Diode, 6A, 800V V(RRM) KBU6K-E4/51 vs KBU6K
PBU606 Diodes Incorporated Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, PLASTIC, PBU, 4 PIN KBU6K-E4/51 vs PBU606
Part Number Manufacturer Composite Price Description Compare
RS606 Rectron Semiconductor Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-6, 4 PIN KBU6K-E4/51 vs RS606
RS606 International Semiconductor Inc Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon KBU6K-E4/51 vs RS606
KBU6K Diotec Semiconductor AG Check for Price Bridge Rectifier Diode, 1 Phase, 4.2A, 800V V(RRM), Silicon, 23.50 X 19.30 MM, 5.70 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 KBU6K-E4/51 vs KBU6K
CBR6M-L080 Central Semiconductor Corp Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, CASE DM, 4 PIN KBU6K-E4/51 vs CBR6M-L080
CBR6MF-L080LEADFREE Central Semiconductor Corp Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, KBU6K-E4/51 vs CBR6MF-L080LEADFREE
KBU6K SEMIKRON Check for Price Bridge Rectifier Diode, 1 Phase, 4.2A, 800V V(RRM), Silicon, 23.50 X 5.70 MM, 19.30 MM HEIGHT, PLASTIC PACKAGE-4 KBU6K-E4/51 vs KBU6K
CBR6MF-L080 Central Semiconductor Corp Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, KBU6K-E4/51 vs CBR6MF-L080
KBU6K Promax-Johnton Electronic Corporation Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, PLASTIC, KBU, 4 PIN KBU6K-E4/51 vs KBU6K
PBU606 Lite-On Semiconductor Corporation Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, PLASTIC PACKAGE-4 KBU6K-E4/51 vs PBU606
RS606 Micro Commercial Components Check for Price Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, RS-6, 4 PIN KBU6K-E4/51 vs RS606

KBU6K-E4/51 Related Parts

KBU6K-E4/51 Frequently Asked Questions (FAQ)

  • The recommended storage temperature range for the KBU6K-E4/51 is -40°C to 125°C.

  • Yes, the KBU6K-E4/51 is designed for high-reliability applications and meets the requirements of AEC-Q101, making it suitable for automotive and other high-reliability industries.

  • The maximum surge current rating for the KBU6K-E4/51 is 100 A for a duration of 10 ms.

  • Yes, the KBU6K-E4/51 is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.

  • The typical thermal resistance of the KBU6K-E4/51 is 1.5°C/W.
