KAE06LGGT Information
KAE06LGGT by E-Switch Inc is an Other Switch.
Other Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for KAE06LGGT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61W9721
|
Newark | Tu Rohs Compliant: Yes |E-Switch KAE06LGGT RoHS: Compliant Min Qty: 1008 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.3200 / $1.5300 | Buy Now |
|
DISTI #
EG5032-ND
|
DigiKey | SWITCH SLIDE DIP SPST 0.025A 24V Min Qty: 1008 Lead time: 13 Weeks Container: Tube | Temporarily Out of Stock |
|
$1.0506 | Buy Now |
|
DISTI #
612-KAE06LGGT
|
Mouser Electronics | DIP Switches / SIP Switches 6 Position Extended Gold Gullwing | 0 |
|
$1.0200 / $1.0500 | Order Now |
|
DISTI #
74897460
|
RS | DIP Switch, SPST, 6 Pos., 25 mA, 24V DC, Surf. Mt., Gull Wing, KAE Series Min Qty: 1008 Package Multiple: 1 Lead time: 21 Weeks, 0 Days Container: Bulk | 0 |
|
$0.9300 | RFQ |
Part Details for KAE06LGGT

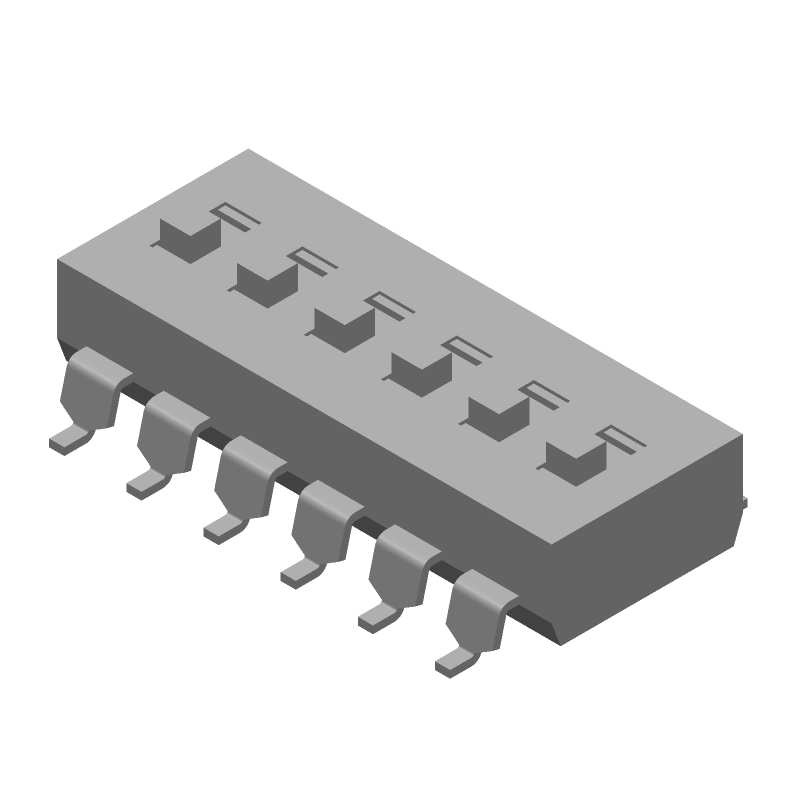

KAE06LGGT CAD Models
KAE06LGGT Part Data Attributes
|
|
KAE06LGGT
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
KAE06LGGT
E-Switch Inc
Switch, SPST, Horizontal, 0.025A, 24VDC, Surface Mount-straight
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Angle | ||
| Actuator Length | 0.028 inch | |
| Actuator Type | SLIDE | |
| Additional Feature | TUBE PACKAGING | |
| Body Breadth | 6.2992 mm | |
| Body Height | 3.7592 mm | |
| Body Length or Diameter | 16.2814 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD | |
| Contact Current(DC)-Max | 0.025 A | |
| Contact (DC) Max Rating R Load | 0.025A@24VDC | |
| Contact Resistance | 0.05 mΩ | |
| Contact Voltage(DC)-Max | 24 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 2000 Cycle(s) | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Positions | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Surface Mount | NO | |
| Switch Action | HORIZONTAL | |
| Switch Function | SPST | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
