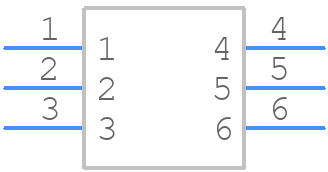

Part Symbol
-

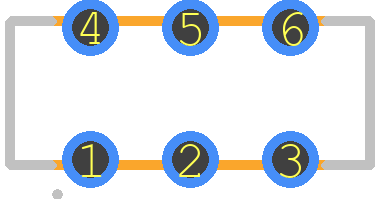

Footprint
-

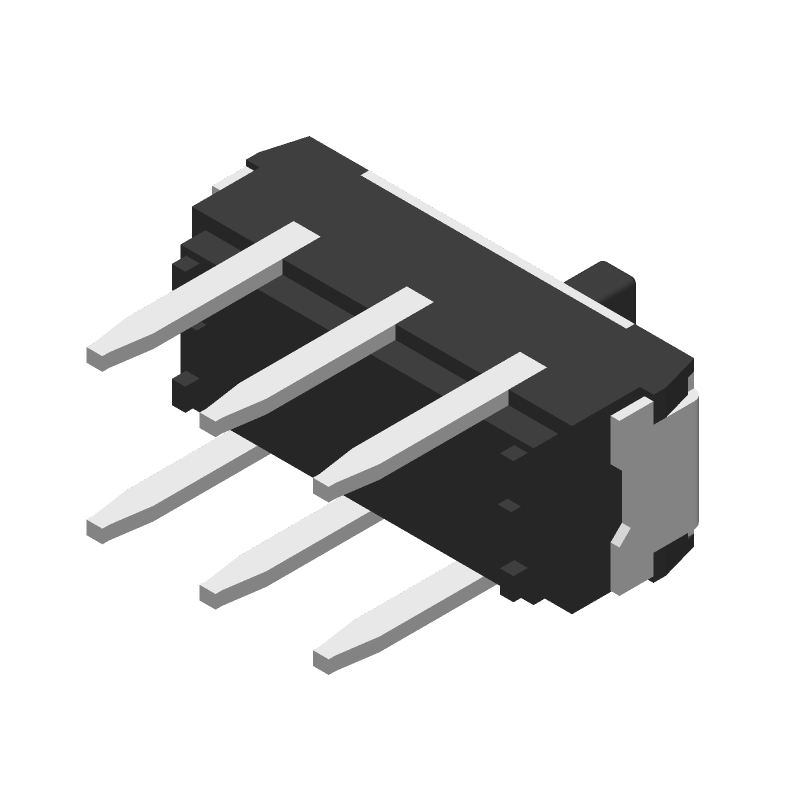

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for JS202011CQN by C&K
Results Overview of JS202011CQN by C&K
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
JS202011CQN Information
JS202011CQN by C&K is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for JS202011CQN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2320018
|
Farnell | SWITCH, DPDT, 0.6A, 6VDC, THT RoHS: Compliant Min Qty: 10 Lead time: 13 Weeks, 1 Days Container: Each | 24871 |
|
$0.5575 / $0.6424 | Buy Now |
|
DISTI #
401-2001-ND
|
DigiKey | SWITCH SLIDE DPDT 300MA 6V Min Qty: 1 Lead time: 11 Weeks Container: Bulk |
12431 In Stock |
|
$0.3888 / $0.7500 | Buy Now |
|
DISTI #
611-JS202011CQN
|
Mouser Electronics | Slide Switches DPDT THRU HOLE .3A RoHS: Compliant | 0 |
|
$0.3610 / $0.5200 | Order Now |
|
DISTI #
71173974
|
RS | Switch, Slide, DPDT, ON-ON, Top Slide, 300mA, 6VDC, ThruHole, PC Pin Min Qty: 1 Package Multiple: 1 Container: Bulk | 547 |
|
$0.8000 / $1.0700 | Buy Now |
|
|
Future Electronics | JS Series DPDT On-On PC Pin Through Hole Subminiature Slide Switch RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Tray | 3600Tray |
|
$0.3450 / $0.3850 | Buy Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 200 Package Multiple: 1 | 0 |
|
$0.4270 | Buy Now |
|
DISTI #
88151650
|
Verical | Switch Slide ON ON DPDT Top Slide 0.3A 6VDC PC Pins Thru-Hole Bulk RoHS: Compliant Min Qty: 100 Package Multiple: 50 Date Code: 2110 | Americas - 27950 |
|
$0.3810 / $0.6301 | Buy Now |
|
DISTI #
87837387
|
Verical | Switch Slide ON ON DPDT Top Slide 0.3A 6VDC PC Pins Thru-Hole Bulk RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2512 | Americas - 3000 |
|
$0.5897 | Buy Now |
|
DISTI #
87334591
|
Verical | Switch Slide ON ON DPDT Top Slide 0.3A 6VDC PC Pins Thru-Hole Bulk RoHS: Compliant Min Qty: 123 Package Multiple: 1 | Americas - 2682 |
|
$0.6375 | Buy Now |
|
DISTI #
87022242
|
Verical | Switch Slide ON ON DPDT Top Slide 0.3A 6VDC PC Pins Thru-Hole Bulk RoHS: Compliant Min Qty: 123 Package Multiple: 1 | Americas - 1000 |
|
$0.3800 / $0.5100 | Buy Now |
Part Details for JS202011CQN
JS202011CQN CAD Models
JS202011CQN Part Data Attributes
|
|
JS202011CQN
C&K
Buy Now
Datasheet
|
Compare Parts:
JS202011CQN
C&K
SLIDE SWITCH, DPDT, LATCHED, 0.3A, 6VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Color | BLACK | |
| Actuator Length | 0.079 inch | |
| Actuator Material | NYLON | |
| Actuator Type | SLIDE | |
| Additional Feature | LOW PROFILE | |
| Body Breadth | 3.6 mm | |
| Body Height | 3.5 mm | |
| Body Length or Diameter | 9 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.3 A | |
| Contact (DC) Max Rating R Load | .3A@6VDC | |
| Contact Resistance | 0.07 mΩ | |
| Contact Voltage(DC)-Max | 6 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 5000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | SILVER | |
| Housing Material | NYLON | |
| Insulation Resistance | 100000000 Ω | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Positions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PCB Hole Count | 6 | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | SILVER | |
| Terminal Length | 0.118 inch | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
JS202011CQN Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the JS202011CQN is -20°C to 70°C.
-
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants. Avoid using chemicals, solvents, or liquids, as they may damage the switch.
-
The maximum switching frequency for the JS202011CQN is 10 cycles per second.
-
Yes, the JS202011CQN is designed to withstand vibrations up to 10G (10-2000Hz) and can be used in high-vibration environments.
-
Ensure the switch is properly seated and the actuator is fully depressed to ensure a proper seal. Additionally, apply a small amount of silicone-based lubricant to the O-ring to enhance sealing.
